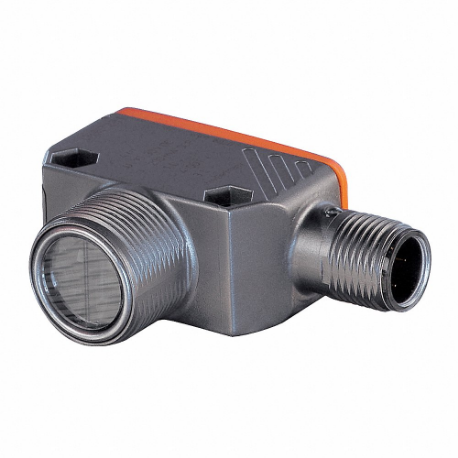

IFM OGS280 Photoelectric Sensor, 10 to 30V DC, Transmitter, 4-Pin M12 Male Connector
Item: CR4LULModel: OGS280Cross Ref: 35T426
7 In Stock
Ships within 2 days via
10.00% off
€114.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photoelectric Sensor |
| Body Material | Zinc |
| Circuit Type | Transmitter |
| Dc Supply Voltage Rating | 10-30V DC |
| Depth | 52 mm |
| Display Qty | 1 |
| Electrical Connection | M12 |
| Electrical Connection Size | M12 |
| Electrical Installation Type | Direct Connector |
| Emitted Sensor Light | Red Light |
| Features | Pmma Lens, Reverse Polarity Protection |
| Height | 37 mm |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP65, IP67 |
| Length | 36.9 mm |
| Lens Alignment | Side Lens |
| Light Source | LED |
| Light Spot Dimensions Refer To | At Maximum Range |
| Load Current - Maximum | 17 mA |
| Max. Sensing Distance | 20m |
| Min. Object Size | 800 mm |
| Minimum Object Size | 800 mm Dia. Light Spot |
| Nema Enclosure Rating | No Enclosure |
| Nema Rating | Not Rated |
| Number Of Pins | 4 |
| Operating Frequency | 1000 Hz |
| Operating Mode | Selectable Light On/Dark On |
| Operating Temperature - Maximum | 140°F |
| Operating Temperature - Minimum | -13°F |
| Output Circuit | N/A For Transmitters |
| Overall Depth | 36 mm |
| Overall Height | 53 mm |
| Overall Width | 19 mm |
| Power Requirement | 10-30V DC |
| Required Master Port Type | A |
| Response Time | 2.5 ms |
| Reverse Polarity Protection | Yes |
| Sensing Method | Through Beam |
| Sensor Body Style | Rectangular |
| Sensor Face Orientation | Right Angle |
| Sensor Switching Mode | Selectable Light On/Dark On |
| Shape | Right Angle |
| Sio Mode | No |
| Standards | Ce, Culus, Ukca |
| Supply Voltage | 10-30V DC |
| Supply Voltage Type | Dc Only |
| Switching Frequency | 1 kHz |
| Through Beam Sensor Component | Photoelectric Sensor Transmitter |
| Transmitter / Receiver | Transmitter |
| Type Of Light | Red Light |
| Width | 18 mm |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Sensing Method | Max. Sensing Distance | Body Material | Ip Rating | Depth | Operating Mode | Circuit Type | Operating Frequency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
OGH581 | Diffuse | 200 mm | Zinc Alloy | - | 52 mm | Selectable Light On/Dark On | NPN | 1000 Hz | €203.95 | |
 |
OGE282 | Through Beam | 20m | Zinc | IP65, IP67 | 52 mm | Dark On | NPN | 1000 Hz | €158.04 | |
 |
OGH282 | Diffuse | 100 mm | Zinc | IP65, IP67 | 52 mm | Light On | NPN | 1000 Hz | €195.63 | |
|
OGH283 | Diffuse | 200 mm | Zinc | IP65, IP67 | 52 mm | Light On | - | 1000 Hz | €195.65 | |
|
OGH580 | Diffuse | 200 mm | Zinc | IP65, IP67 | 52 mm | Selectable Light On/Dark On | PNP | 1000 Hz | €198.63 | |
 |
OGP280 | Polarized Retroreflective | 4m | Zinc | IP65, IP67 | 52 mm | Light On | PNP | 1000 Hz | €180.61 | |
|
OGE280 | Through Beam Receiver | 20m | - | - | 52 mm | Dark On | PNP | 1000 Hz | €161.06 |
