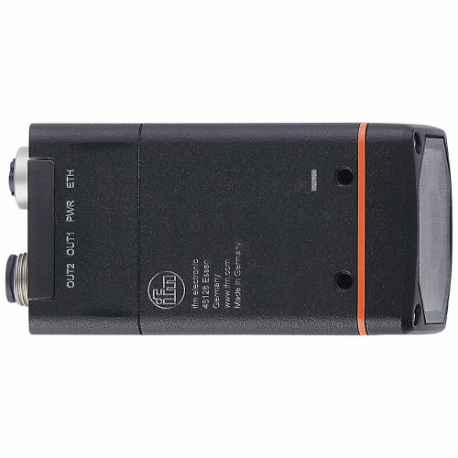

IFM O2I502 Multicode Reader, Wide Angle, Red Light, Ethernet, Pnp/Npn
Item: CR4LQMModel: O2I502Cross Ref: 801TE8
7 In Stock
Ships within 2 days via
10.00% off
€2,894.89 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Reader |
| Communication Interface | Ethernet |
| Depth | 45 mm |
| Dimensions | 86 mm x 45 mm x 45 mm |
| Electrical Design | PNP/NPN |
| Features | Integrated Memory Stick, Several Codes And Text Lines Simultaneously |
| Field Of View | 184 mm x 138 mm @ 300 mm, 25 mm x 19 mm @ 35 mm, 304 mm x 228 mm @ 500 mm, 604 mm x 453 mm @ 1000 mm |
| Field Of View @ Operating Distance | 184 mm x 138 mm @ 300 mm, 25 mm x 19 mm @ 35 mm, 304 mm x 228 mm @ 500 mm, 604 mm x 453 mm @ 1000 mm |
| Housing Finish | Diecast Zinc Powder Coat |
| Housing Material | Diecast Zinc Powder Coated |
| Image Resolution | 1280 px x 960 px |
| Ip Rating | IP65 |
| Legible Fonts | Document, Dot Print, Industrial, OCR A, OCR B, Pharma, Semi, Universal |
| Length | 86 mm |
| Lens Type | Wide Angle |
| Light Type | Red Light |
| Max. Ambient Temp. | 50°C |
| Maximum Reading Rate | 40 Hz |
| Min. Ambient Temp. | -10°C |
| Minimum Operating Distance | 35 mm |
| Number Of Digital Inputs | 1 |
| Number Of Digital Outputs | 2 |
| Operating Voltage | 18-30V DC |
| Overall Depth | 45 mm |
| Overall Length | 86 mm |
| Overall Width | 45 mm |
| Parameter Setting | Teach Button, Via PC With IFM Vision Assistant |
| Protection Features | IP65, Overload Protection, Protection Class III, Reverse Polarity Protection, Short Circuit Protection |
| Protocol | Ethernet/IP, TCP/IP |
| Transmission Rate | 10 Mbps, 100 Mbps |
| Wavelength | 617 N-m |
Shipping Info:
| Ship weight (kg) | 0.6 |
| Ship height (cm) | 4.5 |
| Ship length (cm) | 8.6 |
| Ship width (cm) | 4.5 |
| Country of Origin | DE |
Product Variants
| Product | Model | Light Type | Max. Ambient Temp. | Operating Voltage | Overall Width | Housing Material | Current Consumption | Wavelength | Lens Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

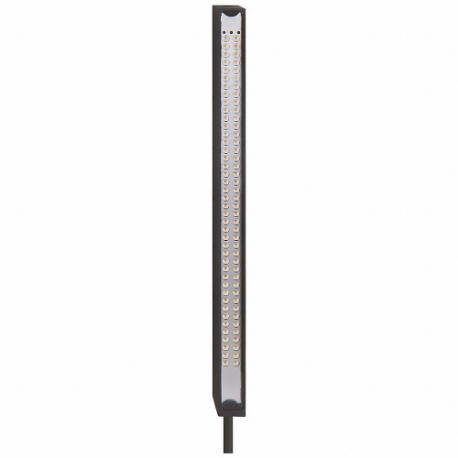

O2D924 | Red Light | 55°C | 24V DC | 13 mm | Aluminum Black Anodized | 460 mA | 617 N-m | - | €1,245.14 | |
|
O2D926 | White Light | 55°C | 24V DC | 13 mm | Aluminum Black Anodized | 265 mA | - | - | €1,245.14 | |
|
O2D925 | Infrared Light | 55°C | 24V DC | 13 mm | Aluminum Black Anodized | 415 mA | 875 N-m | - | €1,245.14 | |
 |
O2D922 | Infrared Light | 55°C | 24V DC | 13 mm | Aluminum Black Anodized | 185 mA | 875 N-m | - | €998.39 | |
|
O2D921 | Red Light | 55°C | 24V DC | 13 mm | Aluminum Black Anodized | - | 617 N-m | - | €998.39 | |
|
O2I501 | Infrared Light | 50°C | 18-30V DC | 45 mm | Diecast Zinc Powder Coated | 400 mA | 850 N-m | Standard | €3,216.54 | |
|
O2I511 | Infrared Light | 50°C | 18-30V DC | 45 mm | Diecast Zinc Powder Coated | 600 mA | 850 N-m | Standard | €3,482.74 |
