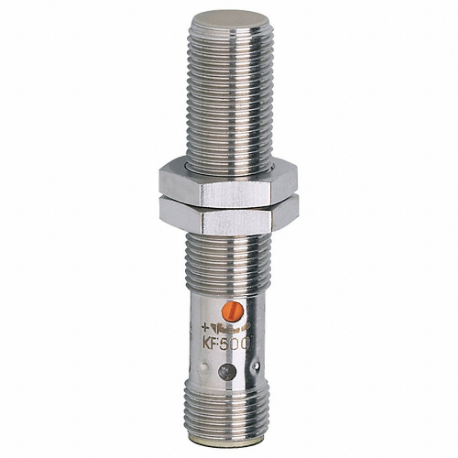

IFM KF5001 Capacitive Proximity Sensor, 10 to 36 VDC, 50 Hz Proximity Sensor Op Freq, PNP
Item: CR4LXMModel: KF5001Cross Ref: 801T80
7 In Stock
Ships within 2 days via
10.00% off
€376.70 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Proximity Sensor |
| Ac Supply Voltage Rating | Not Rated |
| Body Material | Stainless Steel |
| Body Stainless Steel Grade | Grade 316L |
| Case Material | Stainless Steel |
| Dc Supply Voltage Rating | 10-36V DC |
| Display Qty | 1 |
| Electrical Connection | M12 |
| Electrical Installation Type | Direct Connector |
| Factory Setting Sensing Range | 4 |
| Features | Potentiometer |
| Housing | Threaded Type |
| Includes | (2) Lock Nuts |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP65 |
| Length | 59.8 mm |
| Max. Detecting Distance | 6 mm |
| Maximum Sensing Distance | 6 mm |
| Mounting | Flush Mountable |
| Number Of Pins | 3 |
| Operating Temp. Range | -25°C to +70°C |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Output Circuit | PNP |
| Output Circuit Contact Form | No |
| Output Circuit Current - Maximum | 100 mA |
| Output Circuit Type | PNP |
| Output Circuit Voltage - Maximum | 2.5V DC |
| Output Mode | No |
| Overload Protection | Yes |
| Proximity Sensing Method | Capacitive |
| Proximity Sensor Dia. | 12 mm |
| Proximity Sensor Output Circuit Type | PNP |
| Reverse Polarity Protection | Yes |
| Sensing Distance - Minimum | 1 mm |
| Sensing Face Shielding | Shielded |
| Sensing Method | Capacitive |
| Sensing Range Adjustable | Yes |
| Sensor Body Style | Cylindrical |
| Sensor Diameter | 12 mm |
| Sensor Height | 60 mm |
| Short-circuit Proof | Yes |
| Supply Voltage | 10-36V DC |
| Thread Size | M12 |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Max. Detecting Distance | Ip Rating | Number Of Wires | Output Mode | Proximity Sensor Dia. | Proximity Sensing Method | Sensing Method | Shielded / Unshielded | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
IIS229 | 22 mm | IP65, IP66, IP67, IP68, IP69K | 3 | No | 30 mm | Inductive | Inductive | Unshielded | €139.22 | |
 |
IIS244 | 15 mm | IP65, IP66, IP67, IP68, IP69K | 3 | No | 30 mm | Inductive | Inductive | Shielded | €143.74 | |
 |
IIS228 | 15 mm | IP65, IP66, IP67, IP68, IP69K | 3 | No | 30 mm | Inductive | Inductive | Shielded | €139.22 | |
 |
IIS248 | 15 mm | IP65, IP66, IP67, IP68, IP69K | 3 | NC | 30 mm | Inductive | Inductive | Shielded | €139.23 | |
|
IIS235 | 15 mm | IP65, IP66, IP67, IP68, IP69K | 3 | NC | 30 mm | Inductive | Inductive | Shielded | €139.20 | |
|
IIS237 | 22 mm | IP65, IP66, IP67, IP68, IP69K | 3 | NC | 30 mm | Inductive | Inductive | Unshielded | €139.23 | |
 |
IIS249 | 22 mm | IP65, IP66, IP67, IP68, IP69K | 3 | NC | 30 mm | Inductive | Inductive | Unshielded | €139.23 |
