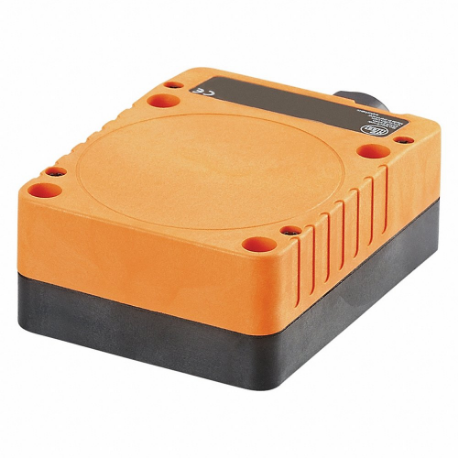

IFM KD3500 Rectangular Proximity Sensor, 24 To 240V AC/Dc, 10 Hz, Pnp/Npn
Item: CR4LYGModel: KD3500Cross Ref: 35T533
7 In Stock
Ships within 2 days via
10.00% off
€596.40 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rectangular Proximity Sensor |
| Ac Supply Voltage Rating | 20-250V AC |
| Basic Proximity Sensor Case Material | Plastic |
| Body Material | PPE |
| Dc Supply Voltage Rating | 20-250V DC |
| Depth | 40 mm |
| Display Qty | 1 |
| Electrical Connection | 7/8" Connector |
| Electrical Installation Type | Direct Connector |
| Factory Setting Sensing Range | 60 |
| Features | Potentiometer |
| Housing | Rectangular |
| Includes | Screwdriver |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP65 |
| Length | 105 mm |
| Max. Detecting Distance | 60 mm |
| Max. Load Current | 200/100 mA |
| Number Of Pins | 3 |
| Number Of Wires | 2 |
| Operating Temperature - Maximum | 176°F |
| Operating Temperature - Minimum | -13°F |
| Output Circuit | NPN, PNP |
| Output Circuit Contact Form | NO, NC |
| Output Circuit Current - Maximum | 200 mA |
| Output Circuit Type | NPN And PNP |
| Output Circuit Voltage - Maximum | 8.5V DC |
| Output Mode | NC/No |
| Overload Protection | No |
| Proximity Sensing Method | Capacitive |
| Proximity Sensor Electrical Connection Type | UN |
| Proximity Sensor Operating Frequency | 10 Hz |
| Proximity Sensor Output Circuit Type | PNP, NPN |
| Reverse Polarity Protection | No |
| Sensing Face Shielding | Unshielded |
| Sensing Method | Capacitive |
| Sensing Range Adjustable | Yes |
| Sensor Body Style | Rectangular |
| Sensor Depth | 40 mm |
| Sensor Height | 105 mm |
| Sensor Width | 80 mm |
| Shielded / Unshielded | Unshielded |
| Short-circuit Proof | No |
| Supply Voltage | 20-250V AC/20-250V DC |
| Thread Size | 7/8"-16 |
| Width | 80 mm |
Shipping Info:
| Ship weight (kg) | 0.31 |
| Ship height (cm) | 4 |
| Ship length (cm) | 10.5 |
| Ship width (cm) | 8 |
| Country of Origin | DE |
Product Variants
| Product | Model | Max. Detecting Distance | Ip Rating | Number Of Wires | Output Mode | Sensing Method | Proximity Sensing Method | Proximity Sensor Output Circuit Type | Shielded / Unshielded | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
IM0020 | 15 mm | IP65 | 2 | NC/No | Inductive | Inductive | Two Wire | - | €313.07 | |
 |

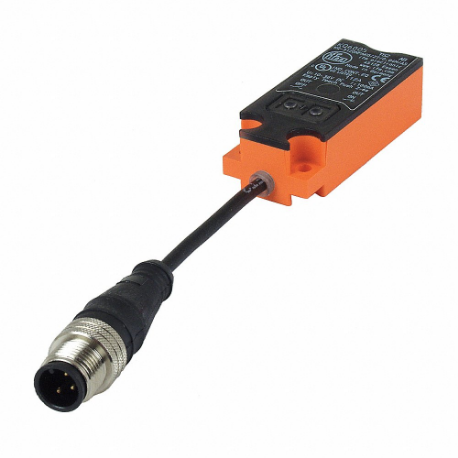

KQ6005 | 12 mm | IP65, IP67, IP69K | - | NC/No | Capacitive | Capacitive | PNP | Unshielded | €224.27 | |
 |

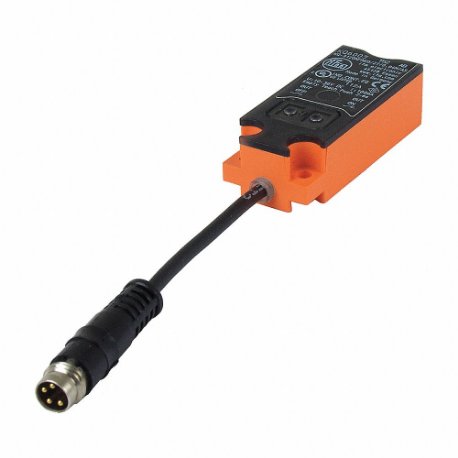

KQ6003 | 12 mm | IP65, IP67, IP69K | - | NC/No | Capacitive | Capacitive | PNP, NPN | Unshielded | €225.58 | |
 |
KQ6001 | 12 mm | IP65, IP67, IP69K | - | NC/No | Capacitive | Capacitive | PNP, NPN | Unshielded | €238.59 | |
 |
IS5001 | 2 mm | IP67 | 3 | No | Inductive | Inductive | PNP | Shielded | €150.51 | |
 |
IM5115 | 20 mm | IP67 | 3 | No | Inductive | Inductive | Three Wire PNP | Shielded | €147.82 | |
|
IM5116 | 35 mm | IP67 | 3 | No | Inductive | Inductive | Three Wire PNP | Unshielded | €147.54 |
