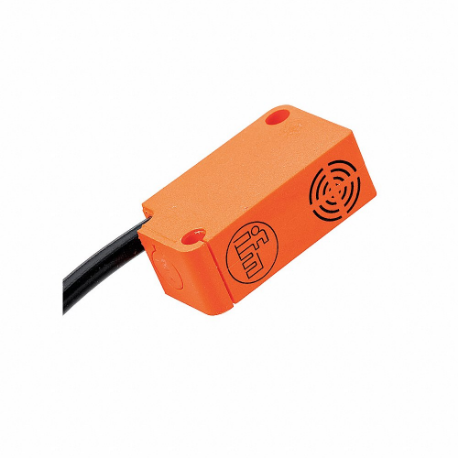

IFM IS5002 Rectangular Proximity Sensor, 10 To 30V DC, 800 Hz, Pnp, 2 mm Max. Detecting Distance
Item: CR4LYJModel: IS5002Cross Ref: 24JY95
7 In Stock
Ships within 2 days via
10.00% off
€142.92 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rectangular Proximity Sensor |
| Ac Supply Voltage Rating | Not Rated |
| Basic Proximity Sensor Case Material | Plastic |
| Body Material | PBT |
| Cable Length | 2m |
| Dc Supply Voltage Rating | 10-30V DC |
| Depth | 16 mm |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Prewired Cable |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP67 |
| Length | 28 mm |
| Max. Detecting Distance | 2 mm |
| Max. Load Current | 200 mA |
| Number Of Wires | 3 |
| Operating Temperature - Maximum | 176°F |
| Operating Temperature - Minimum | -13°F |
| Output Circuit | PNP |
| Output Circuit Contact Form | NC |
| Output Circuit Current - Maximum | 200 mA |
| Output Circuit Type | PNP |
| Output Circuit Voltage - Maximum | 2.5V DC |
| Output Mode | NC |
| Overall Depth | 16 mm |
| Overall Height | 28 mm |
| Overall Width | 10 mm |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Electrical Connection | Cable |
| Proximity Sensor Operating Frequency | 800 Hz |
| Proximity Sensor Output Circuit Type | PNP |
| Sensing Face Shielding | Shielded |
| Sensing Method | Inductive |
| Sensor Body Style | Rectangular |
| Sensor Cable Length | 2m |
| Shielded / Unshielded | Shielded |
| Supply Voltage | 10-30V DC |
| Width | 10 mm |
Shipping Info:
| Ship weight (kg) | 0.43 |
| Ship height (cm) | 1.6 |
| Ship length (cm) | 2.8 |
| Ship width (cm) | 1 |
| Country of Origin | RO |
Product Variants
| Product | Model | Max. Detecting Distance | Ip Rating | Number Of Wires | Output Mode | Sensing Method | Proximity Sensing Method | Proximity Sensor Output Circuit Type | Shielded / Unshielded | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
IM0020 | 15 mm | IP65 | 2 | NC/No | Inductive | Inductive | Two Wire | - | €313.07 | |
 |
KQ6005 | 12 mm | IP65, IP67, IP69K | - | NC/No | Capacitive | Capacitive | PNP | Unshielded | €224.27 | |
 |
KQ6003 | 12 mm | IP65, IP67, IP69K | - | NC/No | Capacitive | Capacitive | PNP, NPN | Unshielded | €225.58 | |
 |
KQ6001 | 12 mm | IP65, IP67, IP69K | - | NC/No | Capacitive | Capacitive | PNP, NPN | Unshielded | €238.59 | |
 |
IS5001 | 2 mm | IP67 | 3 | No | Inductive | Inductive | PNP | Shielded | €150.51 | |
 |
IM5115 | 20 mm | IP67 | 3 | No | Inductive | Inductive | Three Wire PNP | Shielded | €147.82 | |
|
IM5116 | 35 mm | IP67 | 3 | No | Inductive | Inductive | Three Wire PNP | Unshielded | €147.54 |
