IFM II0097 Cylindrical Proximity Sensor, 20 To 250VAC/Dc, 2 Wire, 15 mm | CR4LHU 33HP62

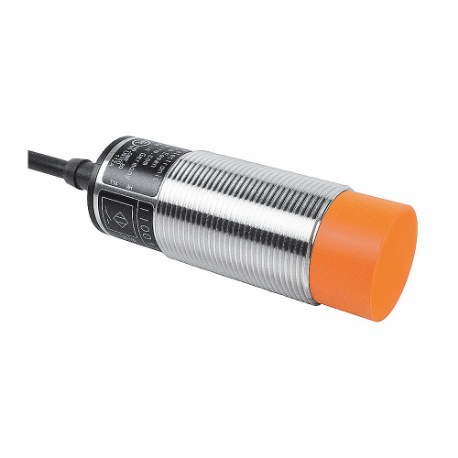

IFM II0097 Cylindrical Proximity Sensor, 20 To 250VAC/Dc, 2 Wire, 15 mm

Item: CR4LHUModel: II0097Cross Ref: 33HP62
7 In Stock

Ships within 2 days via

€182.72
10.00% off
€164.45 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Cylindrical Proximity Sensor
Ac Supply Voltage Rating 20-250V AC
Basic Proximity Sensor Case Material Metal
Body Finish Nickel Plated
Body Material Brass
Cable Length 2m
Case Material Nickel Plated Brass
Dc Supply Voltage Rating 20-250V DC
Description/special Features Non-Flush Mountable
Display Qty 1
Electrical Connection Bare Wire
Electrical Installation Type Prewired Cable
Housing Threaded Type
Includes (2) Lock Nuts
Includes Indicator Lights No Indicator Lights Included
Ip Rating IP67
Length 81 mm
Max. Detecting Distance 15 mm
Max. Load Current 350/100 mA
Nominal Sensor Diameter M30 Threaded
Number Of Wires 2
Operating Temperature - Maximum 176°F
Operating Temperature - Minimum -13°F
Output Circuit 2 Wire AC/DC
Output Circuit Contact Form NC
Output Circuit Current - Maximum 250 mA
Output Circuit Type Ac, DC-Type
Output Circuit Voltage - Maximum 6V DC
Output Mode NC
Overall Height 81 mm
Overload Protection No
Proximity Sensing Method Inductive
Proximity Sensor Dia. 30 mm
Proximity Sensor Electrical Connection Cable
Proximity Sensor Output Circuit Type Two Wire
Reverse Polarity Protection No
Sensing Face Shielding Unshielded
Sensing Method Inductive
Sensor Body Style Cylindrical
Sensor Cable Length 2m
Sensor Diameter 30 mm
Shielded / Unshielded Unshielded
Short-circuit Proof No
Supply Voltage 20-250V AC/20-250V DC

Shipping Info:

Ship weight (kg) 0.2
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelMax. Detecting DistanceIp RatingNumber Of WiresOutput ModeProximity Sensor Dia.Proximity Sensing MethodSensing MethodShielded / UnshieldedPrice
IFM IIS229 Cylindrical Proximity Sensor, 10 To 30VDC, 100 Hz Proximity Sensor Op Freq, 3 Wire Npn | CR4LCK 40KH34 IIS22922 mmIP65, IP66, IP67, IP68, IP69K3No30 mmInductiveInductiveUnshielded€139.22
IFM IIS244 Cylindrical Proximity Sensor, 10 To 30VDC, 100 Hz Proximity Sensor Op Freq, 3 Wire Npn | CR4LCL 40KH82 IIS24415 mmIP65, IP66, IP67, IP68, IP69K3No30 mmInductiveInductiveShielded€143.74
IFM IIS228 Cylindrical Proximity Sensor, 10 To 30VDC, 100 Hz Proximity Sensor Op Freq, 3 Wire Npn | CR4LCM 40KH30 IIS22815 mmIP65, IP66, IP67, IP68, IP69K3No30 mmInductiveInductiveShielded€139.22
IFM IIS248 Cylindrical Proximity Sensor, 10 To 30VDC, 100 Hz Proximity Sensor Op Freq, 3 Wire Npn | CR4LCN 40KH68 IIS24815 mmIP65, IP66, IP67, IP68, IP69K3NC30 mmInductiveInductiveShielded€139.23
IFM IIS235 Cylindrical Proximity Sensor, 10 To 30VDC, 100 Hz Proximity Sensor Op Freq, 3 Wire Npn | CR4LCP 40KH32 IIS23515 mmIP65, IP66, IP67, IP68, IP69K3NC30 mmInductiveInductiveShielded€139.20
IFM IIS237 Cylindrical Proximity Sensor, 10 To 30VDC, 100 Hz Proximity Sensor Op Freq, 3 Wire Npn | CR4LCQ 40KH36 IIS23722 mmIP65, IP66, IP67, IP68, IP69K3NC30 mmInductiveInductiveUnshielded€139.23
IFM IIS249 Cylindrical Proximity Sensor, 10 To 30VDC, 100 Hz Proximity Sensor Op Freq, 3 Wire Npn | CR4LCR 40KH72 IIS24922 mmIP65, IP66, IP67, IP68, IP69K3NC30 mmInductiveInductiveUnshielded€139.23
