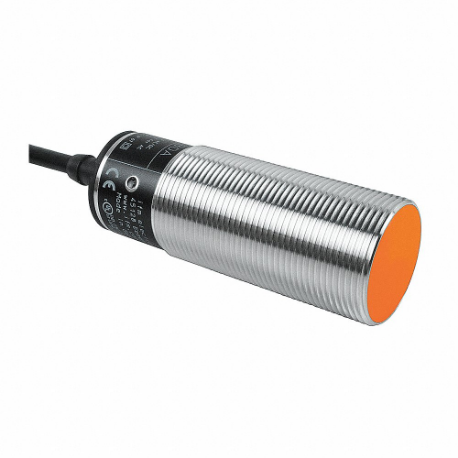

IFM II0096 Cylindrical Proximity Sensor, 20 To 250VAC/Dc, 2 Wire, 10 mm
Item: CR4LHLModel: II0096Cross Ref: 33HP60
7 In Stock
Ships within 2 days via
10.00% off
€183.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cylindrical Proximity Sensor |
| Ac Supply Voltage Rating | 20-250V AC |
| Basic Proximity Sensor Case Material | Metal |
| Body Finish | Bronze Coated |
| Body Material | Brass, Pbt |
| Cable Length | 2m |
| Case Material | Brass White Bronze Coated |
| Dc Supply Voltage Rating | 20-250V DC |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Prewired Cable |
| Housing | Threaded Type |
| Includes | (2) Lock Nuts |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP67 |
| Length | 81 mm |
| Max. Detecting Distance | 10 mm |
| Max. Load Current | 350/100 mA |
| Mounting | Flush Mountable |
| Nominal Sensor Diameter | M30 Threaded |
| Number Of Wires | 2 |
| Operating Temperature - Maximum | 176°F |
| Operating Temperature - Minimum | -13°F |
| Output Circuit | 2 Wire AC/DC |
| Output Circuit Contact Form | NC |
| Output Circuit Current - Maximum | 250 mA |
| Output Circuit Type | Ac, DC-Type |
| Output Circuit Voltage - Maximum | 6V DC |
| Output Mode | NC |
| Overall Height | 81 mm |
| Overload Protection | No |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Dia. | 30 mm |
| Proximity Sensor Electrical Connection | Cable |
| Proximity Sensor Output Circuit Type | Two Wire |
| Reverse Polarity Protection | No |
| Sensing Face Shielding | Shielded |
| Sensing Method | Inductive |
| Sensor Body Style | Cylindrical |
| Sensor Cable Length | 2m |
| Sensor Diameter | 30 mm |
| Shielded / Unshielded | Shielded |
| Short-circuit Proof | No |
| Supply Voltage | 20-250V AC/20-250V DC |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Max. Detecting Distance | Ip Rating | Number Of Wires | Output Mode | Proximity Sensor Dia. | Proximity Sensing Method | Sensing Method | Shielded / Unshielded | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
IIS229 | 22 mm | IP65, IP66, IP67, IP68, IP69K | 3 | No | 30 mm | Inductive | Inductive | Unshielded | €139.22 | |
 |
IIS244 | 15 mm | IP65, IP66, IP67, IP68, IP69K | 3 | No | 30 mm | Inductive | Inductive | Shielded | €143.74 | |
 |
IIS228 | 15 mm | IP65, IP66, IP67, IP68, IP69K | 3 | No | 30 mm | Inductive | Inductive | Shielded | €139.22 | |
 |
IIS248 | 15 mm | IP65, IP66, IP67, IP68, IP69K | 3 | NC | 30 mm | Inductive | Inductive | Shielded | €139.23 | |
|
IIS235 | 15 mm | IP65, IP66, IP67, IP68, IP69K | 3 | NC | 30 mm | Inductive | Inductive | Shielded | €139.20 | |
|
IIS237 | 22 mm | IP65, IP66, IP67, IP68, IP69K | 3 | NC | 30 mm | Inductive | Inductive | Unshielded | €139.23 | |
 |
IIS249 | 22 mm | IP65, IP66, IP67, IP68, IP69K | 3 | NC | 30 mm | Inductive | Inductive | Unshielded | €139.23 |
