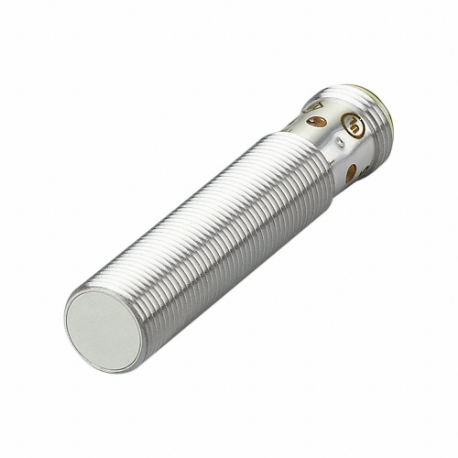

IFM IFS304 Inductive Sensor, 4 mm Range, Flush Mount, Stainless Steel
Item: CR4LNEModel: IFS304Cross Ref: 160G35
7 In Stock
Ships within 2 days via
10.00% off
€127.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Inductive Sensor |
| Ac Supply Voltage Rating | Not Rated |
| Body Material | Stainless Steel |
| Body Stainless Steel Grade | Grade 316L |
| Dc Supply Voltage Rating | 10-30V DC |
| Display Qty | 1 |
| Electrical Connection | M12 |
| Electrical Installation Type | Direct Connector |
| Features | Correction Factor K=1, Shock Resistant, Vibration Resistant |
| Includes | Embedded Software |
| Includes Indicator Lights | No Indicator Lights Included |
| Ip Rating | IP65, IP66, IP67, IP68, IP69K |
| Maximum Sensing Distance | 3 mm |
| Nominal Sensor Diameter | M12 Threaded |
| Operating Temperature - Maximum | 185°F |
| Operating Temperature - Minimum | -40°F |
| Output Circuit | PNP |
| Output Circuit Contact Form | No |
| Output Circuit Current - Maximum | 100 mA |
| Output Circuit Type | PNP |
| Output Circuit Voltage - Maximum | 2.5V DC |
| Overall Height | 60 mm |
| Sensing Distance - Minimum | 0 mm |
| Sensing Method | Inductive |
| Sensor Body Style | Cylindrical |
| Sensor Diameter | 12 mm |
| Supply Voltage | 10-30V DC |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Max. Detecting Distance | Ip Rating | Number Of Wires | Output Mode | Proximity Sensor Dia. | Proximity Sensing Method | Sensing Method | Shielded / Unshielded | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
IIS229 | 22 mm | IP65, IP66, IP67, IP68, IP69K | 3 | No | 30 mm | Inductive | Inductive | Unshielded | €139.22 | |
 |
IIS244 | 15 mm | IP65, IP66, IP67, IP68, IP69K | 3 | No | 30 mm | Inductive | Inductive | Shielded | €143.74 | |
 |
IIS228 | 15 mm | IP65, IP66, IP67, IP68, IP69K | 3 | No | 30 mm | Inductive | Inductive | Shielded | €139.22 | |
 |
IIS248 | 15 mm | IP65, IP66, IP67, IP68, IP69K | 3 | NC | 30 mm | Inductive | Inductive | Shielded | €139.23 | |
|
IIS235 | 15 mm | IP65, IP66, IP67, IP68, IP69K | 3 | NC | 30 mm | Inductive | Inductive | Shielded | €139.20 | |
|
IIS237 | 22 mm | IP65, IP66, IP67, IP68, IP69K | 3 | NC | 30 mm | Inductive | Inductive | Unshielded | €139.23 | |
 |
IIS249 | 22 mm | IP65, IP66, IP67, IP68, IP69K | 3 | NC | 30 mm | Inductive | Inductive | Unshielded | €139.23 |
