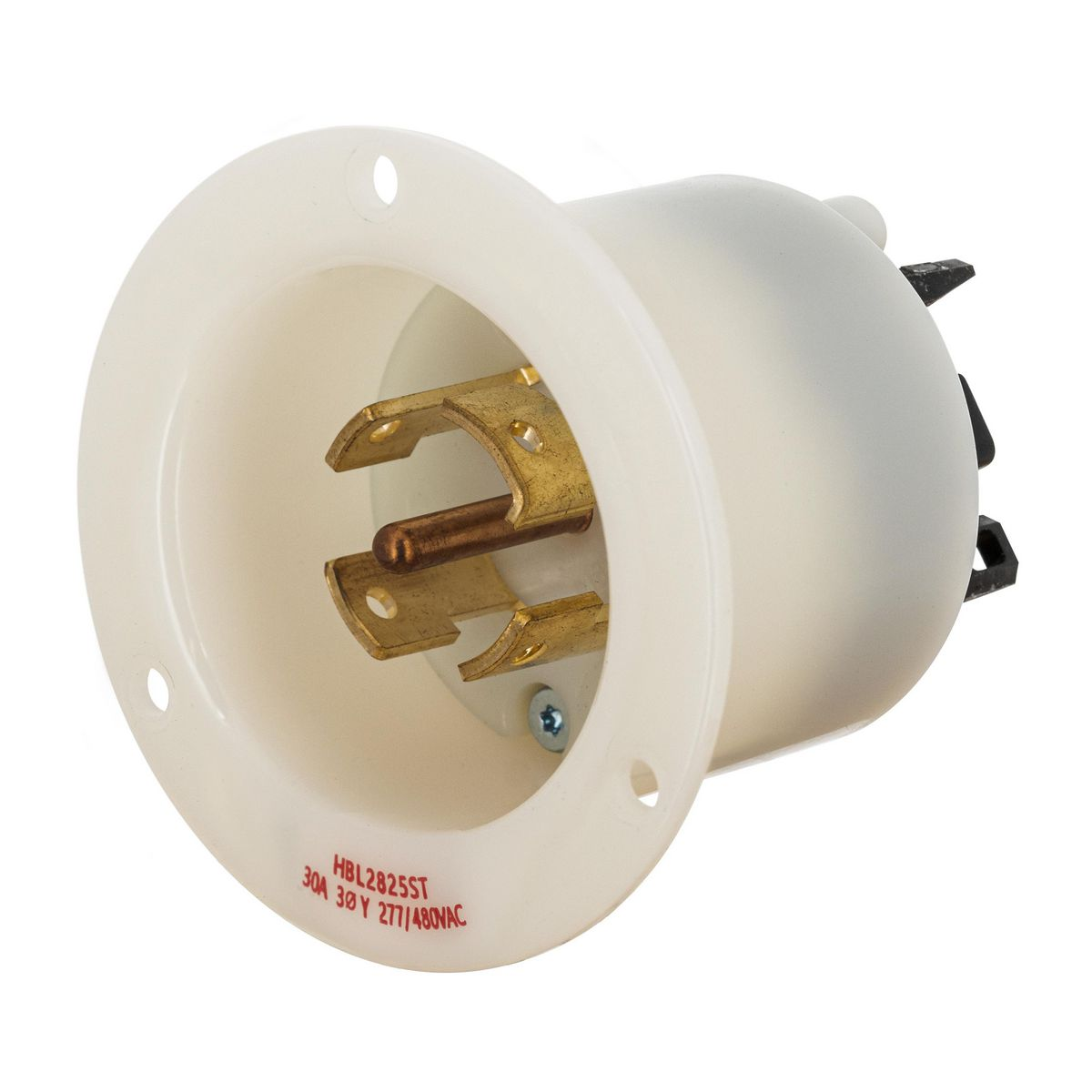

HUBBELL HBL2825ST Locking Receptacle, L22-30P, 30 A, 277/480V AC, 4 Poles
Item: CR4FYRModel: HBL2825STCross Ref: 797VE6
7 In Stock
Ships within 2 days via
10.00% off
€127.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Receptacle |
| Amps | 30A |
| Body Material | Nylon |
| Face Dia. | 2.23" |
| Face Plate Width | 0.09" |
| Flange Dia. | 2.686" |
| Flange Type | Flanged |
| For Location | Indoor |
| Grade | Federal Specification |
| Grounding | Grounded |
| Housing Color | White |
| Housing Material Finish | Natural |
| Hp | 10 hp |
| Includes | 14 Awg-8 Awg Copper Wire |
| Ip Rating | IP20 |
| Market | Industrial |
| Max. Operating Temp. | 75°C |
| Maximum Wire Size | 8 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Nema Plug Configuration | L22-30P |
| Number Of Blades | 5 |
| Number Of Poles | 4 |
| Overall Depth | 2 16/25" |
| Phase | Three |
| Product Datasheet | hubbell-hbl2825st.pdf |
| Ul 94 Flammability Rating | HB |
| Voltage | 277/480V AC |
| Voltage Rating | 277/480V AC |
| Wire Connection Type | Spring Clamp Terminals |
Shipping Info:
| Ship weight (kg) | 0.15 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 6.71 |
| Ship width (cm) | 2.54 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Number Of Poles | Voltage Rating | Wire Connection Type | Amps | Hp | Nema Plug Configuration | Face Dia. | Number Of Blades | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL2415ST | 3 | 125/250V AC | Screw Terminals | 20A | 2 hp | L14-20P | 2.23" | 4 | €84.29 | |
 |
HBL2425ST | 3 | 250V AC | Spring Clamp Terminals | 20A | 3 hp | L15-20P | 2.23" | 4 | €82.60 | |
 |
HBL2725ST | 3 | 250V AC | Spring Clamp Terminals | 30A | 3 hp | L15-30P | 2.23" | 4 | €132.07 | |
 |
HBL2435ST | 3 | - | Spring Clamp Terminals | 20A | 5 hp | L16-20P | 2.23" | 4 | €86.62 | |
 |
HBL2735ST | 3 | 480V AC | Spring Clamp Terminals | 30A | 10 hp | L16-30P | 2.23" | 4 | €148.40 | |
 |
HBL2515ST | 4 | 120/208V AC | Spring Clamp Terminals | 20A | 2 hp | L21-20P | 2.23" | 5 | €131.18 | |
 |
HBL2815ST | 4 | 120/208V AC | Spring Clamp Terminals | 30A | 3 hp | L21-30P | 2.23" | 5 | €136.26 |
