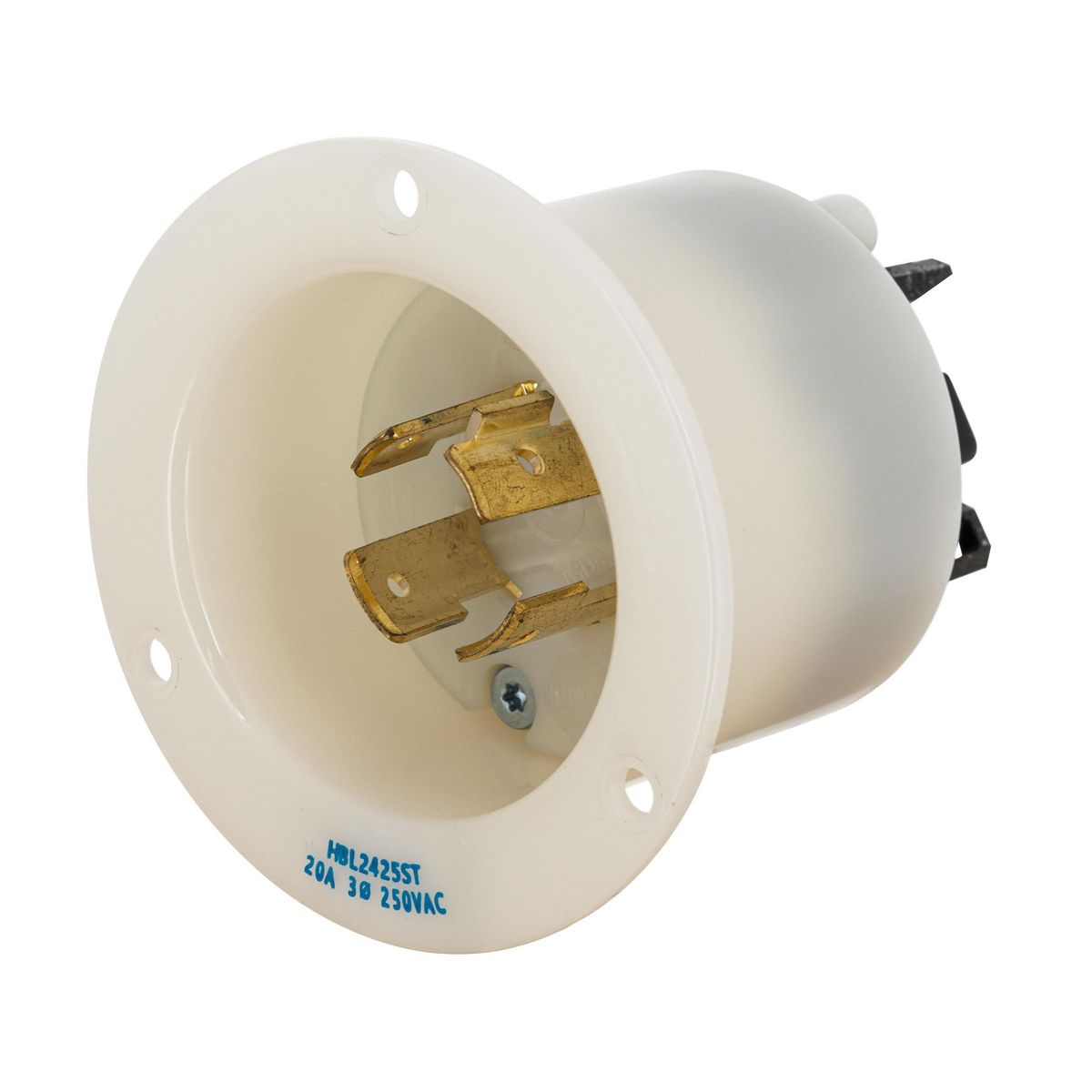

HUBBELL HBL2425ST Locking Receptacle, L15-20P, 20 A, 250V AC, 3 Poles
Item: CR4FXUModel: HBL2425STCross Ref: 797VE1
7 In Stock
Ships within 2 days via
10.00% off
€74.34 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Receptacle |
| Amps | 20A |
| Body Material | Nylon |
| Current Rating | 20A |
| Face Dia. | 2.23" |
| Face Plate Width | 0.09" |
| Flange Dia. | 2.686" |
| Flange Type | Flanged |
| For Location | Indoor |
| Grade | Federal Specification |
| Grounding | Grounded |
| Housing Color | White |
| Housing Material Finish | Natural |
| Hp | 3 hp |
| Includes | 14 Awg-8 Awg Copper Wire |
| Ip Rating | IP20 |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 8 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Nema Plug Configuration | L15-20P |
| Number Of Blades | 4 |
| Number Of Poles | 3 |
| Overall Depth | 2.47" |
| Phase | Three |
| Product Datasheet | hubbell-hbl2425st.pdf |
| Ul 94 Flammability Rating | HB |
| Voltage | 250V AC |
| Voltage Rating | 250V AC |
| Wire Connection Type | Spring Clamp Terminals |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 6.27 |
| Ship width (cm) | 2.54 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Number Of Poles | Voltage Rating | Wire Connection Type | Amps | Hp | Nema Plug Configuration | Face Dia. | Number Of Blades | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL2415ST | 3 | 125/250V AC | Screw Terminals | 20A | 2 hp | L14-20P | 2.23" | 4 | €84.29 | |
 |

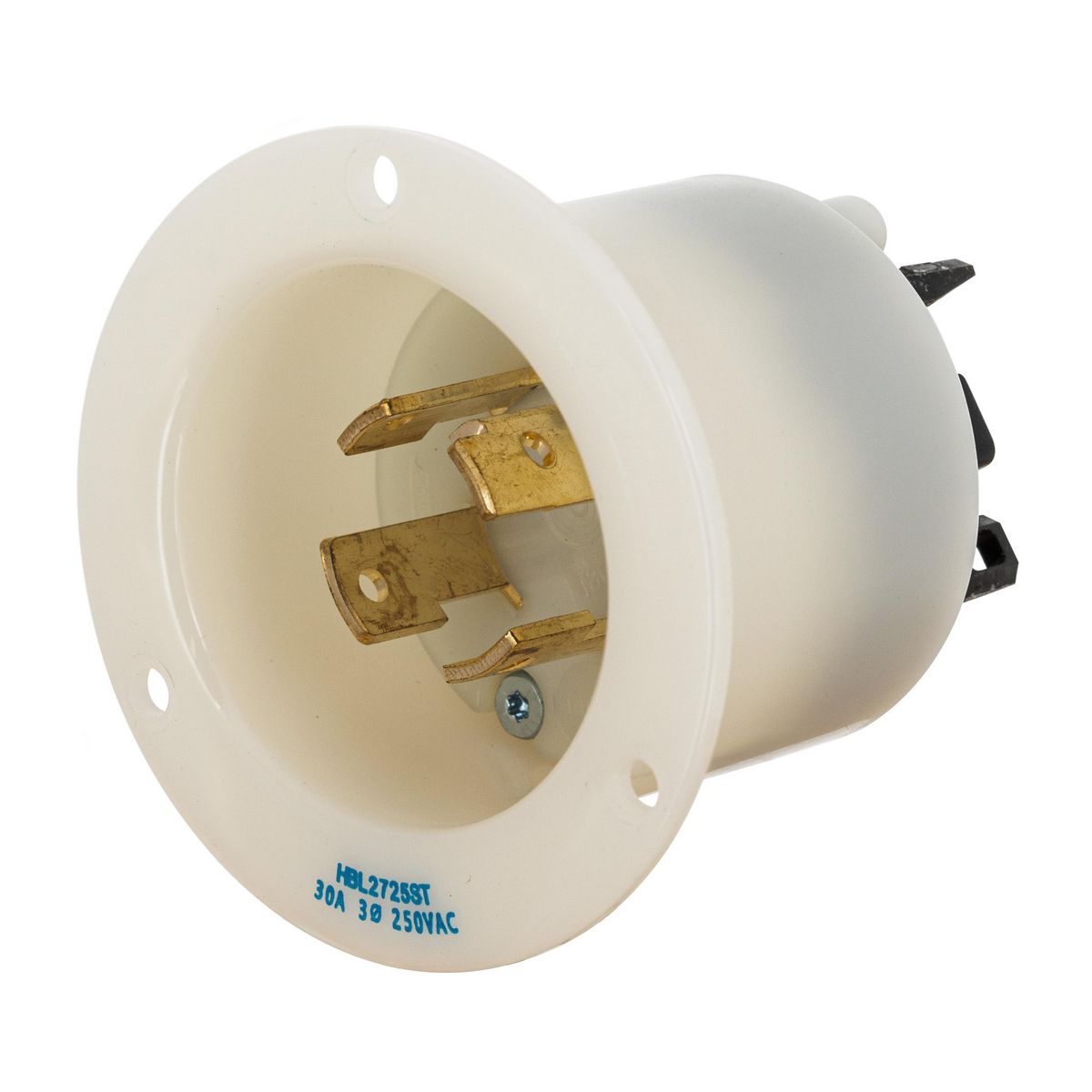

HBL2725ST | 3 | 250V AC | Spring Clamp Terminals | 30A | 3 hp | L15-30P | 2.23" | 4 | €132.07 | |
 |
HBL2435ST | 3 | - | Spring Clamp Terminals | 20A | 5 hp | L16-20P | 2.23" | 4 | €86.62 | |
 |

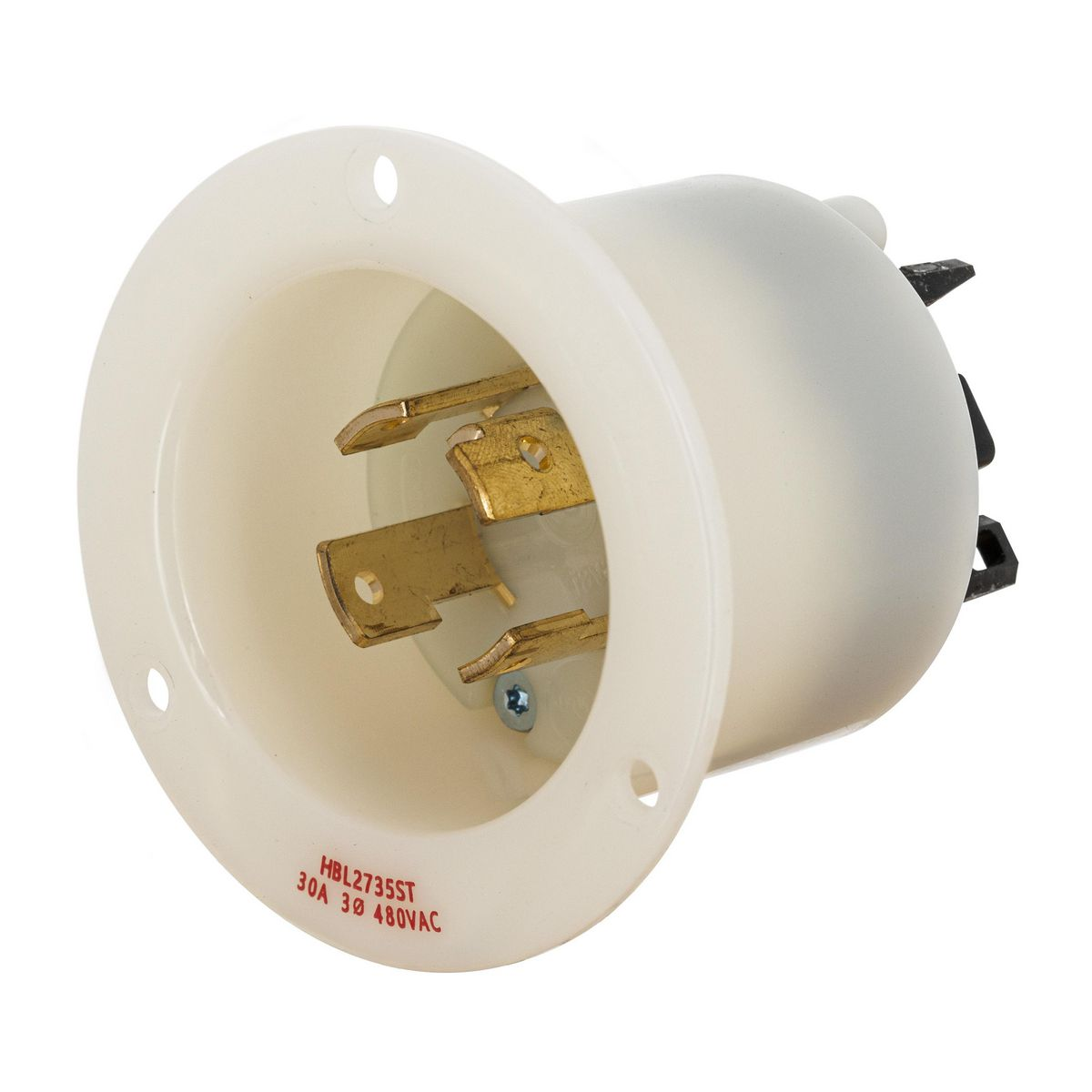

HBL2735ST | 3 | 480V AC | Spring Clamp Terminals | 30A | 10 hp | L16-30P | 2.23" | 4 | €148.40 | |
 |

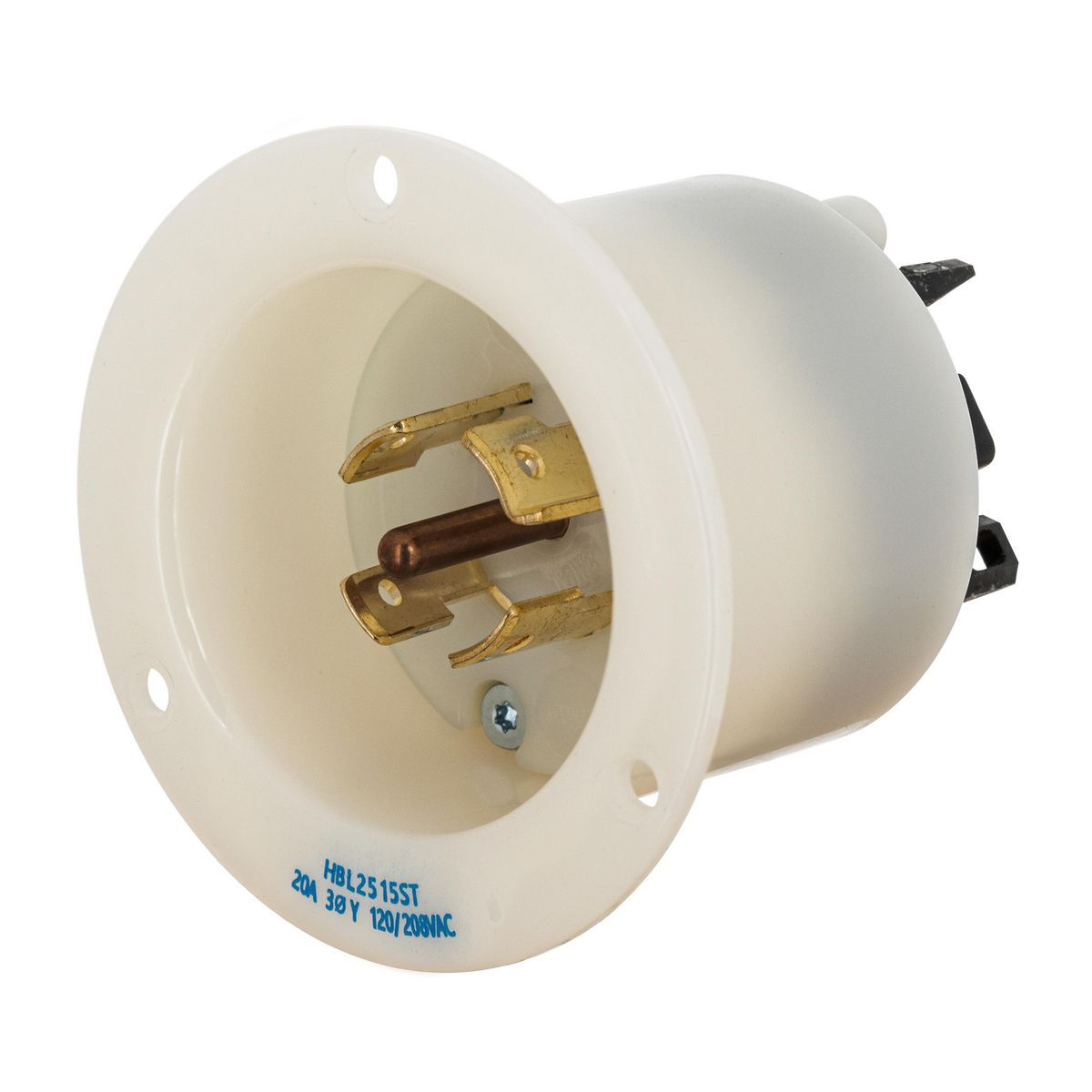

HBL2515ST | 4 | 120/208V AC | Spring Clamp Terminals | 20A | 2 hp | L21-20P | 2.23" | 5 | €131.18 | |
 |

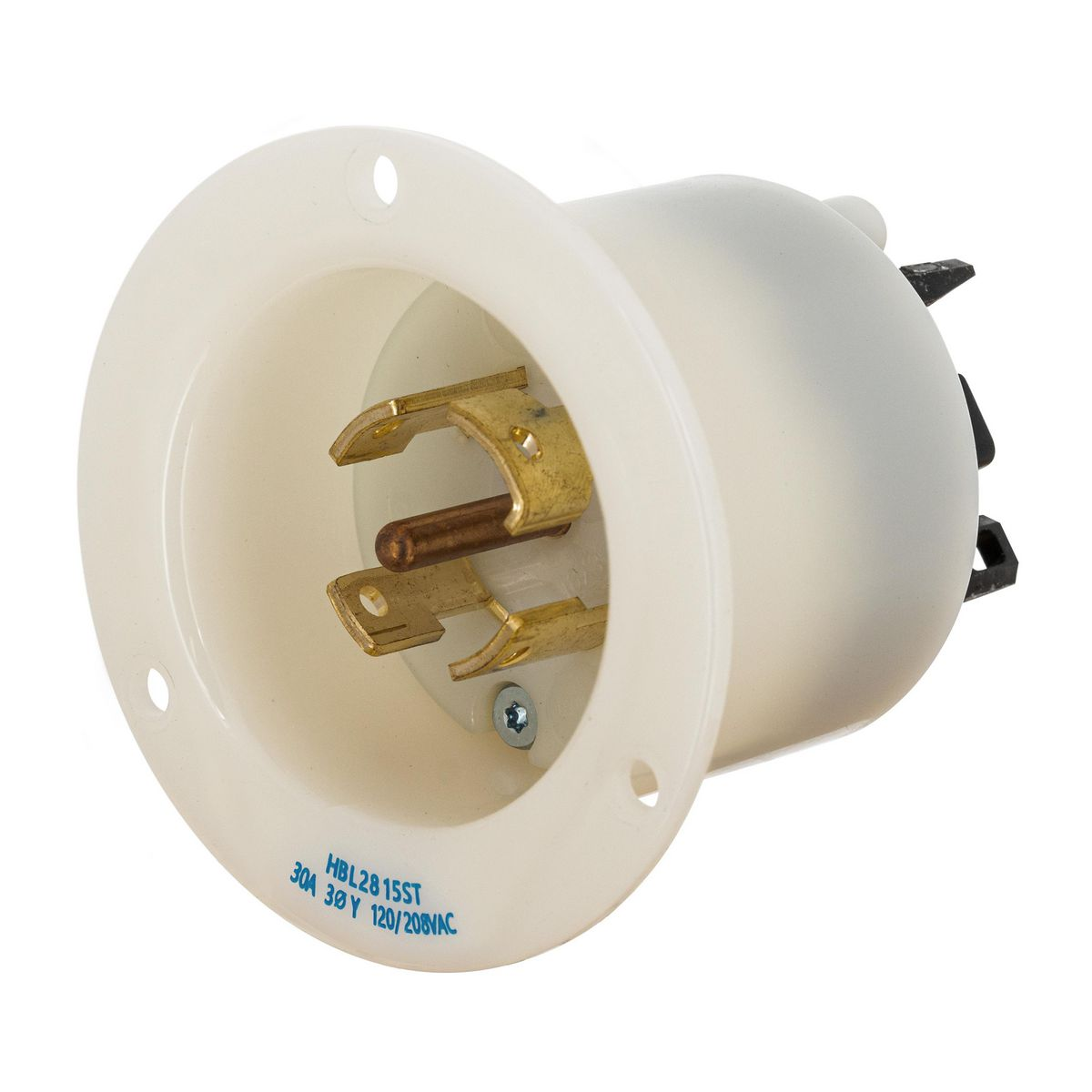

HBL2815ST | 4 | 120/208V AC | Spring Clamp Terminals | 30A | 3 hp | L21-30P | 2.23" | 5 | €136.26 | |
 |

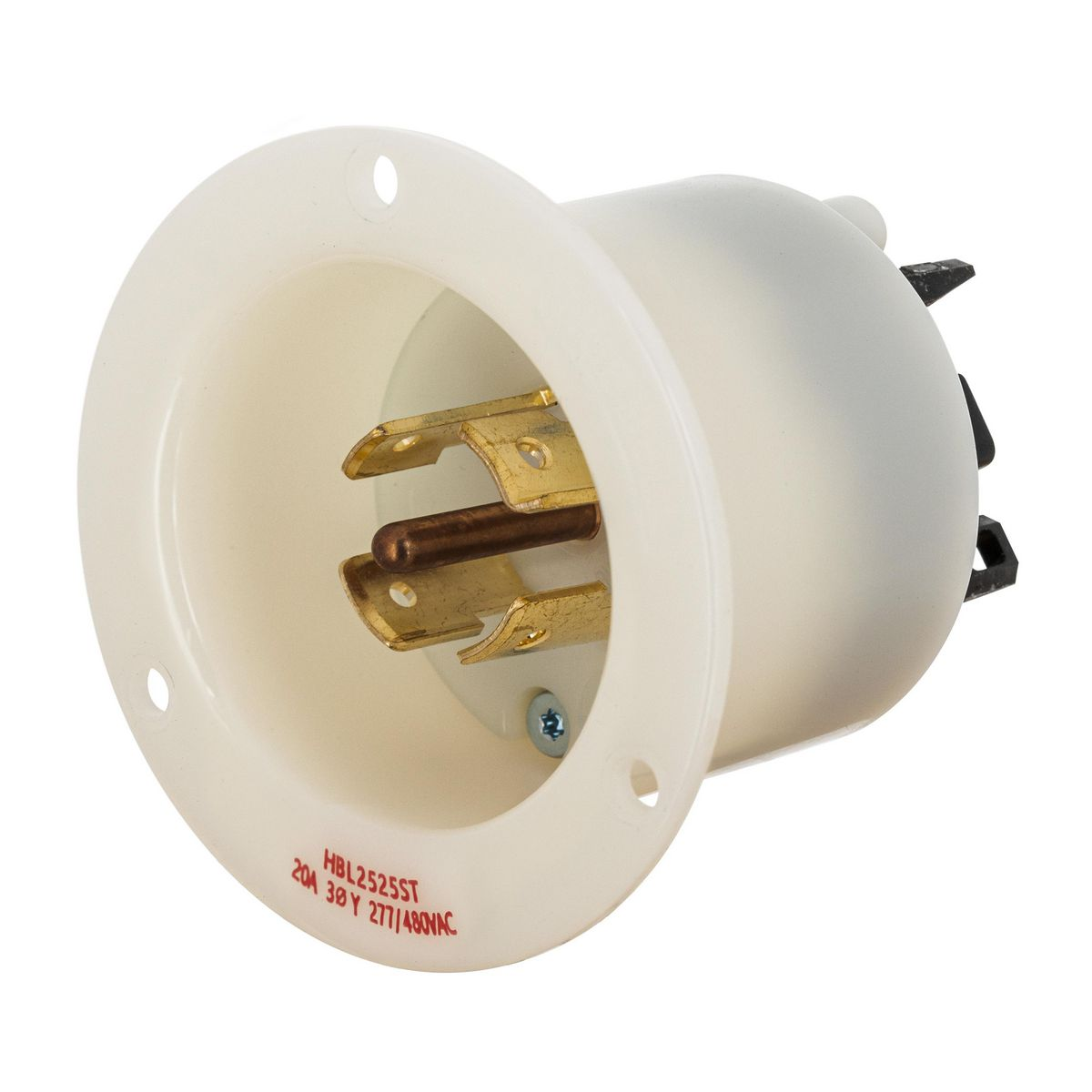

HBL2525ST | 4 | - | Spring Clamp Terminals | 20A | 5 hp | L22-20P | 2.23" | 5 | €136.26 |
