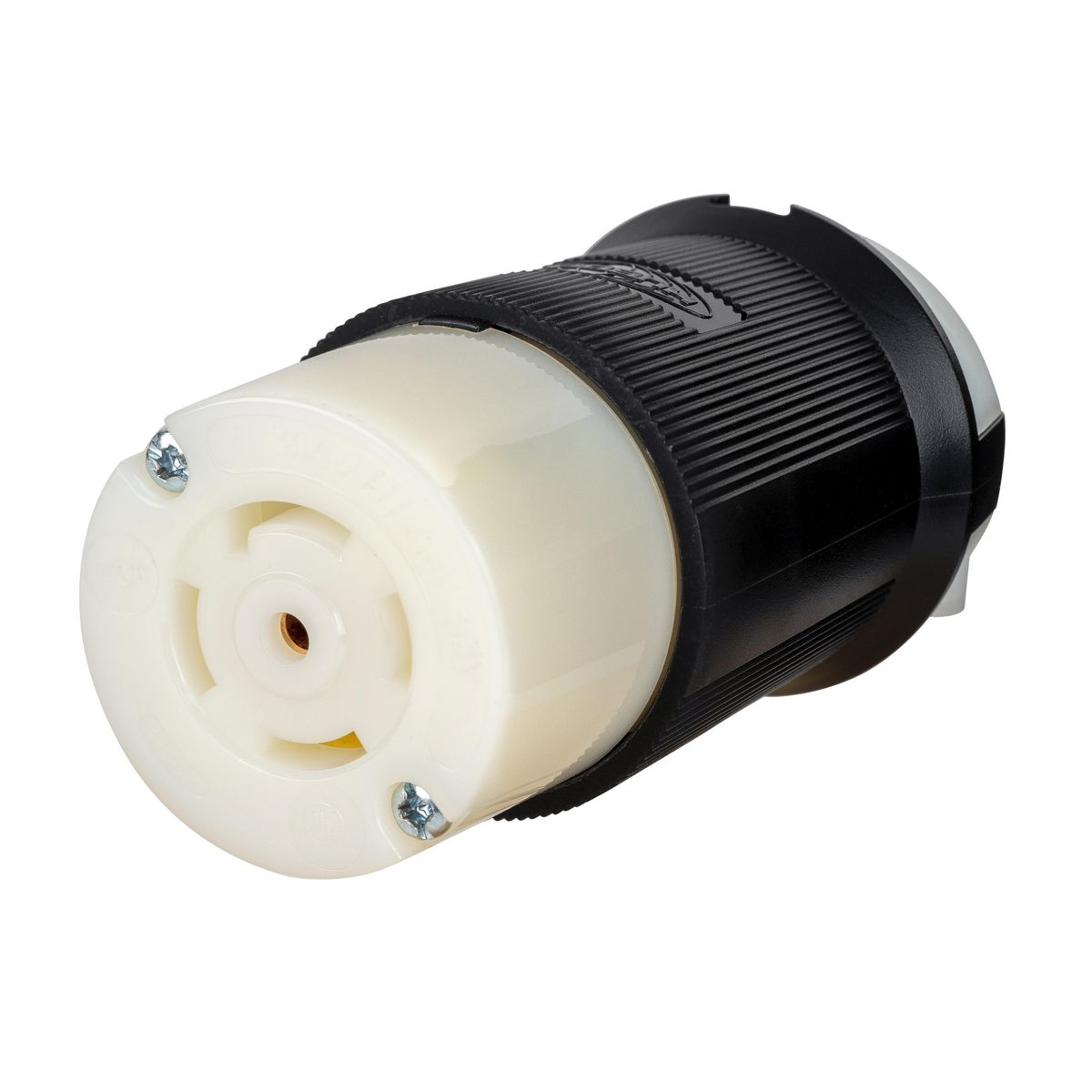

HUBBELL HBL2823ST Locking Connector, L22-30R, 30 A, 480V AC, 4 Poles, Black/White, Spring Clamp Terminals
Item: CR4FWPModel: HBL2823STCross Ref: 797VA7
7 In Stock
Ships within 2 days via
5.00% off
€177.50 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Connector |
| Amps | 30A |
| Body Material | Nylon |
| Cap Type | No Cap, Cover |
| Connection Orientation | Straight |
| For Environment | Dry |
| For Location | Indoor |
| For Max. Cable Dia. | 1.15" |
| For Min. Cable Dia. | 0.35" |
| Grade | Federal Specification |
| Grounding | Grounded |
| Housing Color | Black, White |
| Ip Rating | IP20 |
| Length | 2.33" |
| Market | Industrial |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 8 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 16 AWG |
| Nema Configuration | L22-30 |
| Nema Receptacle Configuration | NEMA L22-30R |
| No. Of Poles | 4 |
| No. Of Wires | 5 |
| Outside Dia. | 2.33" |
| Phase | 3 |
| Product Datasheet | hubbell-hbl2823st.pdf |
| Resistance Properties | Impact Resistant |
| Shrouded | No |
| Ul 94 Flammability Rating | HB |
| Voltage | 480V AC |
| Wire Connection Type | Spring Clamp Terminals |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.21 |
| Ship height (cm) | 5.92 |
| Ship length (cm) | 5.92 |
| Ship width (cm) | 5.92 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | No. Of Poles | Voltage | Phase | Amps | For Min. Cable Dia. | For Max. Cable Dia. | No. Of Wires | Nema Receptacle Configuration | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
24CM23 | 3 | - | - | - | - | - | 4 | - | €149.29 | |
 |
HBL2413ST | 3 | 125/250V AC | 3 | 20A | 0.35" | 1.15" | 4 | NEMA L14-20R | €111.27 | |
 |
HBL2713ST | 3 | 125/250V AC | 1 | 30A | 0.35" | 1.15" | 4 | NEMA L14-30R | €183.17 | |
 |
HBL2423ST | 3 | 250V AC | 3 | 20A | 0.35" | 1.15" | 4 | NEMA L15-20R | €111.27 | |
 |
HBL2723ST | 3 | 250V AC | 3 | 30A | 0.35" | 1.15" | 4 | NEMA L15-30R | €182.86 | |
 |
HBL2433ST | 3 | 480V AC | 3 | 20A | 0.35" | 1.15" | 4 | NEMA L16-20R | €114.52 | |
 |
HBL2733ST | 3 | 480V AC | 3 | 30A | 0.35" | 1.15" | 4 | NEMA L16-30R | €192.70 |
