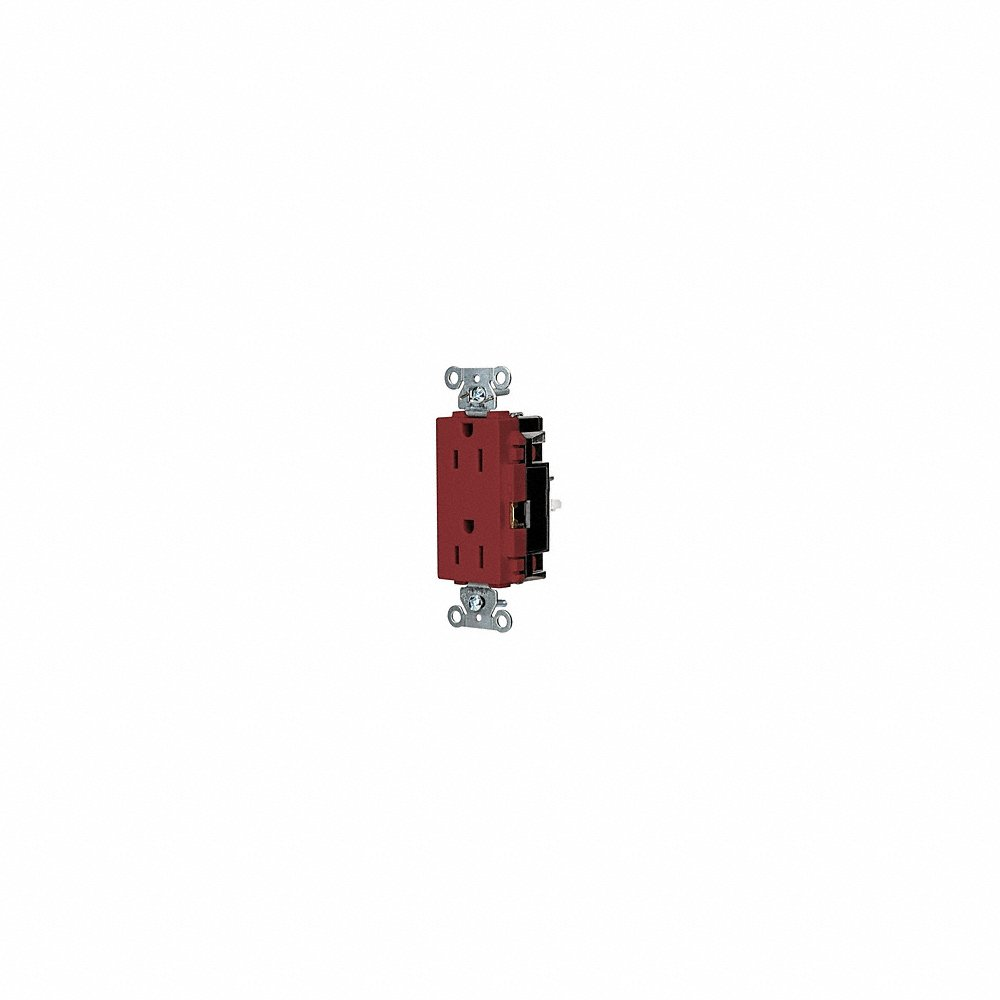

HUBBELL HBL2152STR Receptacle, 1/2 hp, 125V AC, NEMA 5-15R
Item: DH4LBQModel: HBL2152STRCross Ref: 812AH7
7 In Stock
Ships within 2 days via
5.00% off
€38.25 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps Rating | 15A |
| Connection Orientation | Straight |
| Contact Material | Copper Alloy |
| Cover Type | NO Cover |
| Face Plate Height | 2 4/5" |
| Face Plate Width | 1 3/5" |
| Flange Type | Non Flanged |
| For Environment | Dry |
| For Location | Indoor |
| Grade | Grade Federal |
| Grounding | Grounded |
| Housing Color | Red |
| Housing Material | Thermoplastic |
| Hp Rating | 1/2 hp |
| Includes | MOUNTING HARDWARE |
| Ip Rating | IP20 |
| Max. Operating Temp. | 167°F |
| Max. Wire Size | 10 AWG |
| Min. Operating Temp. | -40°F |
| Min. Wire Size | 14 AWG |
| Mount Hole Center To Center Height | 3.3" |
| Mounting Type | Surface |
| Nema Enclosure Rating | NEMA 1 |
| Nema Receptacle Configuration | NEMA 5-15R |
| No. Of Wire | 3 |
| Overall Depth | 1 2/5" |
| Product Datasheet | hubbell-hbl2152str.pdf |
| Resistance Properties | Tamper Resistant |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Wire Connection Type | Push In |
| Wiring Method | Back |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 9.84 |
| Ship length (cm) | 3.56 |
| Ship width (cm) | 11.43 |
| Country of Origin | CN |
