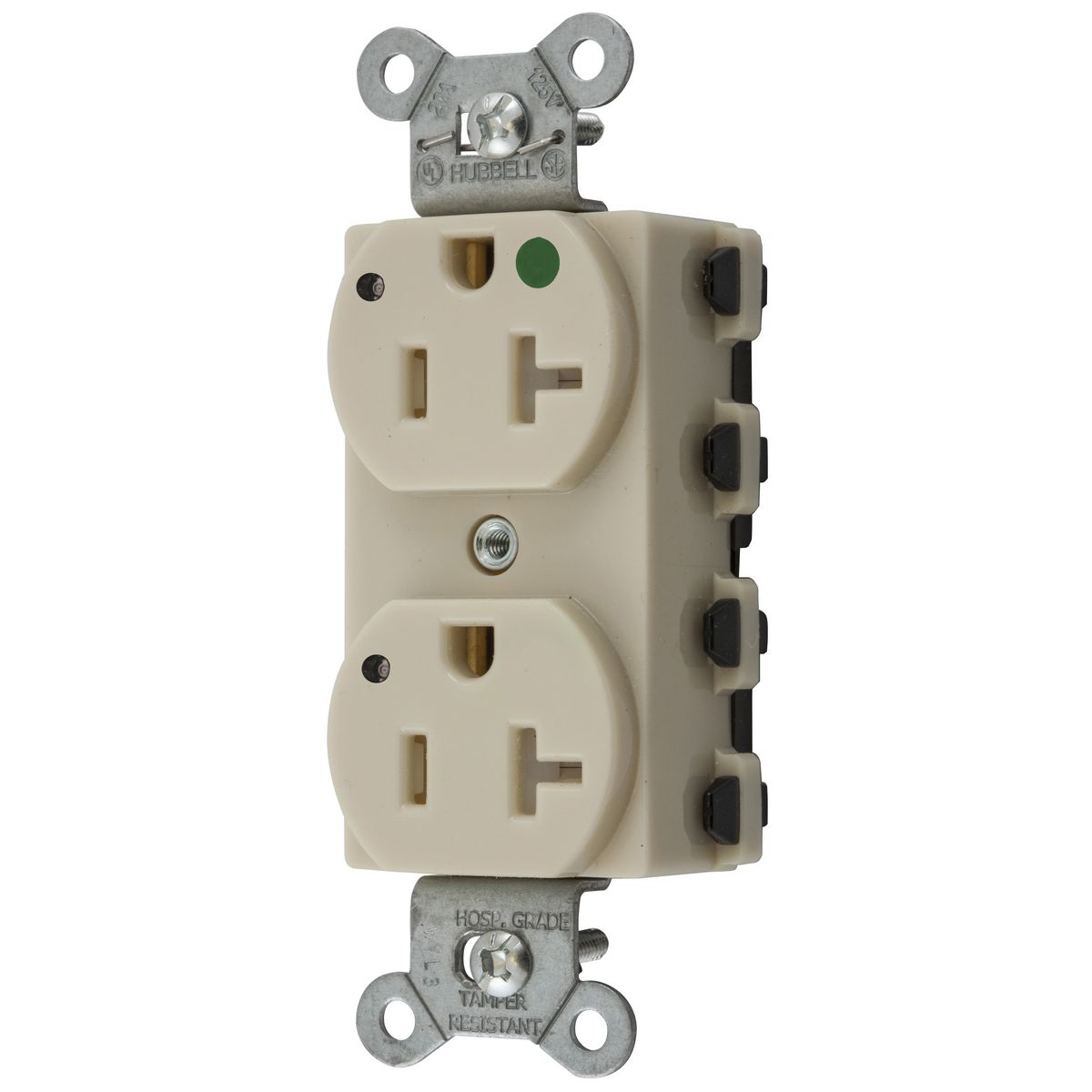

HUBBELL WIRING DEVICE-KELLEMS SNAP8300ILTRA Receptacle, Commercial, Standard Duplex, Flush Mount, 20A, 125V AC, Ivory
Item: BD4PBQModel: SNAP8300ILTRACross Ref: 49YK70
7 In Stock
Ships within 2 days via
10.00% off
€64.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 20A |
| Amps Rating | 20A |
| Color | Ivory |
| Connection Orientation | Straight |
| Connectivity | Connectorized |
| Cover Type | No Cover |
| Current Rating | 20A |
| Dielectric Strength | Withstands 2,000V minimum |
| Face Plate Height | 2.6" |
| Gfci | No |
| Grade | Hospital Grade Fed. Spec. |
| Grounding | Grounded |
| Housing Color | Ivory |
| Includes | Wall Plate Or Weatherproof Cover |
| Ip Rating | IP20 |
| Material | Nylon |
| Max. Hp | 1 hp |
| Mount Hole Center-to-center Height | 3.3" |
| Mount Type | Flush |
| Nema Rating | 5-20R |
| Nema Receptacle Configuration | NEMA 5-20R |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Number Of Gangs | 1 |
| Overall Height | 1.1" |
| Overall Length | 3 7/25" |
| Overall Width | 1 16/25" |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-snap8300iltra.pdf |
| Receptacle Type | Duplex |
| Resistance Property | General Purpose |
| Special Resistance Properties | Tamper Resistant |
| Standards | Csa Certified C22.2 No. 42 File 285, Federal Specification W-C-596, Nema Wd-6, Ul 498 File E2186 |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wattage | 2500 W |
| Wire Connection Location | Back |
| Wire Connection Type | Modular Wiring |
| Wire Connection Types | Snap In Module |
| Wire Size | 12 AWG |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.79 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 4.17 |
| Country of Origin | MX |
Product Details:
- 2-Pole 3-Wire Grounding
Documentation:
Product Variants
| Product | Model | Voltage Rating | Color | Nema Rating | Phase | Amps Rating | Housing Material | Wire Size | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SNAP5362LAA | 125V AC | Almond | 5-20R | 1 | 20A | Nylon | 12 AWG | 125V AC | €33.86 | |
 |
SNAP8200RA | - | Red | 5-15R | 1 | 15A | - | 12 AWG | 125V AC | €41.22 | |
 |
SNAP8200WA | 125V AC | White | 5-15R | 1 | 15A | - | 12 AWG | 125V AC | €44.25 | |
 |
HBL53CM62 | 125V AC | Yellow | - | 1 | - | Nylon (Face) | - | - | €112.28 | |
 |
IG5262I | 125V AC | Ivory | 5-15R | 1 | 15A | Nylon | 14 AWG to 10 AWG | 125V AC | €72.90 | |
 |
SR50 | 125/250V AC | Yellow | - | 1 | - | - | 6 AWG | - | €609.19 | |
 |
IG15DR | 125V AC | Orange | 5-15R | 1 | 15A | Nylon | 14 AWG to 10 AWG | 125V AC | €26.52 |
