HUBBELL WIRING DEVICE-KELLEMS SNAP5362A Straight Receptacle, 20A 125V, 2P - 3W Grounding, 5-20R, Nylon, Brown
Item: AC4XDJModel: SNAP5362ACross Ref: 31A392
7 In Stock
Ships within 2 days via
10.00% off
€28.57 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 20A |
| Application Environment | Commercial Environments |
| Color | Brown |
| Connection Orientation | Straight |
| Connectivity | Connectorized |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 20A |
| Dielectric Strength | 2000V |
| Dielectric Strength | Withstands 2,000V minimum |
| Duty | Extra Heavy |
| Face Plate Height | 2.6" |
| Face Plate Width | 1 3/5" |
| Face Type | Finder Groove |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded |
| Height | 1.1" |
| Horsepower Rating | 1 hp |
| Housing Color | Brown |
| Housing Material | Nylon |
| Includes | Grounding Clip, Grounding Staple, Mounting Hardware, Wall Plate Or Weatherproof Cover |
| Includes Mounting Hardware | Yes |
| Length | 3 7/25" |
| Material | Nylon |
| Max. Hp | 1 hp |
| Maximum Operating Temperature | 167°F |
| Maximum Wire Size | 12 AWG |
| Minimum Operating Temperature | -40°F |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Type | Flush |
| Nema Configuration | NEMA 5-20R |
| Nema Enclosure Rating | 1 |
| Nema Rating | NEMA 5-20R |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Conductors | 3 |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +75°C |
| Outlet Type | Duplex |
| Overall Depth | 1.1" |
| Phase | Single Phase |
| Polarized | Yes |
| Power Indicator | No |
| Prod. Description | Standard And Tamper Resistant, Finder Groove Face |
| Product Datasheet | hubbell-wiring-device-kellems-snap5362a.pdf |
| Receptacle Type | Duplex |
| Standards | Csa Certified C22.2 No. 42 File 285, Federal Specification W-C-596, Nema Wd-6, Ul 498 File E2186 |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wattage | 2500 W |
| Weather Resistant | No |
| Width | 1 16/25" |
| Wire Connection Location | Back |
| Wire Connection Type | Modular Wiring |
| Wire Connection Types | Snap In Module |
| Wire Size | 12 AWG |
| Wiring Method | Back |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.79 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 4.17 |
| HS code | 8536698000 |
| Country of Origin | CN |
Product Details:
- Sub-Brand: SNAPCONNECT
Documentation:
Product Variants
| Product | Model | Phase | Nema Configuration | Current Rating | Wire Connection Type | Housing Color | Color | Nema Rating | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SNAP5262IA | Single Phase | NEMA 5-15R | 15A | Screw Terminals | Ivory | Ivory | NEMA 5-15R | 125V AC | €29.05 | |
 |
SNAP5262WA | Single Phase | NEMA 5-15R | 15A | Modular Wiring | White | White | NEMA 5-15R | 125V AC | €26.74 | |
 |
SNAP5362IA | Single Phase | NEMA 5-20R | 20A | Modular Wiring | Ivory | Ivory | NEMA 5-20R | 125V AC | €33.39 | |
 |
SNAP5262GYSCTRA | 1 | - | - | - | - | Gray | NEMA 5-15R | 125V | €32.56 | |
 |
SNAP5362BLSCTRA | 1 | - | - | - | - | Blue | NEMA 5-20R | 125V | €37.22 | |
 |
SNAP5262GYNA | 1 | - | - | - | - | Gray | NEMA 5-15R | 125V | €20.54 | |
 |

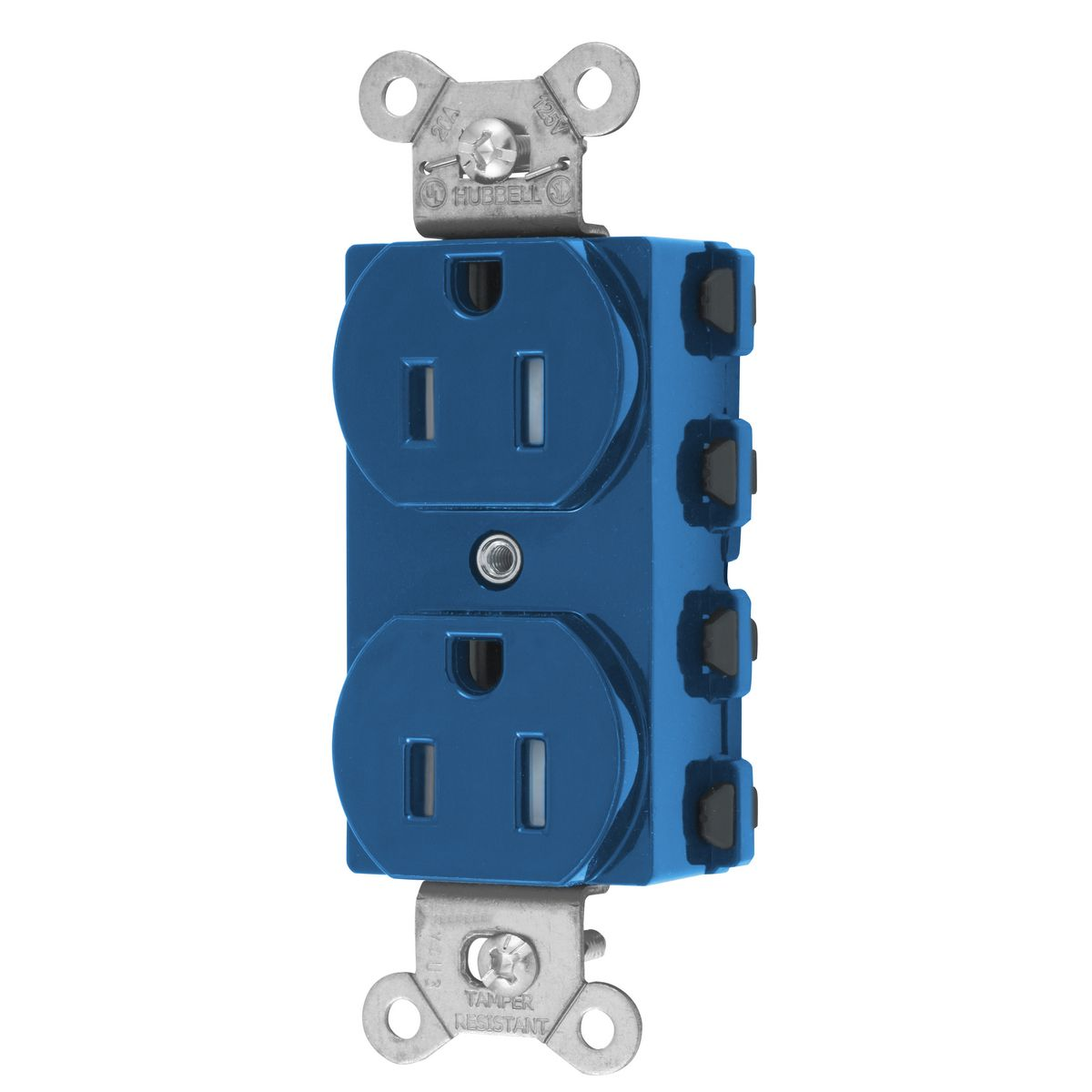

SNAP5262BLTRA | 1 | - | - | - | - | Blue | NEMA 5-15R | 125V | €29.76 |
