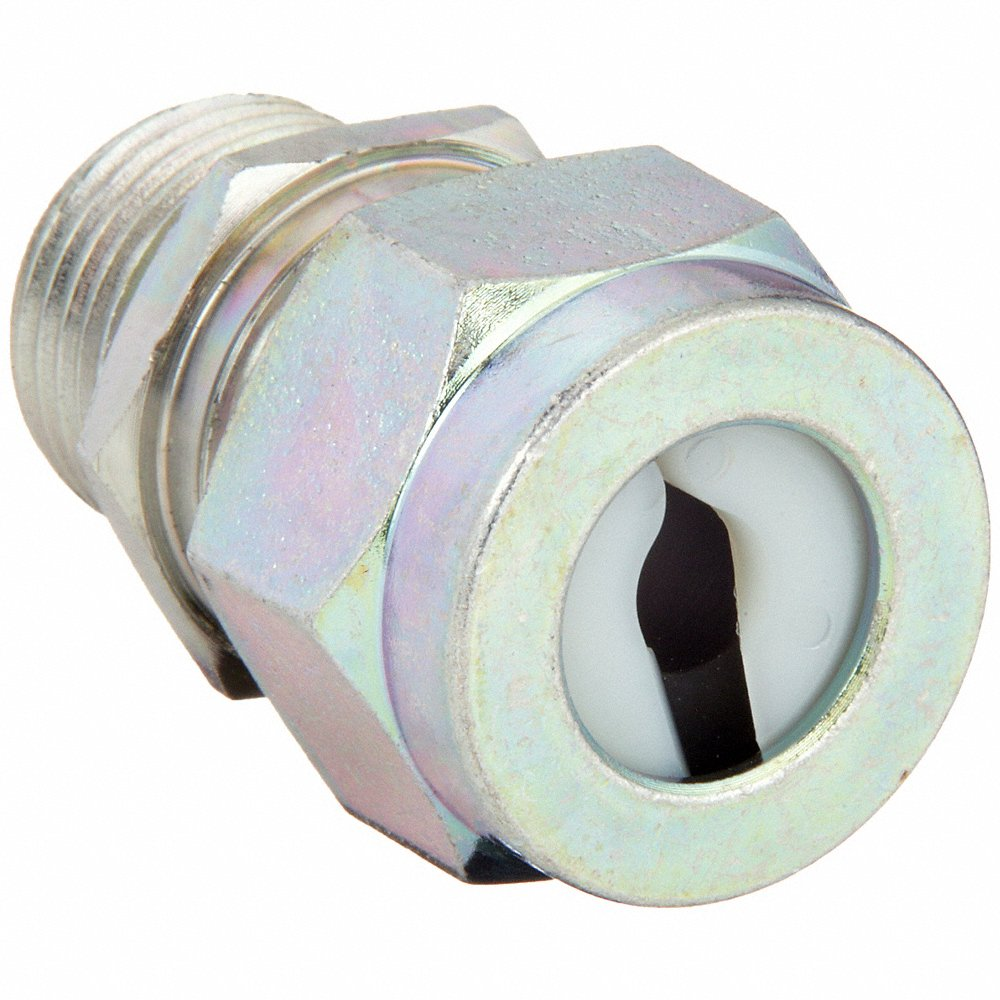

HUBBELL WIRING DEVICE-KELLEMS SHC1022ZP Liquid Tight Connector 1/2 inch White
Item: AE3FPHModel: SHC1022ZPCross Ref: 5D923
7 In Stock
Ships within 2 days via
10.00% off
€19.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Liquid Tight Connector |
| Body Color | Silver |
| Body Material | Steel |
| Box Connection | 1/2" MNPT |
| Bushing Material | Neoprene |
| Collar Material | Steel |
| Color | White |
| Compatible Conduit Trade Size | 1/2" |
| Compatible Conduit Type | Liquid Tight Cord Connector |
| Conduit Size | 1/2" |
| Connection Orientation | Straight |
| Connector Type | Straight |
| Cord Dia. Range | 1/4" to 3/8" |
| Cord Dia. Range | 0.25" to 0.38" |
| Environmental Rating | Hazardous Locations |
| For Maximum Cable Od | 0.38" |
| For Minimum Cable Od | 0.25" |
| For Use With | Kellems Wire Management |
| Form Size | F2 |
| Grommet Color Code | White |
| Hazardous Location Rating | Class I, Division 2, Class II, Division 1 And 2, Class III, Division 1 And 2 |
| Hub Size | 1/2" |
| Insulated | No |
| Ip Rating | IP66 |
| Length | 1 3/4" |
| Length - Box To End Of Connector | 1 3/16" |
| Liquid-tight | Yes |
| Material | Zinc Plated Steel |
| Material - External Strain Relief | No External Strain Relief |
| Maximum Operating Temperature | 225°F |
| Minimum Operating Temperature | -30°F |
| Nema Rating | NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Number Of Cords | 1 |
| Overall Length | 1 3/4" |
| Product Datasheet | hubbell-wiring-device-kellems-shc1022zp.pdf |
| Resistance Properties | Corrosion Resistant |
| Standards | Csa Lr27378, Ul E54218(M) |
| Strain Relief Type | No External Strain Relief |
| Thread Gender | Male |
| Thread Type | NPT |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.79 |
| Ship length (cm) | 4.45 |
| Ship width (cm) | 9.4 |
| HS code | 7307923030 |
| Country of Origin | CN |
Product Details:
- Number of Cords (1)
Documentation:
Product Variants
| Product | Model | Material | Color | Conduit Size | Hub Size | Cord Size | Cord Dia. | Height | Connector Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SHC1010ZP | Zinc Plated Steel | Black | 3/8" | 3/8" | - | - | - | Straight | €24.28 | |
 |
SHC1011CR | Nylon | White | 3/8" | 3/8" | - | - | - | Straight | €20.99 | |
 |
SHC1012CR | Nylon | Blue | 3/8" | 3/8" | - | - | - | Straight | €18.50 | |
 |
SHC1019CR | Nylon | Green | - | 1/2" | - | - | - | Straight | €19.14 | |
 |
SHC1020ZP | Zinc Plated Steel | Orange | - | 1/2" | - | - | - | Straight | €32.50 | |
 |
SHC1027ZP | Zinc Plated Steel | Yellow | - | 1/2" | - | - | - | Straight | €39.29 | |
 |
SHC1028ZP | Zinc Plated Steel | Orchid | 1/2" | 1/2" | 3/4" to 7/8" | - | - | Straight | €37.58 |
