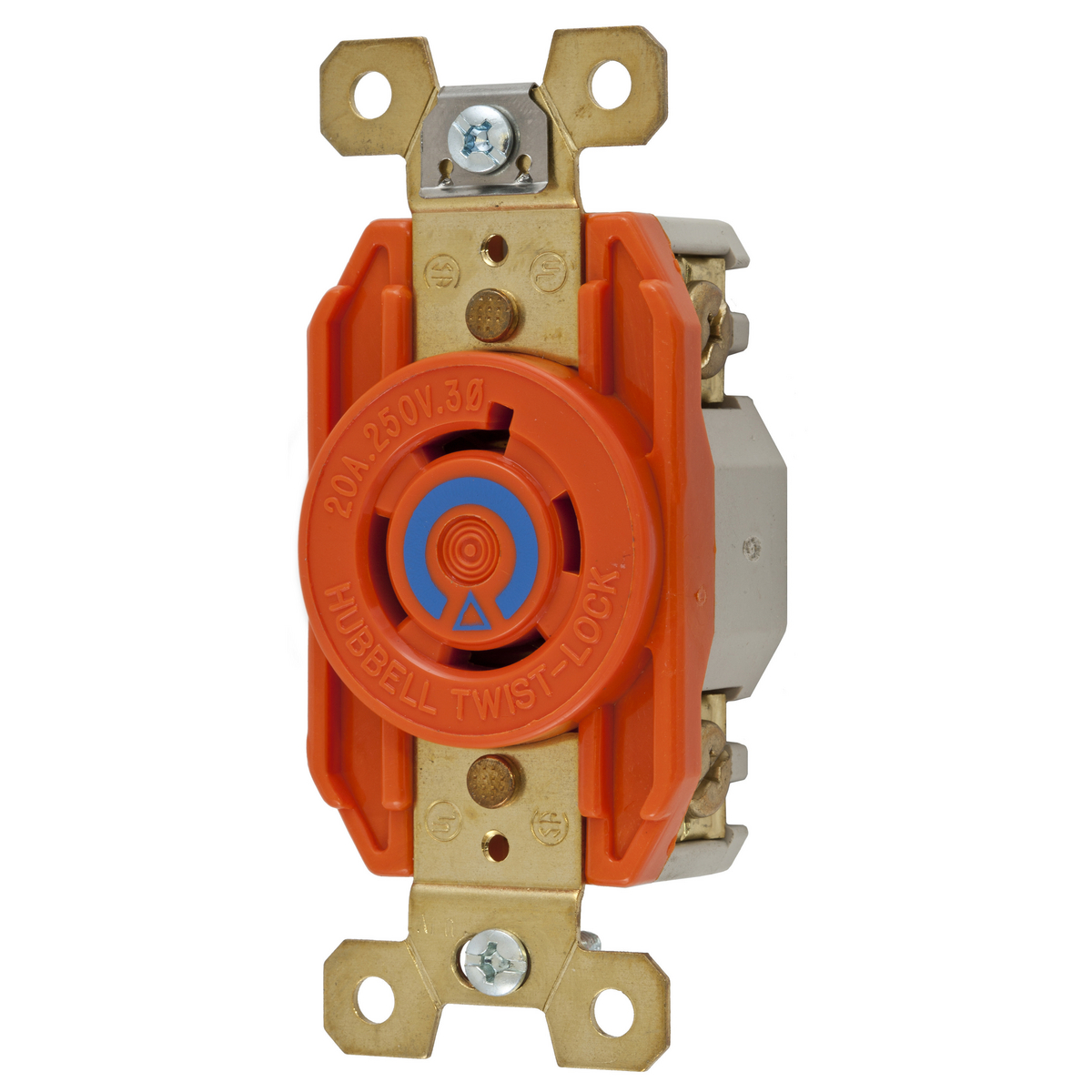

HUBBELL WIRING DEVICE-KELLEMS IG2420 Single Flush Receptacle, 20A, 3 Phase, 250VAC, 3 Pole, 4 Wire Grounding
Item: AC3ZFRModel: IG2420Cross Ref: 2XTF4
7 In Stock
Ships within 2 days via
10.00% off
€90.75 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle w/Isolated Ground |
| Afci | No |
| Amps | 20A |
| Color | Orange |
| Connection Orientation | Straight |
| Connectivity | Back And Side Wired |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 20A |
| Dielectric Strength | Withstands 2,000V minimum |
| Flange Type | Non Flanged |
| For Environment | Dry |
| For Location | Indoor |
| Grade | Grade Industrial |
| Grounding | Grounded |
| Height | 1.23" |
| Horsepower Rating | 3 hp |
| Housing Color | Orange |
| Housing Material | Nylon |
| Includes | Mounting Hardware |
| Includes Mounting Hardware | Yes |
| Ip Rating | IP20 |
| Length | 3 7/25" |
| Market | Industrial |
| Material | Nylon |
| Max. Hp | 3 hp |
| Maximum Operating Temperature | 167°F |
| Maximum Wire Size | 8 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 16 AWG |
| Mounting | Screw Mounting |
| Mounting Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Rating | NEMA 15-20R |
| Nema Receptacle Configuration | L15-20R |
| Number Of Gangs | 1 |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Phase | 3 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-ig2420.pdf |
| Resistance Properties | Corrosion Resistant |
| Shrouded | No |
| Type | Non Shrouded |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 250V |
| Voltage Rating | 250V AC |
| Wattage | 5000 W |
| Width | 1.7" |
| Wire Connection Type | Screw Terminals |
| Wire Size | 16 AWG to 8 AWG |
| Wire Type | Standard |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 3.12 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 4.32 |
| HS code | 8536698000 |
| Country of Origin | US |
Product Details:
- Special Features: With Isolated Ground
Documentation:
Product Variants
| Product | Model | Phase | Number Of Poles | Current Rating | Voltage Rating | Number Of Wires | Resistance Properties | Wire Size | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
IG2340 | 1 | 2 | 20A | 480V AC | 3 | Corrosion Resistant | 16 AWG to 8 AWG | Nylon | €88.54 | |
 |
IG2510 | 3 | 4 | 20A | 120/208V AC | 5 | Corrosion Resistant | 16 AWG to 8 AWG | Nylon | €141.41 | |
 |
IG2710 | 1 | 3 | - | - | - | - | 16 AWG to 8 AWG | Nylon | €152.96 | |
 |
IG2720 | 3 | 3 | 30A | 250V AC | 4 | Corrosion Resistant | 16 AWG to 8 AWG | Nylon | €151.93 | |
 |
IG4550A | 1 | 2 | 15A | 250V AC | 3 | Impact Resistant | 18 AWG to 10 AWG | Thermoplastic | €88.01 | |
 |
IG2310 | 1 | 2 | 20A | 125V AC | 3 | Impact Resistant | 16 AWG to 8 AWG | Nylon | €80.08 | |
 |
IG2610 | 1 | 2 | 30A | 125V AC | 3 | Impact Resistant | 16 AWG to 8 AWG | Nylon | €110.94 |
