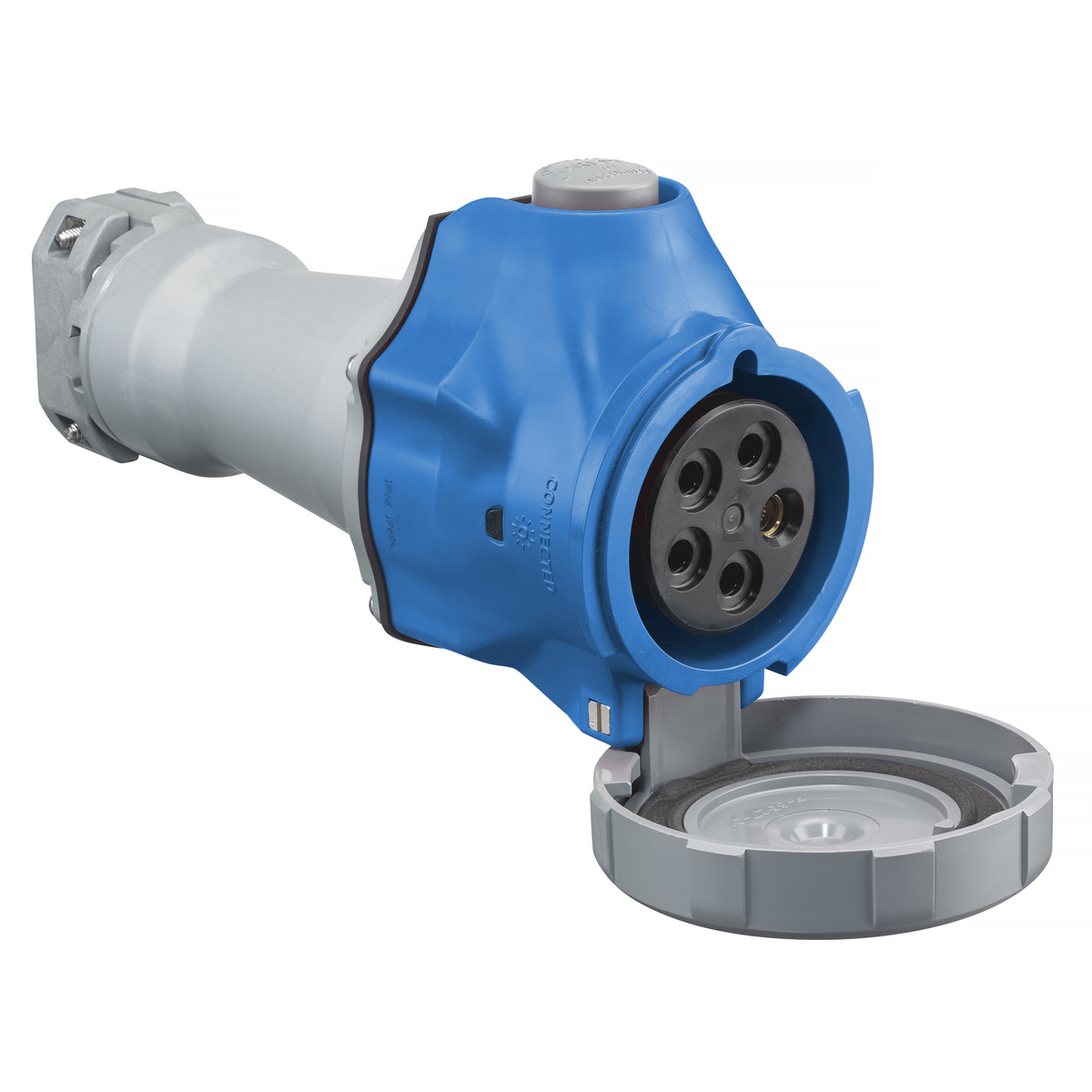

HUBBELL WIRING DEVICE-KELLEMS HBLS530C9W Pin and Sleeve Connector, 30A, 120/208V AC
Item: BD4CARModel: HBLS530C9WCross Ref: 44ZD66
7 In Stock
Ships within 2 days via
5.00% off
€1,073.12 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pin and Sleeve Connector |
| Amps | 30/32A |
| Cap Type | Spring Loaded Cap |
| Color | Blue |
| Compatible With Series | Advantage Switch Rated |
| Connection Orientation | Straight |
| Contact Material | Beryllium Copper |
| Features | Pin Chamber Confines Arcing Within The Interior Chamber, Spring Loaded, Gasketed Cover For Dust Tight Seal, Watertight Neoprene Sealing Glands For Reliable Seal |
| For Environment | Wet |
| For Max. Cable Dia. | 1.25" |
| For Min. Cable Dia. | 1/2" |
| Grounding | Grounded |
| Grounding Style | IEC |
| Housing Color | Blue |
| Housing Material | PBT |
| Housing Material Grade | Grade Valox 357 |
| Hp | 10 hp |
| Ip Rating | IP68, IP69K |
| Market | Industrial |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 8 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 12 AWG |
| Nema Enclosure Rating | NEMA 4X |
| No. Of Poles | 4.0 |
| No. Of Wires | 5 |
| Outside Dia. | 4.5" |
| Overall Length | 9.9" |
| Phase | 3 |
| Power Indicating Light | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-hbls530c9w.pdf |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight |
| Reverse Service | No |
| Shrouded | Yes |
| Switch Rated | Yes |
| Ul 94 Flammability Rating | V-0 |
| Voltage | 120/208V AC |
| Wire Connection Type | Screw Terminal |
Shipping Info:
| Ship weight (kg) | 0.96 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 25.15 |
| Ship width (cm) | 11.43 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | No. Of Poles | Amps | Housing Material | Housing Color | Phase | Color | Max. Wire Size | For Min. Cable Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBLS332C4W | 2.0 | 32A | PBT | Yellow | 1 | Yellow | 8 AWG | 1/2" | €911.90 | |
 |
HBLS430C6W | 3.0 | 30/32A | PBT | Red | 3 | Red | 8 AWG | 1/2" | €1,086.93 | |
 |
HBLS430C9W | 3.0 | 30A | PBT | Blue | 3 | Blue | 8 AWG | 1/2" | €898.60 | |
|
HBLS460C7W | 3.0 | 60A | PBT | Red | 3 | Red | 2 AWG | 1/2" | €1,653.62 | |
|
HBLS460C6W | 3.0 | 60/63A | PBT | Red | 3 | Red | 2 AWG | 1/2" | €1,973.15 | |
|
HBLS330C4W | 2.0 | 30A | PBT | Yellow | 1 | Yellow | 8 AWG | 1/2" | €961.04 | |
|
HBLS460C9W | 3.0 | 60/63A | PBT | Blue | 3 | Blue | 2 AWG | 1/2" | €1,483.70 |
