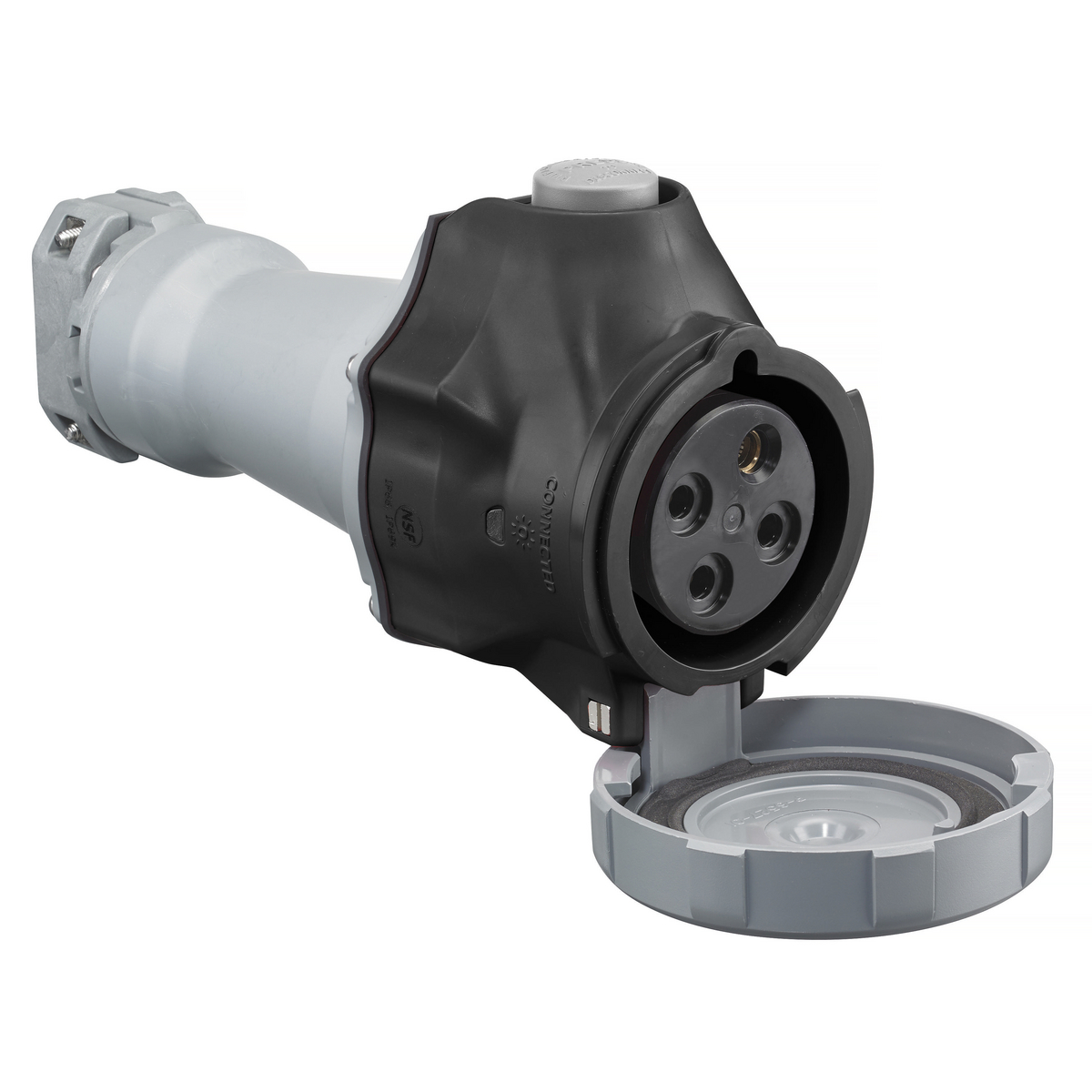

HUBBELL WIRING DEVICE-KELLEMS HBLS430C5W Pin and Sleeve Connector, 30A, 600V AC
Item: BD4GVJModel: HBLS430C5WCross Ref: 44ZD57
7 In Stock
Ships within 2 days via
10.00% off
€844.35 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pin and Sleeve Connector |
| Amps | 30A |
| Cap Type | Spring Loaded Cap |
| Color | Black |
| Compatible With Series | Advantage Switch Rated |
| Connection Orientation | Straight |
| Contact Material | Beryllium Copper |
| Current Rating | 30A |
| Features | Color Coded Housings For Easy Identification, Insulated Non Metallic Housing, Self Closing Gasketed Cover |
| For Environment | Wet |
| For Maximum Cable Diameter | 1.25" |
| Grounding | Grounded |
| Grounding Style | IEC |
| Horsepower Rating | 30 hp |
| Housing Color | Black |
| Housing Material | PBT |
| Housing Material Grade | Grade Valox 357 |
| Ip Rating | IP68, IP69K |
| Market | Industrial |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 8 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 12 AWG |
| Nema Enclosure Rating | NEMA 4X |
| Number Of Poles | 3.0 |
| Number Of Wires | 4 |
| Outside Diameter | 4.5" |
| Overall Length | 9.9" |
| Phase | Three |
| Power Indicating Light | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-hbls430c5w.pdf |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight |
| Reverse Service | No |
| Shrouded | Yes |
| Switch Rated | Yes |
| Ul 94 Flammability Rating | V-0 |
| Voltage Rating | 600V AC |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.96 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 25.15 |
| Ship width (cm) | 11.43 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Current Rating | Number Of Poles | Number Of Wires | Grounding Style | Housing Material | Housing Color | Phase | For Maximum Cable Diameter | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBLS332C4W | 32A | 2.0 | 3 | IEC | PBT | Yellow | Single | 1.25" | €911.90 | |
 |
HBLS430C6W | 30/32A | 3.0 | 4 | IEC | PBT | Red | Three | 1.25" | €1,086.93 | |
 |
HBLS430C9W | 30A | 3.0 | 4 | IEC | PBT | Blue | Three | 1.25" | €898.60 | |
|
HBLS460C7W | 60A | 3.0 | 4 | IEC | PBT | Red | Three | 1.45" | €1,653.62 | |
|
HBLS460C6W | 60/63A | 3.0 | 4 | IEC | PBT | Red | Three | 1.45" | €1,973.15 | |
|
HBLS330C4W | 30A | 2.0 | 3 | IEC | PBT | Yellow | Single | 1.25" | €961.04 | |
|
HBLS460C9W | 60/63A | 3.0 | 4 | IEC | PBT | Blue | Three | 1.45" | €1,483.70 |
