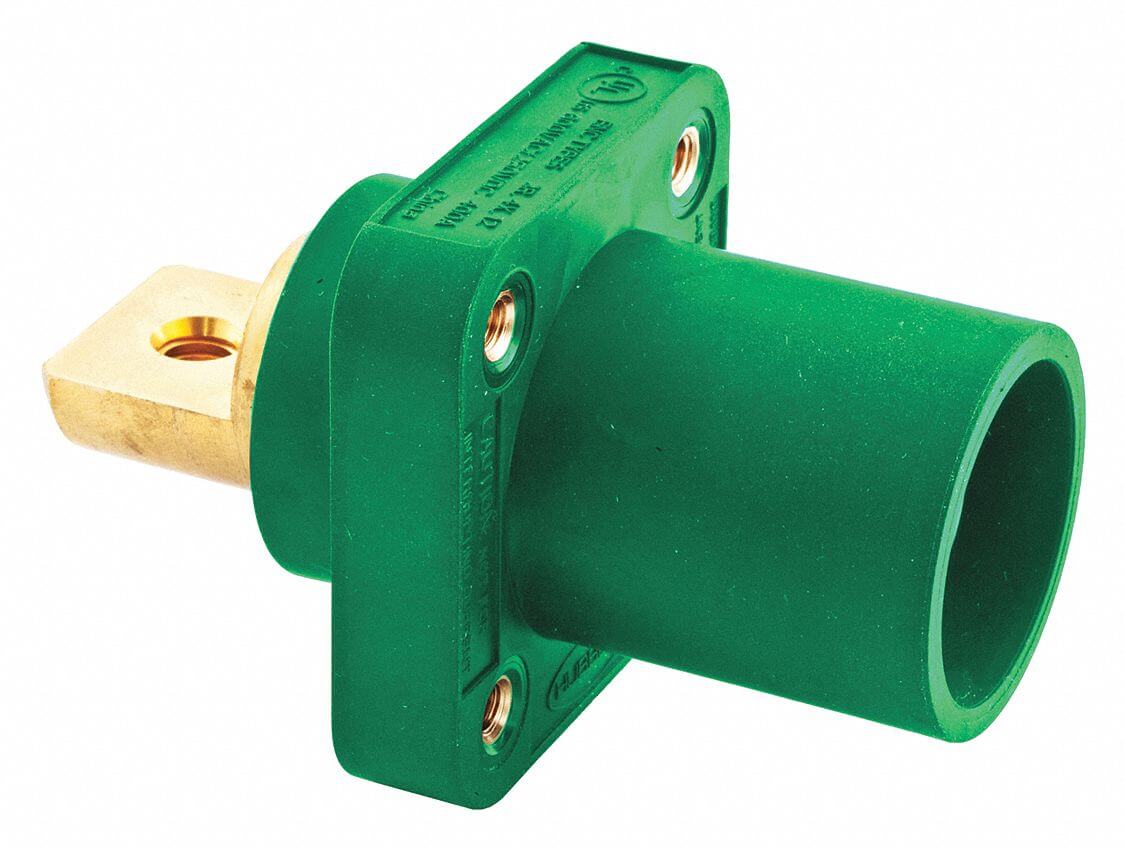

HUBBELL - BRYANT HBLMRBGN Male Bus Receptacle, 300/400A 600V AC/DC, Single Conductor, Green
Item: AF7BEKModel: HBLMRBGNCross Ref: 20TR88
7 In Stock
Ships within 2 days via
5.00% off
€79.71 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Single Pole Connector |
| Amps | 400A |
| Cable Range | 4/0 AWG to #4 AWG |
| Cable Size Range (in.) | #4 to 4/0 |
| Color | Green |
| Compatible With Series | Series 16 |
| Conductor Material | Brass |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Display Qty | 1 |
| End Type | Taper Nose |
| Exposure Conditions | Indoor Dry |
| Flange Shape | Square |
| Housing Color | Green |
| Housing Material | Thermoplastic Elastomer |
| Included Mounting Hardware | Yes |
| Male/female | Male |
| Material | TPE |
| Mounting Location | Panel |
| Mounting Style | Threaded Mounting |
| Nema Enclosure Rating | Nema 3R, Nema 4X, Nema 12 |
| Nema Rating | NEMA 3R, NEMA 4X, NEMA 12 |
| No. Of Poles | 1 |
| Overall Length | 3.61" |
| Overall Width | 2 1/5" |
| Phase | 1 |
| Power Terminals Wire Size | #4 to 4/0 |
| Product Datasheet | hubbell-wiring-device-kellems-hblmrbgn.pdf |
| Single Pole Device Style | Taper Nose |
| Terminal Connection Type | Bus Bar |
| Type | Receptacle |
| Voltage | 600V AC/250V DC |
| Watts | 240000 W |
| Wire Size | #4/0 AWG to #4 AWG , 4 AWG to 4/0 AWG |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 9.17 |
| Ship width (cm) | 5.59 |
| HS code | 8536698000 |
| Country of Origin | CN |
Documentation:
