HUBBELL WIRING DEVICE-KELLEMS HBL8421C Angle Plug 15-20p 20a 250vac 3 Phase
Item: AE3CETModel: HBL8421CCross Ref: 5C794
7 In Stock
Ships within 2 days via
5.00% off
€134.34 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Angle Plug |
| Amps | 20A |
| Anti Microbial | No |
| Color | Black, White |
| Connection Orientation | Angled |
| Cord Size | 0.39" to 0.775" |
| For Max. Cable Dia. | 0.775" |
| For Min. Cable Dia. | 0.39" |
| Grade | Grade Industrial |
| Grounding | Grounded |
| Housing Color | Black, White |
| Housing Material | Nylon |
| Hp | 3 hp |
| Insulation Material | Nylon |
| Ip Rating | IP20 |
| Material | Nylon |
| Nema Plug Configuration | 15-20P |
| No. Of Blades | 4 |
| No. Of Poles | 3 |
| No. Of Wires | 4 |
| Phase | 3 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-hbl8421c.pdf |
| Resistance Properties | Corrosion Resistant |
| Voltage | 250V AC |
| Wire Connection Type | Screw Terminal |
| Wiring Style | Standard |
| Wiring Type | Standard |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 6.1 |
| Ship length (cm) | 10.67 |
| Ship width (cm) | 6.35 |
| HS code | 8536698000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Color | Voltage | Amps | No. Of Poles | Phase | Housing Color | Housing Material | For Max. Cable Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL8215CAT | Clear | 125V AC | 15A | 2 | 1 | Clear | Polycarbonate | 0.655" | €54.72 | |
 |

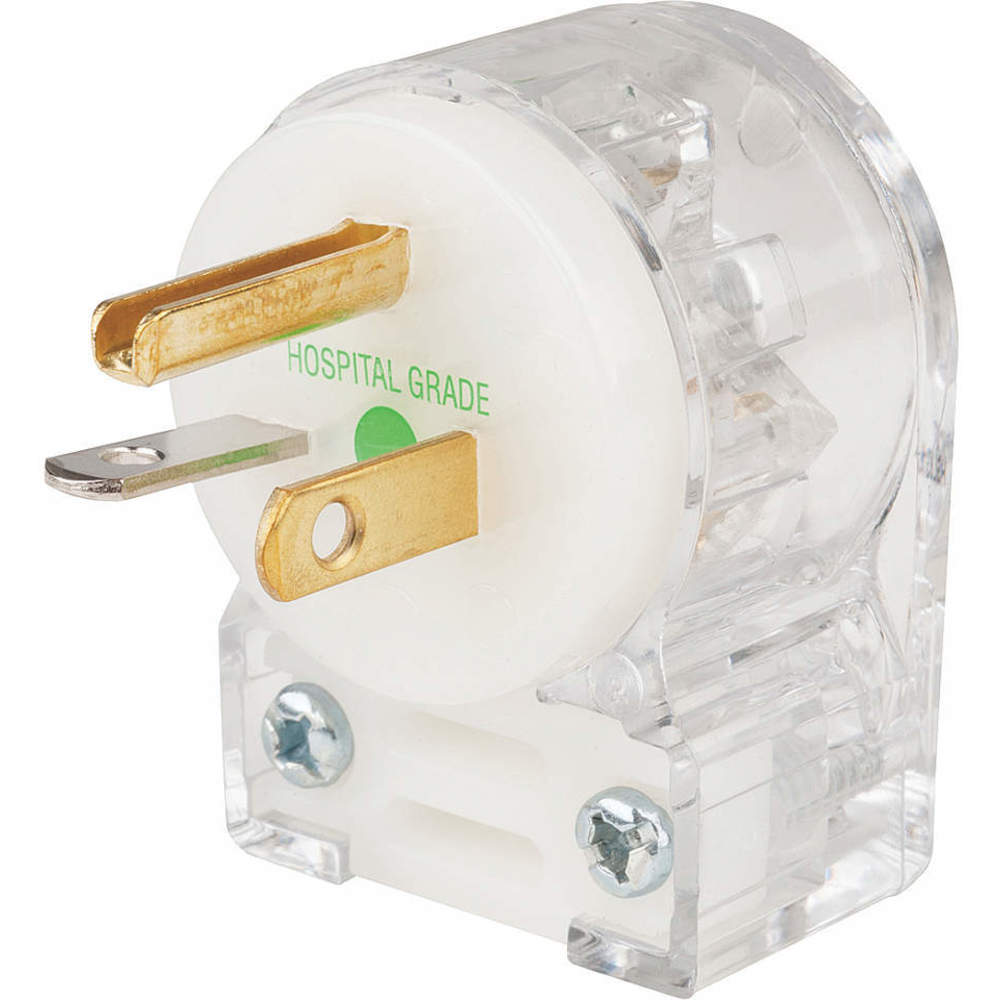

HBL8315CAT | Clear | 125V AC | 20A | 2 | 1 | Clear | Polycarbonate | 0.655" | €67.32 | |
 |
HBL8411C | Black, White | 125/250V AC | 20A | 3 | 3 | Black, White | Nylon | 0.775" | €133.79 | |
 |
HCMA03C06 | Black | - | - | - | - | - | - | - | €99.70 | |
 |
PG2005PA010 | Gray | 600V | 20A | - | - | - | - | - | €338.25 | |
 |

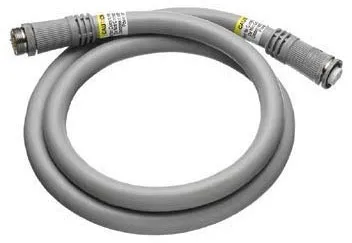

PG2306PB001 | Gray | 600V | 20A | - | - | - | - | - | €407.88 |
