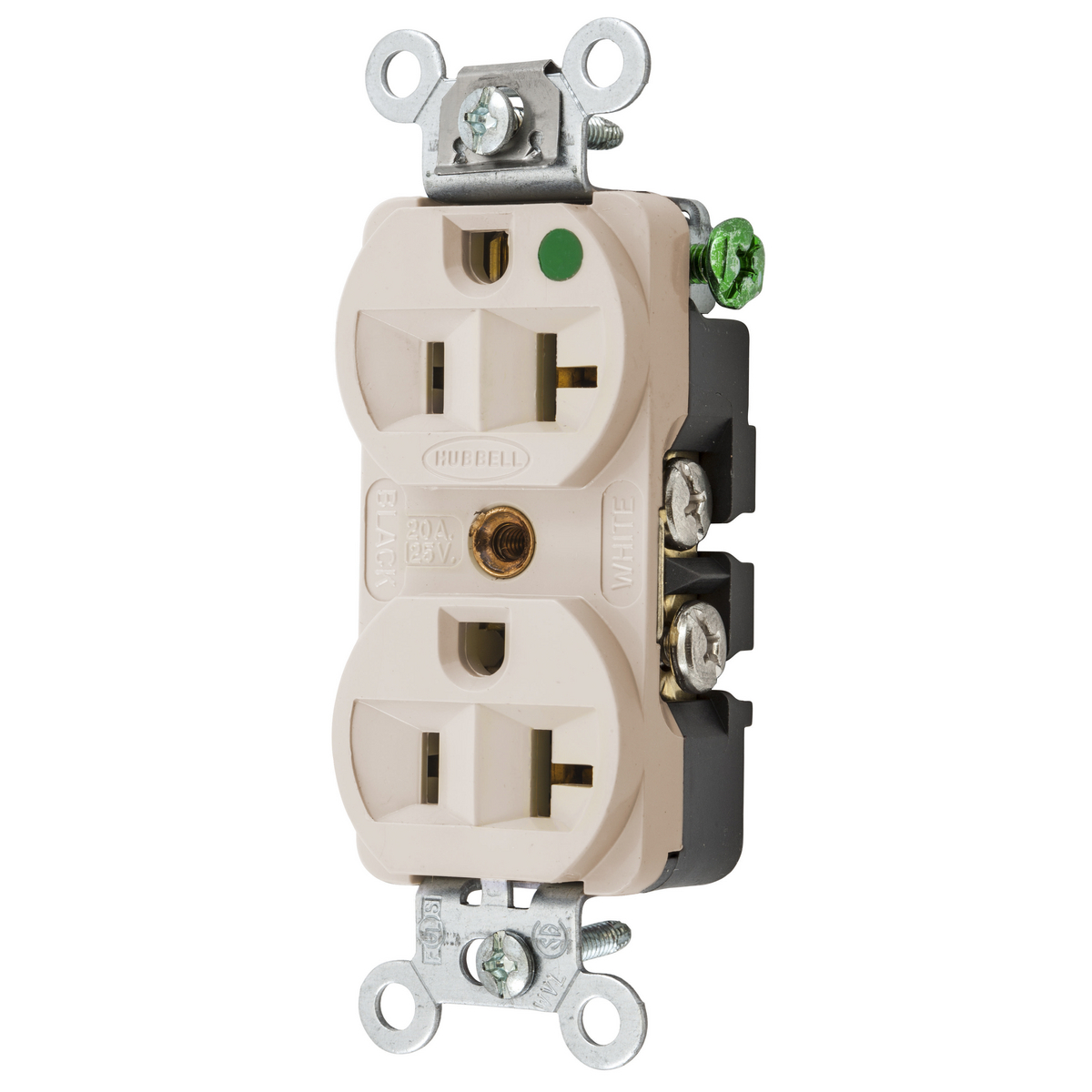

HUBBELL WIRING DEVICE-KELLEMS HBL8300HLA Receptacle, Hospital Grade, Standard Duplex, Flush Mount, 20A
Item: BC8ADBModel: HBL8300HLACross Ref: 49YK92
7 In Stock
Ships within 2 days via
10.00% off
€53.77 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 20A |
| Color | Almond |
| Connection Orientation | Straight |
| Connectivity | Back And Side Wired Screw Terminals |
| Cover Type | No Cover |
| Current Rating | 20A |
| Dielectric Strength | Withstands 2,000V minimum |
| Face Plate Height | 2.7" |
| Gfci | No |
| Grade | Hospital Grade Fed. Spec. |
| Grounding | Grounded |
| Height | 1.05" |
| Housing Color | Light Almond |
| Includes | Grounding Staple, Mounting Hardware, Wall Plate Or Weatherproof Cover |
| Includes Mounting Hardware | Yes |
| Ip Rating | IP20 |
| Length | 3 7/25" |
| Material | Thermoplastic |
| Max. Hp | 1 hp |
| Mount Hole Center-to-center Height | 3.3" |
| Mount Type | Flush |
| Mounting | Screw Mounting |
| Nema Rating | NEMA 5-20R |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-hbl8300hla.pdf |
| Resistance Property | General Purpose |
| Special Resistance Properties | Impact Resistant |
| Standards | Csa Certified C22.2 No. 42 File 285, Federal Specification W-C-596, Nema Wd-6, Ul 498 File E2186 |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-0 |
| Voltage | 125V |
| Voltage Rating | 125V AC |
| Wattage | 2500 W |
| Width | 1.33" |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Wire Size | 12 AWG to 10 AWG |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 2.67 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 3.38 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Current Rating | Housing Color | Wire Size | Color | Nema Rating | Material | Wattage | Max. Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL8300HW | 20A | White | 12 AWG to 10 AWG | White | NEMA 5-20R | Thermoplastic | 2500 W | 1 hp | €67.41 | |
 |
HBL8200HG | 15A | Gray | 14 AWG to 10 AWG | Gray | NEMA 5-15R | Thermoplastic | 1875 W | 1/2 hp | €34.61 | |
 |
HBL8200HI | 15A | Ivory | 14 AWG to 10 AWG | Ivory | NEMA 5-15R | Thermoplastic | 1875 W | 1/2 hp | €39.81 | |
 |
HBL8200HRED | 15A | Red | 14 AWG to 10 AWG | Red | NEMA 5-15R | Nylon | 1875 W | 1/2 hp | €38.98 | |
 |
HBL8200HW | 15A | White | 14 AWG to 10 AWG | White | NEMA 5-15R | Thermoplastic | 1875 W | 1/2 hp | €30.49 | |
 |
HBL8300H | 20A | Brown | 12 AWG to 10 AWG | Brown | NEMA 5-20R | Thermoplastic | 2500 W | 1 hp | €63.17 | |
 |
HBL8300HG | 20A | Gray | 12 AWG to 10 AWG | Gray | NEMA 5-20R | Thermoplastic | 2500 W | 1 hp | €62.07 |
