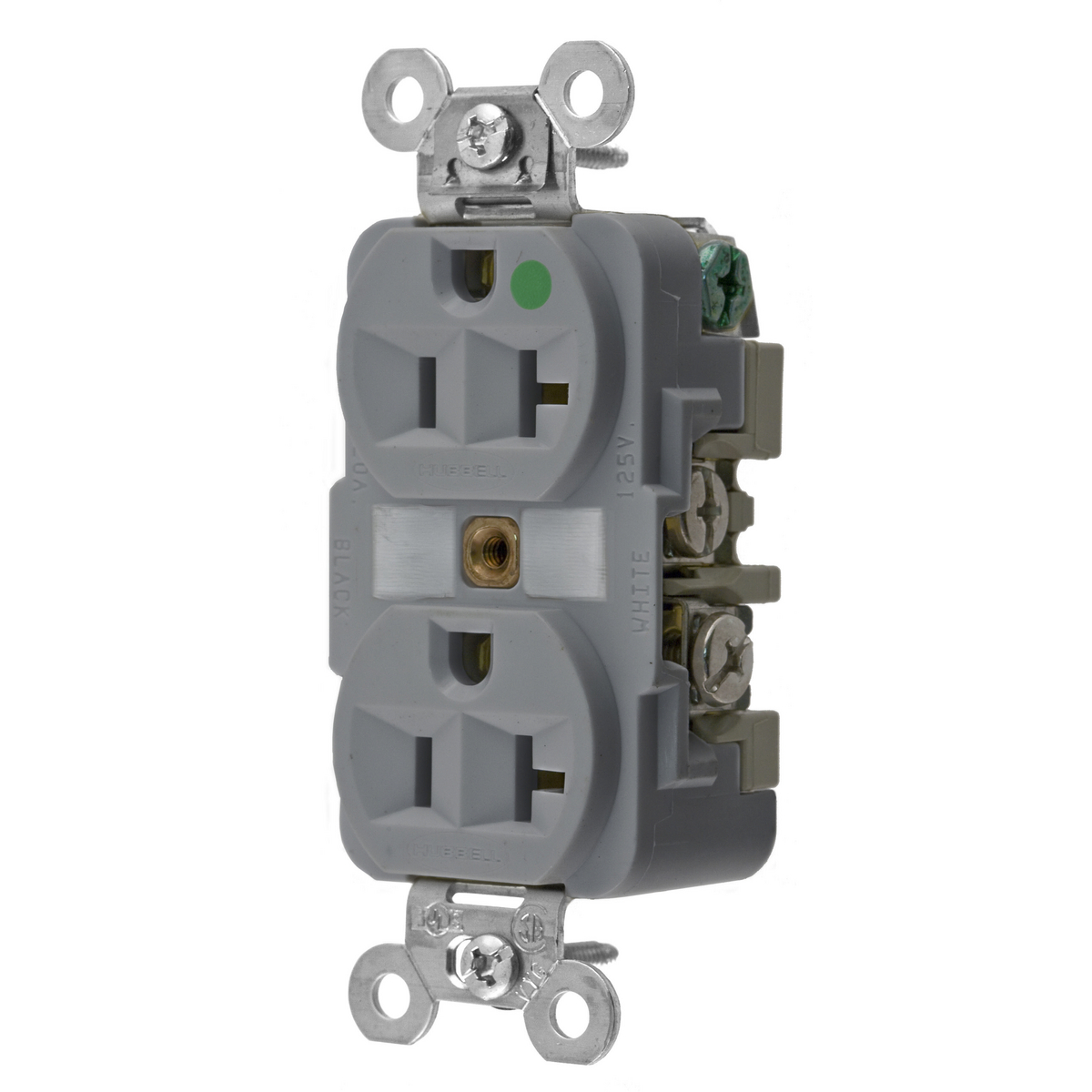

HUBBELL WIRING DEVICE-KELLEMS HBL8300GY Receptacle, Duplex, 2-Pole, 3-Wire Grounding, 20A, 125V, Gray
Item: AE7LFCModel: HBL8300GYCross Ref: 5Z826
7 In Stock
Ships within 2 days via
5.00% off
€67.18 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 20A |
| Application Environment | Heavy Use Hospital Grade |
| Color | Gray |
| Connection Orientation | Straight |
| Connectivity | Back And Side Wired Screw Terminals |
| Cover Type | No Cover |
| Dielectric Strength | Withstands 2,000V minimum |
| Duty | Extra Heavy |
| Face Plate Height | 2.7" |
| Gfci | No |
| Grade | Hospital Grade Fed. Spec |
| Grounding | Grounded |
| Height | 1.19" |
| Housing Color | Gray |
| Included | Grounding Clip, Mounting Hardware, Wall Plate Or Weatherproof Cover |
| Included Mounting Hardware | Yes |
| Ip Rating | IP20 |
| Length | 3 7/25" |
| Material | Thermoplastic |
| Max. Hp | 1 hp |
| Mount Hole Center To Center Height | 3.3" |
| Mounting | Screw Mounting |
| Mounting Type | Flush |
| Nema Rating | NEMA 5-20R |
| Nema Receptacle Configuration | NEMA 5-20R |
| No. Of Gangs | 1 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Outlet Type | Duplex |
| Phase | 1 |
| Polarized | Yes |
| Power Indicator | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl8300gy.pdf |
| Receptacle Type | Duplex |
| Resistance Property | General Purpose |
| Special Resistance Properties | Impact Resistant |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-0 |
| Voltage | 125V , 125V AC |
| Wattage | 2500 W |
| Watts | 2500 W |
| Weather Resistance | No |
| Weather Resistant | No |
| Width | 1.65" |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminal |
| Wire Size | 12 AWG to 10 AWG |
| Wiring Method | Back And Side |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 3.02 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 4.19 |
| HS code | 8536490080 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Color | Voltage | Amps | Wire Size | Material | Watts | Height | Housing Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL8200 | Brown | 125V AC | 15A | 14 AWG to 10 AWG | Thermoplastic | 1875 W | 1.19" | Brown | €70.98 | |
 |
HBL8300 | Brown | 125V | 20A | 12 AWG to 10 AWG | Thermoplastic | 2500 W | 1.19" | - | €85.74 | |
 |
HBL8200ILGY | Gray | 125V AC | 15A | 14 AWG to 10 AWG | Polycarbonate | 1875 W | 1.05" | Gray | €105.35 | |
 |
HBL8200ILW | White | 125V AC | 15A | 14 AWG to 10 AWG | Polycarbonate | 1875 W | 1.05" | White | €112.11 | |
 |
HBL8300ILGY | Gray | 125V AC | 20A | 12 AWG to 10 AWG | Polycarbonate | 2500 W | 1.05" | Gray | €103.40 | |
 |
HBL8300ILW | White | 125V AC | 20A | 12 AWG to 10 AWG | Polycarbonate | 2500 W | 1.05" | White | €118.66 | |
 |
IG8200R | Red | 125V AC | 15A | 14 AWG to 10 AWG | Nylon | 1875 W | - | Red | €77.48 |
