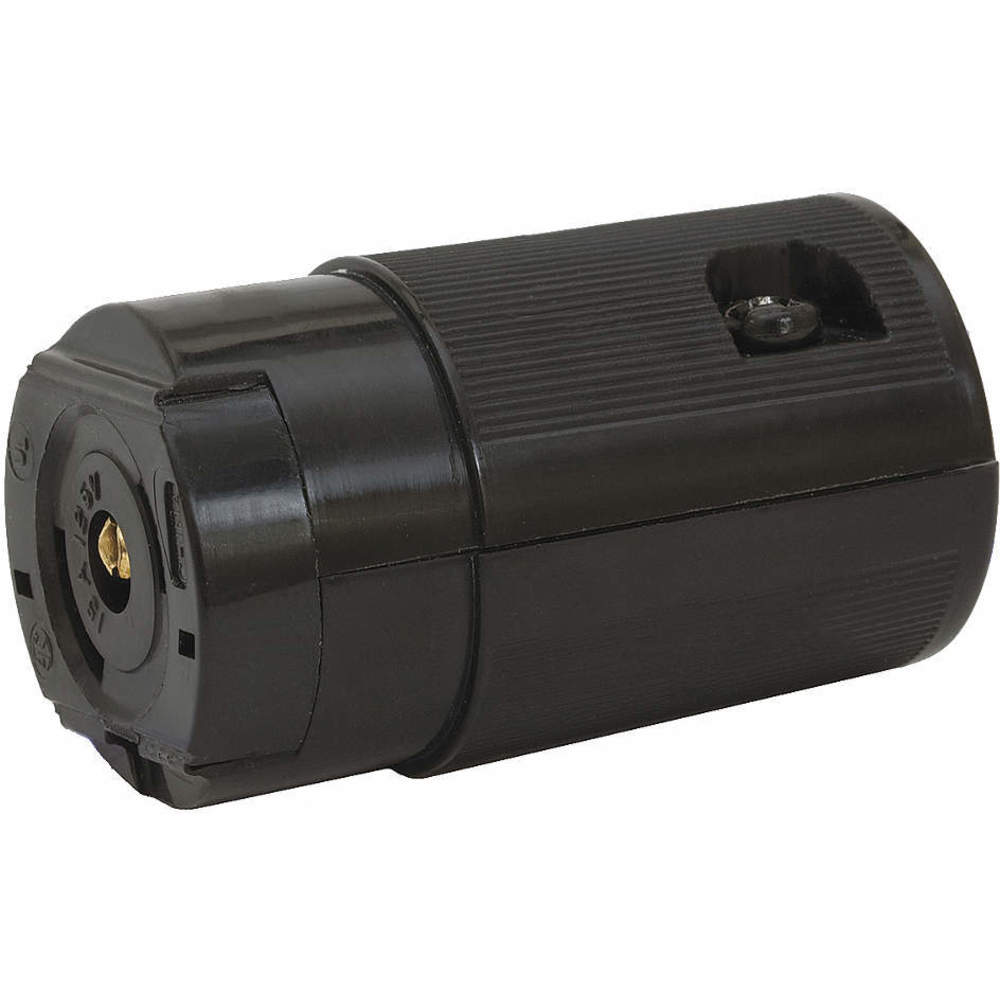

HUBBELL WIRING DEVICE-KELLEMS HBL7593V Female Connector Body, 15A, 125VAC, 2-Pole, 3-Wire Grounding, Black
Item: AE7YYRModel: HBL7593VCross Ref: 6C145
7 In Stock
Ships within 2 days via
10.00% off
€51.73 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Connector |
| Amps | 15A |
| Cable Range | 0.281" to 0.421" |
| Cap Type | No Cap, Cover |
| Color | Black |
| Conductor | #14 AWG to #12 AWG |
| Conductor Range | #14 AWG to #12 AWG |
| Connection Orientation | Straight |
| Connectivity | Insulation Displacement |
| Cord Dia. Range | 0.300"-0.430" |
| Current Rating | 15A |
| Dielectric Strength | Withstands 2,000V minimum |
| For Environment | Dry |
| For Location | Indoor |
| For Maximum Cable Diameter | 0.43" |
| For Minimum Cable Diameter | 0.3" |
| Grounding | Grounded |
| Horsepower Rating | 1 hp |
| Housing Color | Black |
| Housing Material | Nylon |
| Insulation | Insulated Body |
| Ip Rating | IP20 |
| Length | 1.19" |
| Market | Industrial |
| Material | Nylon |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 12 AWG |
| Midget Locking | Yes |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 14 AWG |
| Mounting | Cord Mounted |
| Nema Rating | NEMA ML-2R |
| Nema Receptacle Configuration | ML2-15R |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Outside Diameter | 1.188" |
| Overall Length | 1.19" |
| Product Datasheet | hubbell-wiring-device-kellems-hbl7593v.pdf |
| Resistance Properties | Shatter And Crack Resistant |
| Shrouded | No |
| Temp. Rating | Maximum Continuous: 75 Deg. C; Minimum Continuous:-40 Deg. C w/o impact,-25 Deg. with impact. |
| Ul 94 Flammability Rating | HB |
| Voltage | 125V |
| Voltage Rating | 125V AC |
| Width | 1.19" |
| Wire Connection Type | Screw Terminals |
| Wire Size | 18 AWG to 14 AWG |
| Wiring Style | Hinged |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 5.03 |
| Ship length (cm) | 3.02 |
| Ship width (cm) | 3.02 |
| HS code | 8536698000 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Current Rating | Voltage Rating | Number Of Poles | Number Of Wires | Housing Color | Resistance Properties | Phase | Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL7464V | 15A | 125V AC | 2 | 2 | Black | Shatter And Crack Resistant | Single | 18 AWG to 14 AWG | €38.05 | |
 |
HBL4779VY | 15A | 277V AC | 2 | 3 | Yellow | Impact Resistant | Single | 18 AWG to 10 AWG | €41.44 | |
 |
HBL2313VBK | 20A | 125V AC | 2 | 3 | Black | Impact Resistant | Single | 14 AWG to 8 AWG | €46.57 | |
 |
HBL2323VBK | 20A | 250V AC | 2 | 3 | Black | Impact Resistant | Single | 14 AWG to 8 AWG | €41.57 | |
 |
HBL2623VBK | 30A | 250V AC | 2 | 3 | Black | Impact Resistant | 1 | 14 AWG to 8 AWG | €90.89 | |
 |
HBL4579VBK | 15A | 250V AC | 2 | 3 | Black | Impact Resistant | Single | 18 AWG to 12 AWG | €45.11 | |
 |
HBL4729VBK | 15A | 125V AC | 2 | 3 | Black | Impact Resistant | Single | 18 AWG to 12 AWG | €37.82 |
