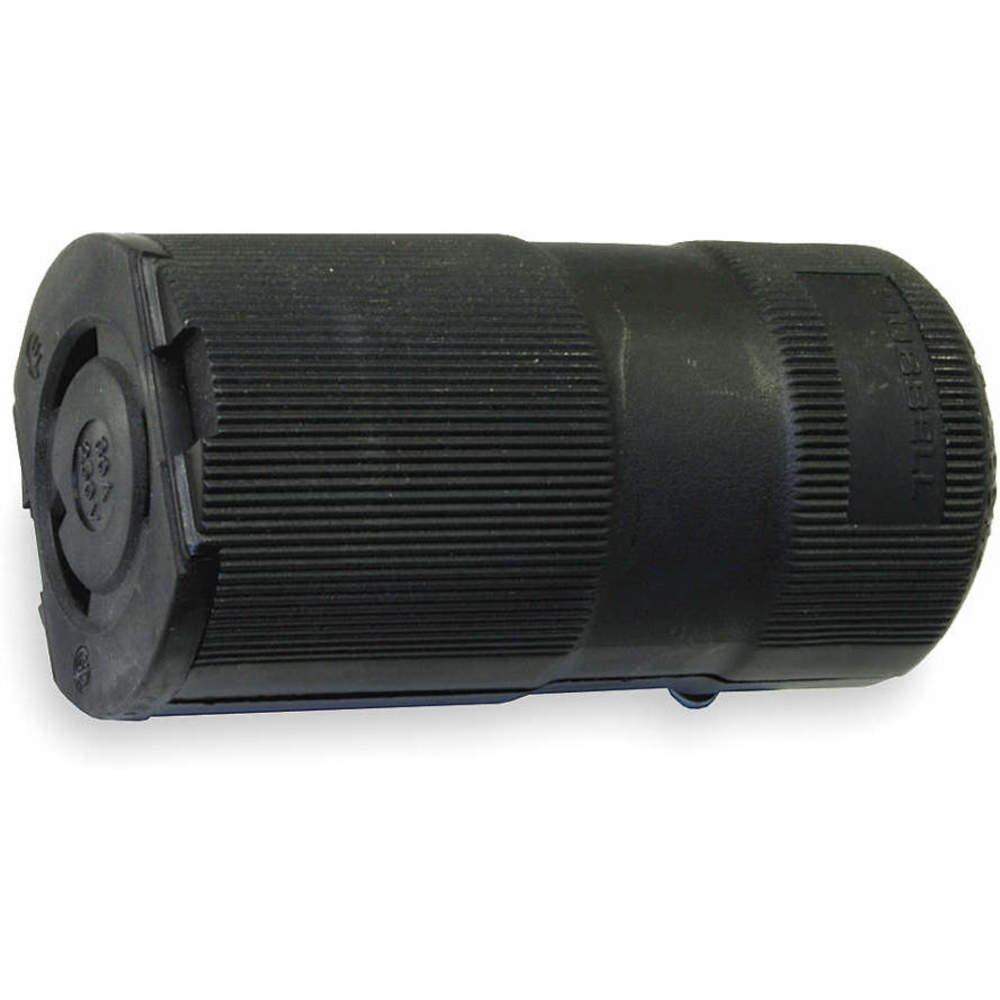

HUBBELL WIRING DEVICE-KELLEMS HBL2623VBK Connector, 30A, 250V, 2-Pole, 3-Wire Grounding
Item: AD7YGNModel: HBL2623VBKCross Ref: 4HD33
7 In Stock
Ships within 2 days via
10.00% off
€81.80 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Connector |
| Amps | 30A |
| Body Material | Nylon |
| Cap Type | No Cap, Cover |
| Color | Black |
| Connection Orientation | Straight |
| Connectivity | Pressure Terminal Screws |
| Contact Material | Brass |
| Cord Dia. Range | 0.590"-0.930" |
| Cord Size | 0.59" to 0.93" |
| Current Rating | 30A |
| Dielectric Strength | Withstands 2,000V minimum |
| For Environment | Dry |
| For Location | Indoor |
| For Maximum Cable Diameter | 0.93" |
| For Minimum Cable Diameter | 0.56" |
| Grounding | Grounded |
| Height | 1.78" |
| Housing Color | Black |
| Insulation | Insulated Body |
| Insulation Material | Thermoplastic |
| Ip Rating | IP20 |
| Length | 3 1/2" |
| Market | Industrial |
| Material | Nylon |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 8 AWG |
| Midget Locking | No |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 14 AWG |
| Mounting | Cord Mounted |
| Nema Rating | NEMA L6-30R |
| Nema Receptacle Configuration | L6-30R |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Outside Diameter | 1.781" |
| Overall Length | 3.5" |
| Phase | 1 |
| Product Datasheet | hubbell-wiring-device-kellems-hbl2623vbk.pdf |
| Resistance Properties | Impact Resistant |
| Shrouded | No |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 250V AC |
| Width | 1.78" |
| Wire Connection Type | Screw Terminals |
| Wire Size | 14 AWG to 8 AWG |
| Wiring Style | Hinged |
| Wiring Type | Hinged |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 4.52 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 4.52 |
| HS code | 8536698000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Current Rating | Voltage Rating | Number Of Poles | Number Of Wires | Housing Color | Resistance Properties | Phase | Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

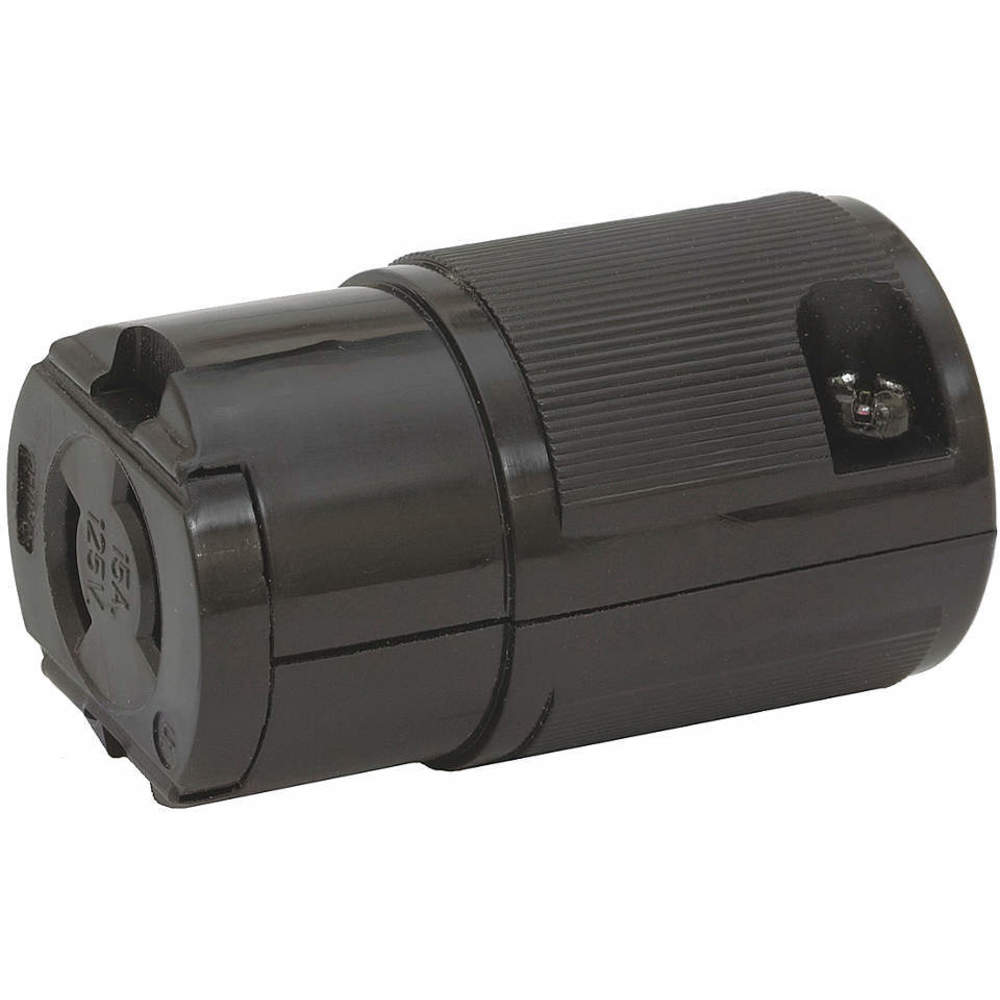

HBL7464V | 15A | 125V AC | 2 | 2 | Black | Shatter And Crack Resistant | Single | 18 AWG to 14 AWG | €38.05 | |
 |

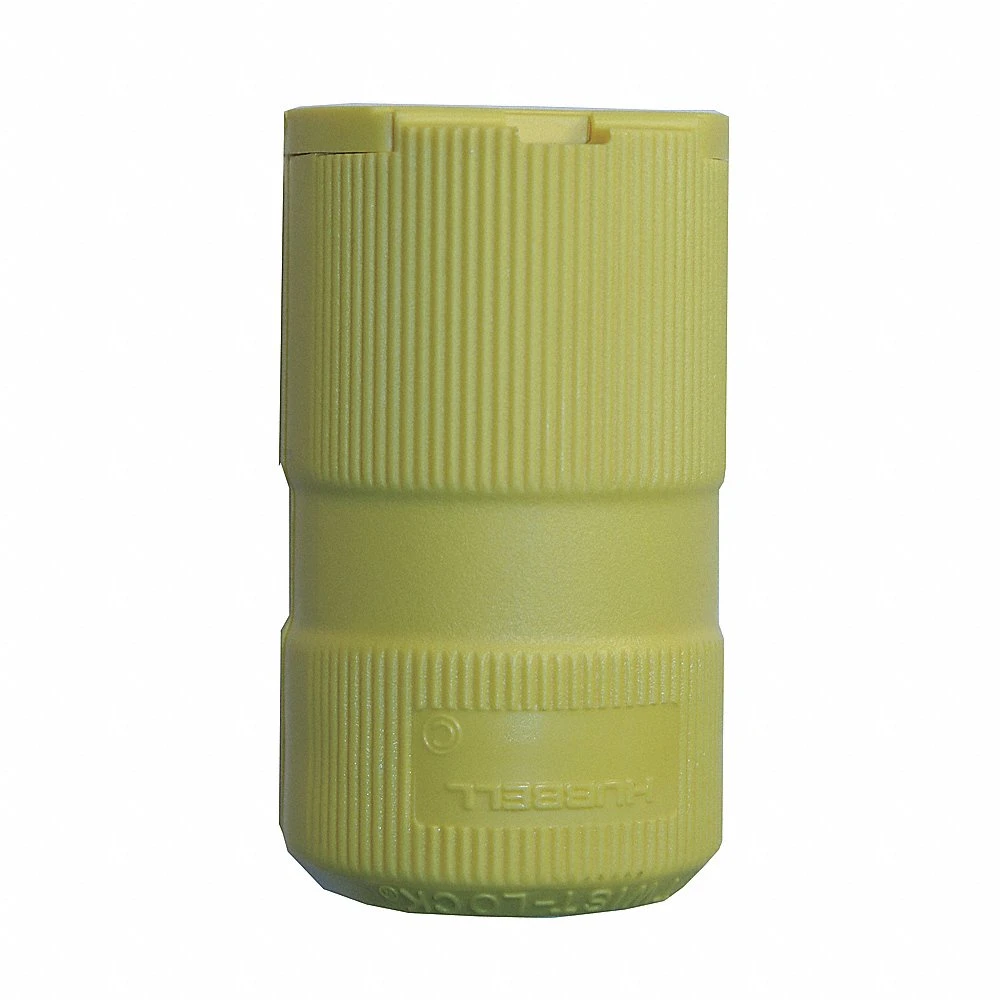

HBL4779VY | 15A | 277V AC | 2 | 3 | Yellow | Impact Resistant | Single | 18 AWG to 10 AWG | €41.44 | |
 |

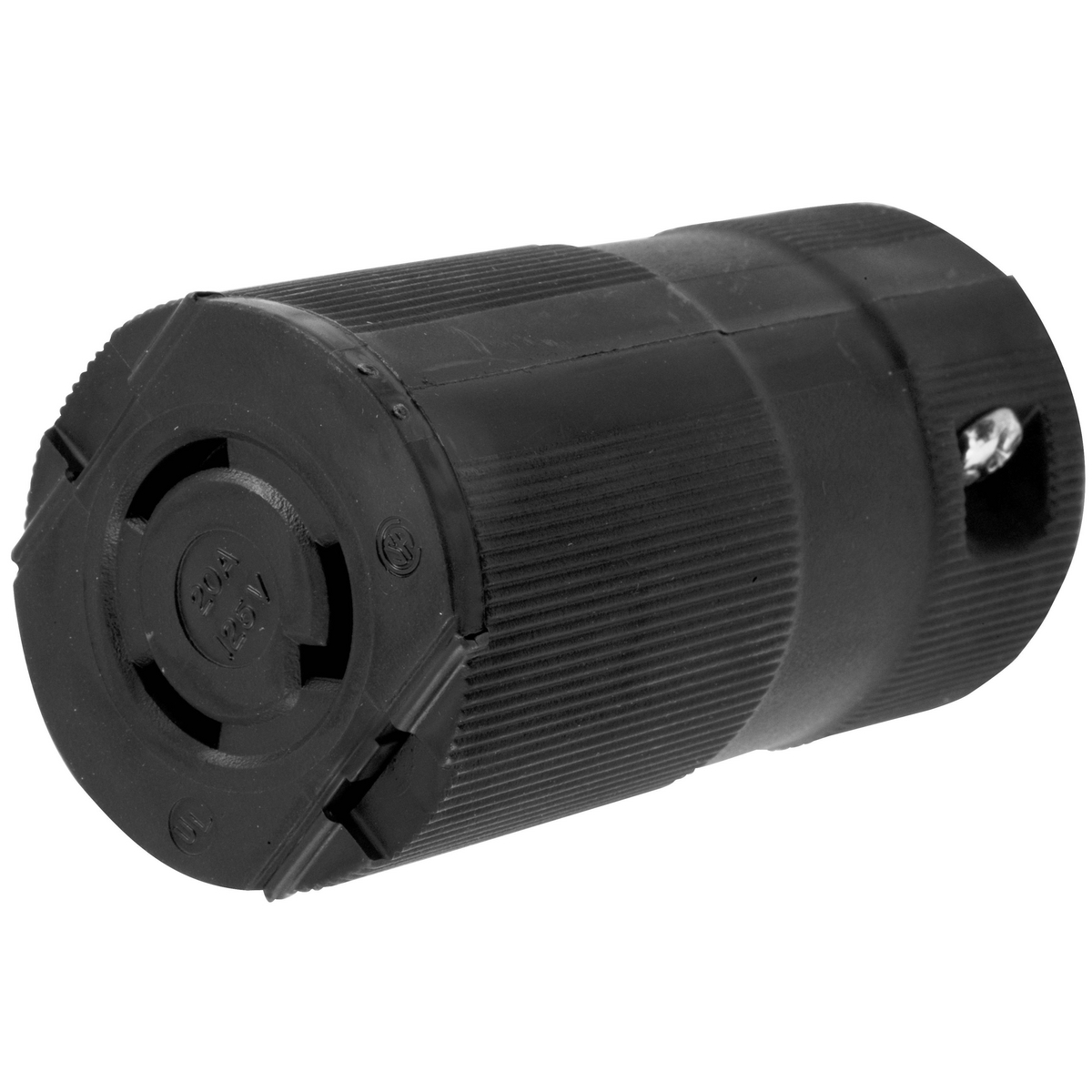

HBL2313VBK | 20A | 125V AC | 2 | 3 | Black | Impact Resistant | Single | 14 AWG to 8 AWG | €46.57 | |
 |
HBL2323VBK | 20A | 250V AC | 2 | 3 | Black | Impact Resistant | Single | 14 AWG to 8 AWG | €41.57 | |
 |

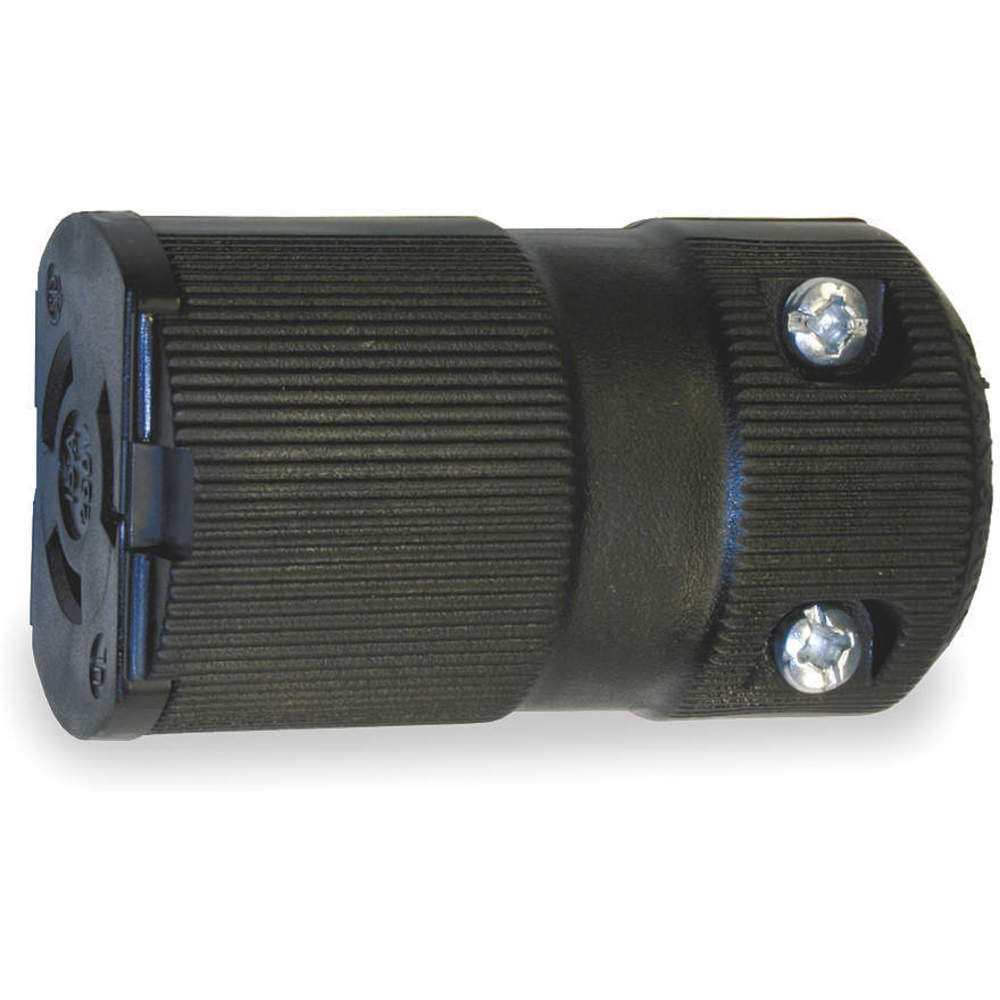

HBL4579VBK | 15A | 250V AC | 2 | 3 | Black | Impact Resistant | Single | 18 AWG to 12 AWG | €45.11 | |
 |
HBL4729VBK | 15A | 125V AC | 2 | 3 | Black | Impact Resistant | Single | 18 AWG to 12 AWG | €37.82 | |
 |

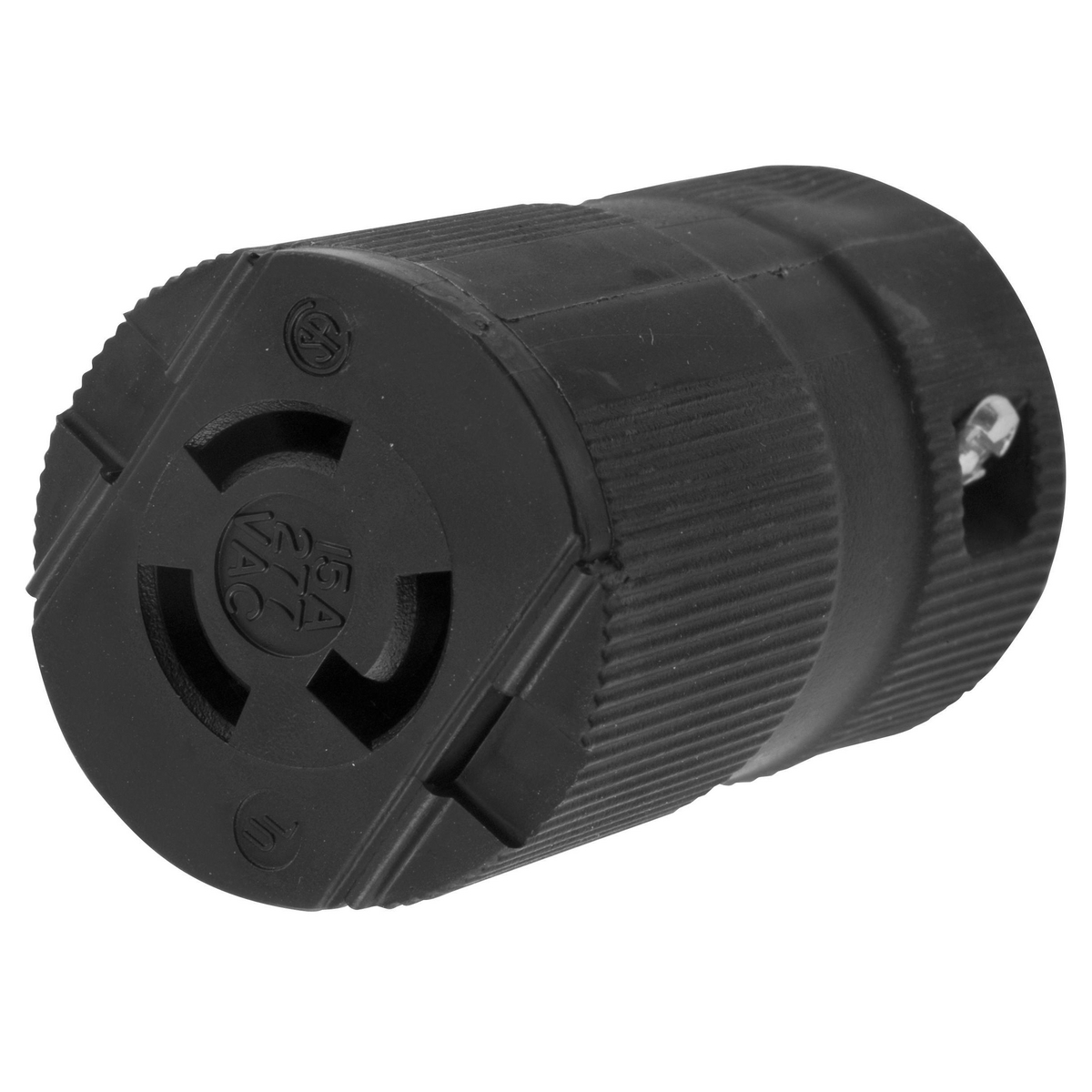

HBL4779VBK | 15A | 277V AC | 2 | 3 | Black | Impact Resistant | Single | 18 AWG to 10 AWG | €57.59 |
