HUBBELL WIRING DEVICE-KELLEMS HBL69W48 Receptacle, Watertight, 30A, 250V, 2 Pole, 3 Wire, Yellow
Item: AH8XNYModel: HBL69W48Cross Ref: 39AW71
7 In Stock
Ships within 2 days via
10.00% off
€256.34 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Watertight Receptacle |
| Afci | No |
| Amps | 30A |
| Color | Yellow |
| Connection Orientation | Straight |
| Contact Material | Nickel-Plated Brass |
| Cover Type | Flip Up Cover |
| Current Rating | 30A |
| Flange Shape | Rectangular |
| Flange Type | Flanged |
| Grade | Grade Industrial |
| Height | 2 23/25" |
| Housing Color | Yellow |
| Housing Material | Thermoplastic Elastomer |
| Insulation Material | Thermoplastic Elastomer |
| Ip Rating | IP69K |
| Length | 4 14/25" |
| Market | Industrial |
| Material | Nylon |
| Maximum Operating Temperature | 60°C |
| Maximum Wire Size | 8 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 18 AWG |
| Mounting Type | Flush |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12 |
| Nema Rating | NEMA L6-30R |
| Nema Receptacle Configuration | L6-30R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-hbl69w48.pdf |
| Resistance Properties | Impact Resistant, Watertight |
| Shrouded | No |
| Type | Non Shrouded |
| Voltage | 250V |
| Voltage Rating | 250V AC |
| Wire Connection Type | Screw Terminals |
| Wire Size | 18 AWG to 8 AWG |
| Wire Type | Standard |
| Wiring Style | Standard |
| Wiring Type | Standard |
Shipping Info:
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 7.42 |
| Ship length (cm) | 11.58 |
| Ship width (cm) | 7.87 |
| Country of Origin | US |
Product Details:
- With Lift Cover
Documentation:
Product Variants
| Product | Model | Phase | Number Of Poles | Current Rating | Voltage Rating | Number Of Wires | Wire Size | Height | Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL65W49 | 1 | 2 | 15A | 250V AC | 3 | 18 AWG to 10 AWG | 2.66" | 15A | €229.82 | |
 |

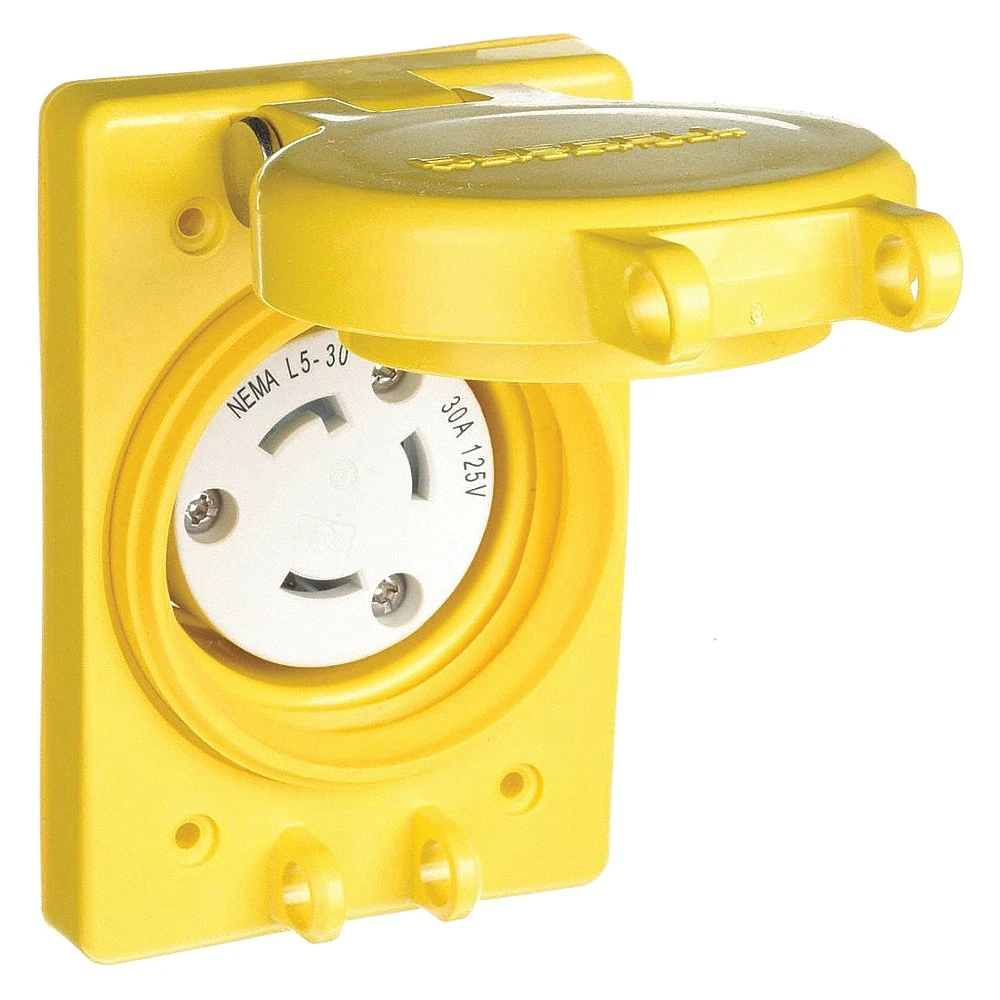

HBL69W47 | 1 | 2 | 30A | 125V AC | 3 | 18 AWG to 8 AWG | 2 23/25" | 30A | €274.96 | |
 |
HBL69W49 | 1 | 2 | 30A | 277V AC | 3 | 18 AWG to 8 AWG | 2 23/25" | 30A | €287.85 | |
 |
HBL67W76 | 3 | 3 | 20A | 480V AC | 4 | 18 AWG to 8 AWG | 2 23/25" | 20A | €256.24 | |
 |

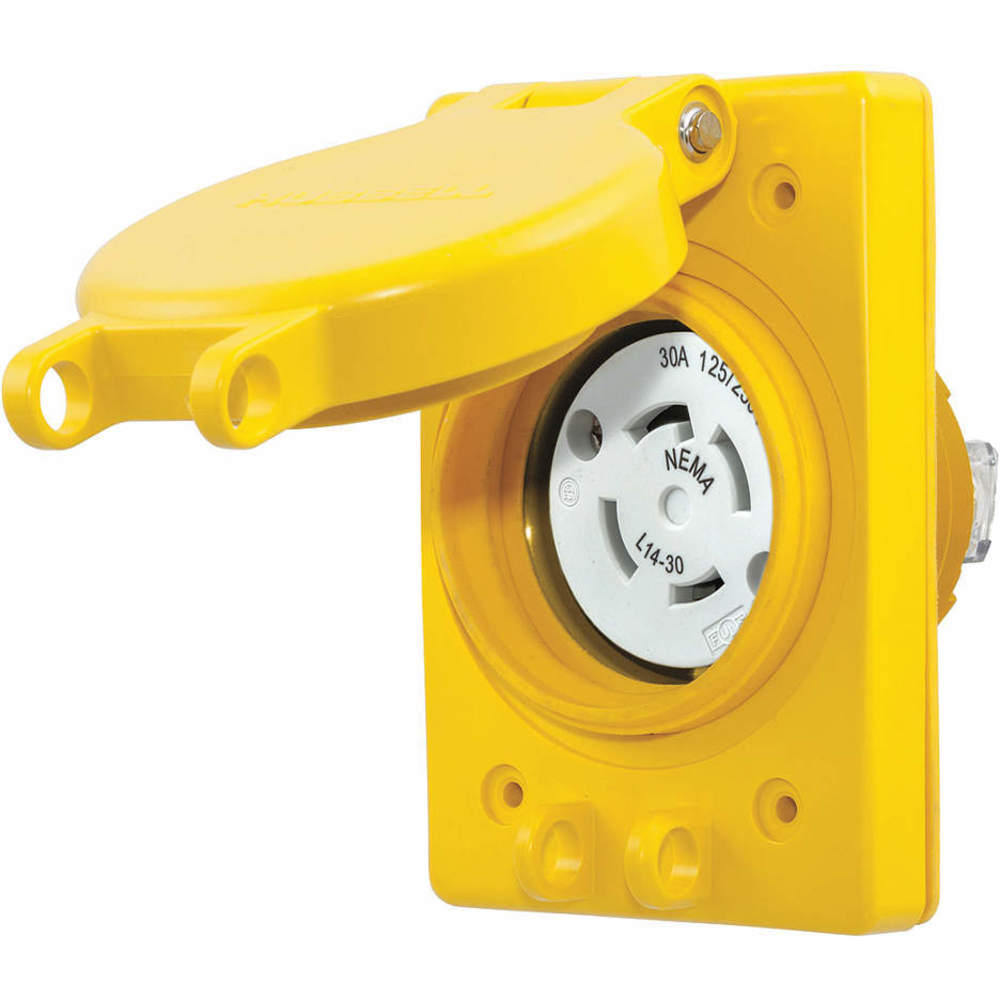

HBL69W74 | 1 | 3 | 30A | 125/250V AC | 4 | 18 AWG to 8 AWG | 2 23/25" | 30A | €305.31 | |
 |
HBL69W77 | 3 | 3 | - | - | - | 18 AWG to 8 AWG | 2 23/25" | 30A | €299.24 | |
 |

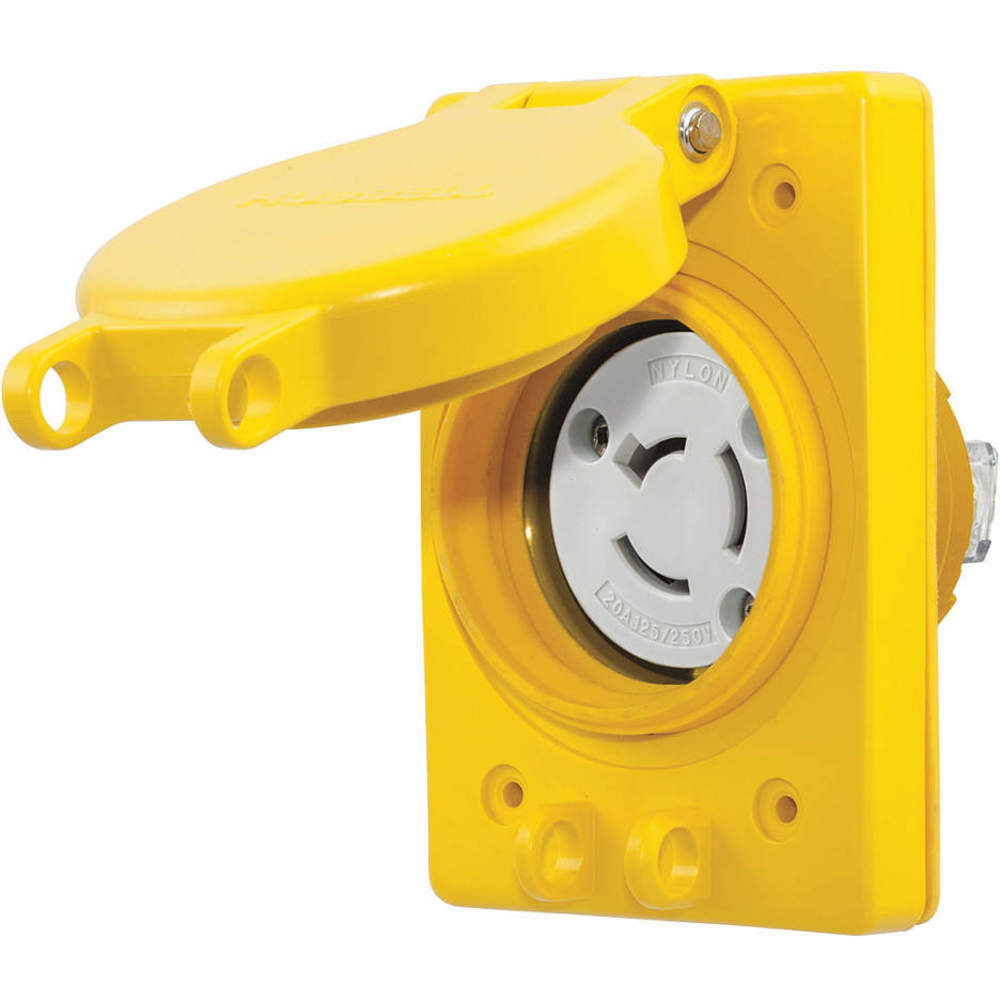

HBL67W08 | 1 | 3 | 20A | 125/250V AC | 3 | 18 AWG to 8 AWG | 3.46" | 20A | €315.67 |
