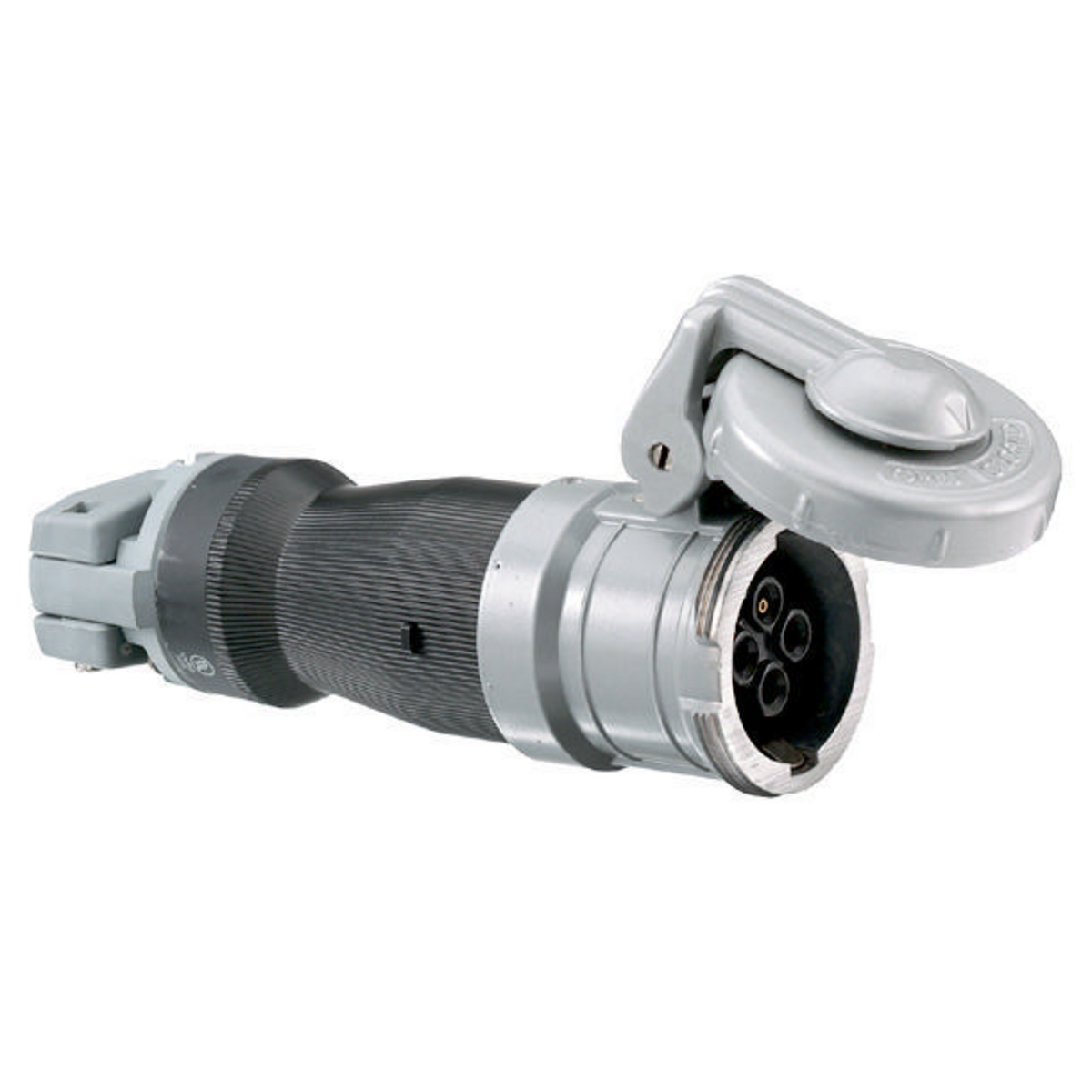

HUBBELL WIRING DEVICE-KELLEMS HBL560CS1W Pin And Sleeve Connector, Female, 60 A, 600 VAC, 3 Pole
Item: AE4ARQModel: HBL560CS1WCross Ref: 5HJ38
7 In Stock
Ships within 2 days via
5.00% off
€966.47 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pin and Sleeve Connector |
| Amps | 60A |
| Cap Type | Spring Loaded Cap |
| Color | Gray |
| Compatible With Series | Ul 1686 Class 1 Insulgrip |
| Conductor Size | #6 AWG to #4 AWG |
| Connection Orientation | Straight |
| Exposure Conditions | Wateright |
| Features | Pin Chamber Confines Arcing Within The Interior Chamber, Spring Loaded, Gasketed Cover For Dust Tight Seal, Watertight Neoprene Sealing Glands For Reliable Seal |
| For Max. Cable Dia. | 1.45" |
| For Min. Cable Dia. | 1/2" |
| Grounding | Grounded |
| Grounding Style | Style 1 |
| Housing Color | Black, Gray |
| Housing Material | Thermoplastic |
| Housing Material Grade | Grade Valox 357 |
| Ip Rating | IP68, IP69K |
| Market | Industrial |
| Material | Composite |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 4 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 6 AWG |
| Mounting Style | Cord |
| Nema Enclosure Rating | NEMA 4X |
| No. Of Conductors | 5 |
| No. Of Poles | 4.0 |
| No. Of Wires | 5 |
| Outside Dia. | 3.8" |
| Overall Length | 10.1" |
| Phase | 3 |
| Power Indicating Light | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl560cs1w.pdf |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Reverse Service | No |
| Shrouded | Yes |
| Switch Rated | No |
| Type | Female Connector Body, Insulgrip Pin, Interchangeable, Sleeve |
| Ul 94 Flammability Rating | V-0 |
| Voltage | 600V AC/250V DC |
| Wire Connection Type | Screw Terminal |
Shipping Info:
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 9.65 |
| Ship length (cm) | 25.65 |
| Ship width (cm) | 9.65 |
| HS code | 8536698000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | No. Of Poles | Amps | Phase | Conductor Size | No. Of Wires | No. Of Conductors | Max. Wire Size | Min. Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL3100CS2W | 2.0 | 100A | 1 | #4 AWG to #2 AWG | 3 | 3 | 2 AWG | 4 AWG | €1,365.60 | |
 |
HBL360CS1W | 2.0 | 60A | 1 | #6 AWG to #4 AWG | 3 | 3 | 4 AWG | 6 AWG | €886.55 | |
 |
HBL360CS2W | 2.0 | 60A | 1 | #6 AWG to #4 AWG | 3 | 3 | 4 AWG | 6 AWG | €971.43 | |
 |
HBL4100CS1W | 3.0 | 100A | 3 | #4 AWG to #2 AWG | 4 | 4 | 2 AWG | 4 AWG | €1,220.18 | |
 |
HBL4100CS2W | 3.0 | 100A | 3 | #4 AWG to #2 AWG | 4 | 4 | - | - | €1,476.10 | |
 |
HBL430CS1W | 3.0 | 30A | 3 | #10 AWG to #8 AWG | 4 | 4 | 8 AWG | 10 AWG | €537.88 | |
 |
HBL430CS2W | 3.0 | 30A | 3 | #10 AWG to #8 AWG | 4 | 4 | 8 AWG | 10 AWG | €669.60 |
