HUBBELL WIRING DEVICE-KELLEMS HBL430CS2W Pin And Sleeve Connector, Female, 30 A, 600 VAC, 3 Pole
Item: AE4ARAModel: HBL430CS2WCross Ref: 5HJ21
7 In Stock
Ships within 2 days via
10.00% off
€602.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pin and Sleeve Connector |
| Amps | 30A |
| Cap Type | Spring Loaded Cap |
| Color | Gray |
| Compatible With Series | Ul 1686 Class 1 Insulgrip |
| Conductor Size | #10 AWG to #8 AWG |
| Connection Orientation | Straight |
| Current Rating | 30A |
| Exposure Conditions | Wateright |
| Features | Pin Chamber Confines Arcing Within The Interior Chamber, Spring Loaded, Gasketed Cover For Dust Tight Seal, Watertight Neoprene Sealing Glands For Reliable Seal |
| For Maximum Cable Diameter | 1.2" |
| For Minimum Cable Diameter | 0.375" |
| Grounding | Grounded |
| Grounding Style | Style 2 |
| Housing Color | Black, Gray |
| Housing Material | Thermoplastic |
| Housing Material Grade | Grade Valox 357 |
| Ip Rating | IP68, IP69K |
| Market | Industrial |
| Material | Composite |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 8 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 10 AWG |
| Mounting Style | Cord |
| Nema Enclosure Rating | NEMA 4X |
| Number Of Conductors | 4 |
| Number Of Poles | 3.0 |
| Number Of Wires | 4 |
| Outside Diameter | 3.74" |
| Overall Length | 8.38" |
| Phase | 3 |
| Power Indicating Light | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl430cs2w.pdf |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Reverse Service | No |
| Shrouded | Yes |
| Switch Rated | No |
| Ul 94 Flammability Rating | V-0 |
| Voltage Rating | 600V AC/250V DC |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 9.5 |
| Ship length (cm) | 21.29 |
| Ship width (cm) | 9.5 |
| HS code | 8536698000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Phase | Number Of Poles | Number Of Wires | Current Rating | Grounding Style | Amps | Number Of Conductors | Conductor Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

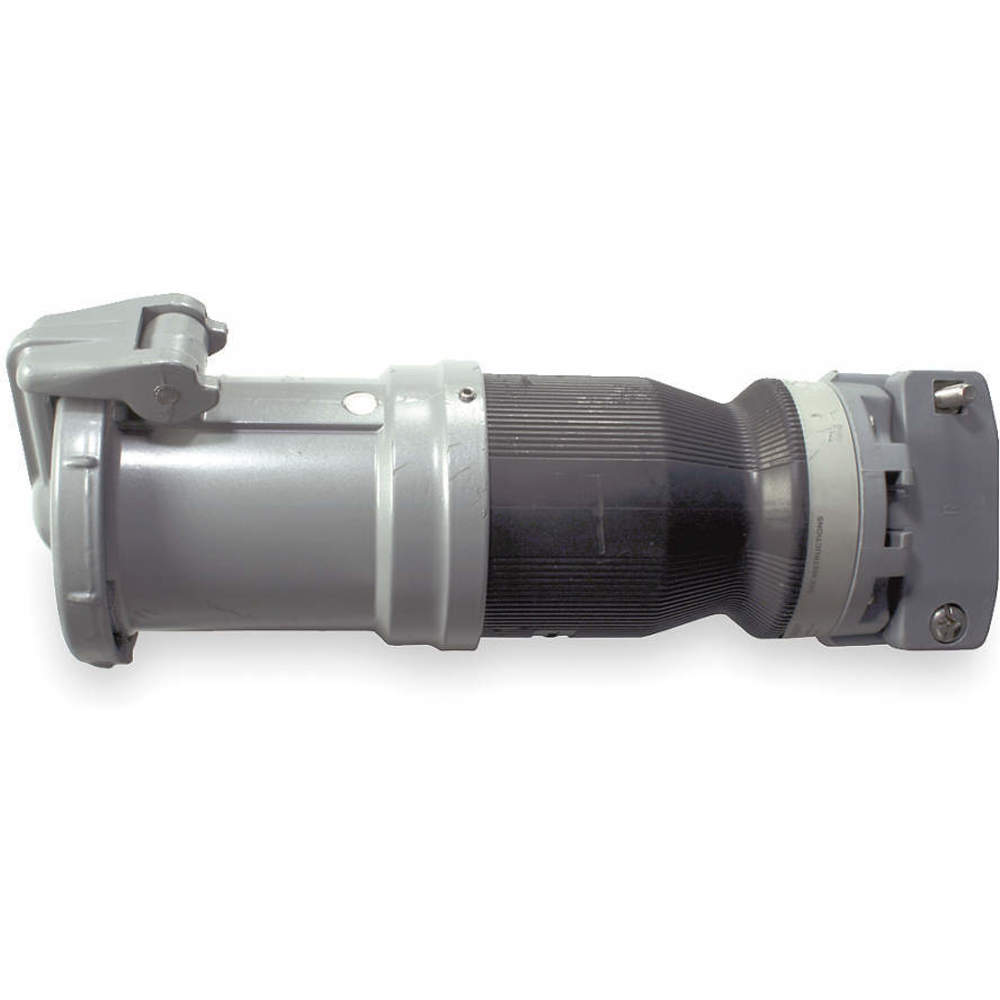

HBL3100CS2W | 1 | 2.0 | 3 | 100A | Style 2 | 100A | 3 | #4 AWG to #2 AWG | €1,274.56 | |
 |
HBL360CS1W | 1 | 2.0 | 3 | 60A | Style 1 | 60A | 3 | #6 AWG to #4 AWG | €827.44 | |
 |
HBL360CS2W | 1 | 2.0 | 3 | 60A | Style 2 | 60A | 3 | #6 AWG to #4 AWG | €906.67 | |
 |
HBL4100CS1W | 3 | 3.0 | 4 | 100A | Style 1 | 100A | 4 | #4 AWG to #2 AWG | €1,138.83 | |
 |
HBL4100CS2W | 3 | 3.0 | 4 | - | - | 100A | 4 | #4 AWG to #2 AWG | €1,377.69 | |
 |
HBL430CS1W | 3 | 3.0 | 4 | 30A | Style 1 | 30A | 4 | #10 AWG to #8 AWG | €537.88 | |
 |
HBL460CS1W | 3 | 3.0 | 4 | 60A | Style 1 | 60A | 4 | #6 AWG to #4 AWG | €876.42 |
