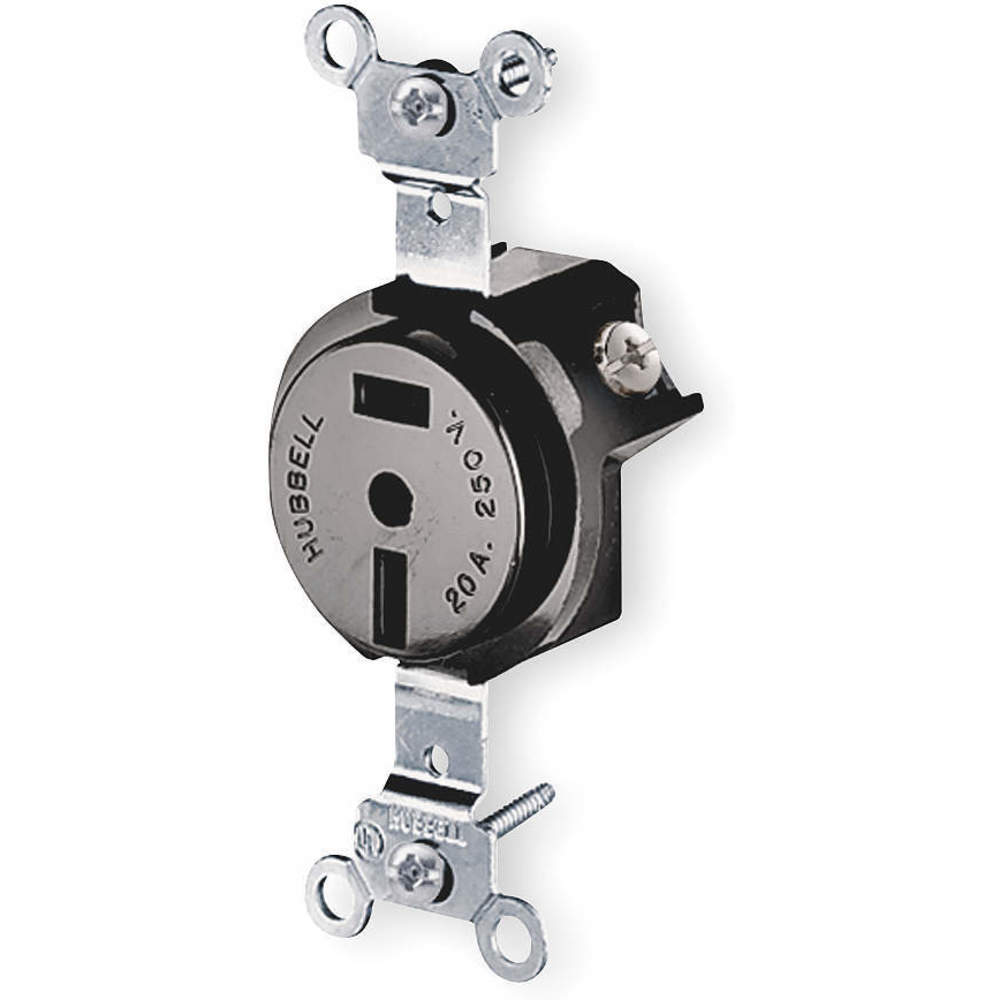

HUBBELL WIRING DEVICE-KELLEMS HBL5552B Straight Receptacle, 20A 250V, 2-20R, Black
Item: AC8QCAModel: HBL5552BCross Ref: 3D213
7 In Stock
Ships within 2 days via
10.00% off
€58.10 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 20A |
| Application Environment | Industrial Environments |
| Color | Black |
| Connection Orientation | Straight |
| Connectivity | Side Wired |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 20A |
| Dielectric Strength | Withstands 2,000V minimum |
| Duty | Heavy Duty |
| Face Diameter | 1.4" |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded |
| Height | 1.14" |
| Horsepower Rating | 2 hp |
| Housing Color | Black |
| Housing Material | Thermoplastic |
| Includes | Grounding Clip, Mounting Hardware |
| Includes Mounting Hardware | Yes |
| Ip Rating | IP20 |
| Length | 3 7/25" |
| Material | Thermoplastic |
| Max. Hp | 2 hp |
| Maximum Operating Temperature | 167°F |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 14 AWG |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Rating | NEMA 2-20R |
| Nema Receptacle Configuration | NEMA 2-20R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 2 |
| Outlet Type | Single |
| Overall Depth | 1.1" |
| Phase | 1 |
| Polarized | Yes |
| Prod. Description | Non Grounding |
| Product Datasheet | hubbell-wiring-device-kellems-hbl5552b.pdf |
| Receptacle Type | Single |
| Signal & Power Protection | Standard Protection |
| Standards | Csa C22.2 No. 42 File 280C, Nema Wd-6, Ul 498 File E1706 |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-1 |
| Voltage | 250V |
| Voltage Rating | 250V AC |
| Wattage | 5000 W |
| Weather Resistant | No |
| Width | 1.39" |
| Wire Connection Location | Side |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Wire Size | 14 AWG to 10 AWG |
| Wiring Method | Back And Side |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.9 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 3.53 |
| HS code | 8536698000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Voltage Rating | Phase | Wire Connection Location | Number Of Poles | Number Of Wires | Housing Material | Material | Nema Receptacle Configuration | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL8420 | 250V AC | 3 | Back, Side | 3 | 4 | Nylon | Nylon | 15-20R | €112.06 | |
 |

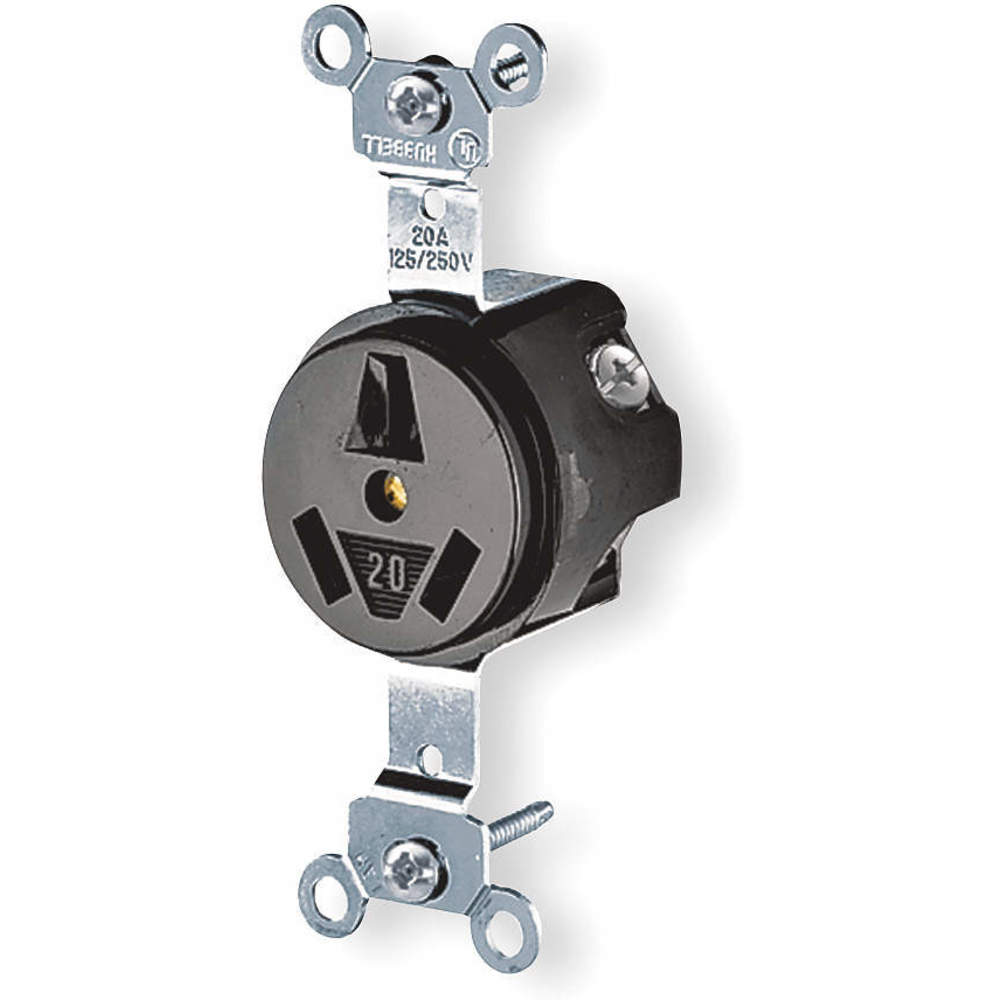

HBL6810 | 125/250V AC | 1 | Back, Side | 3 | 3 | Nylon | Phenolic | 10-20R | €83.02 | |
 |

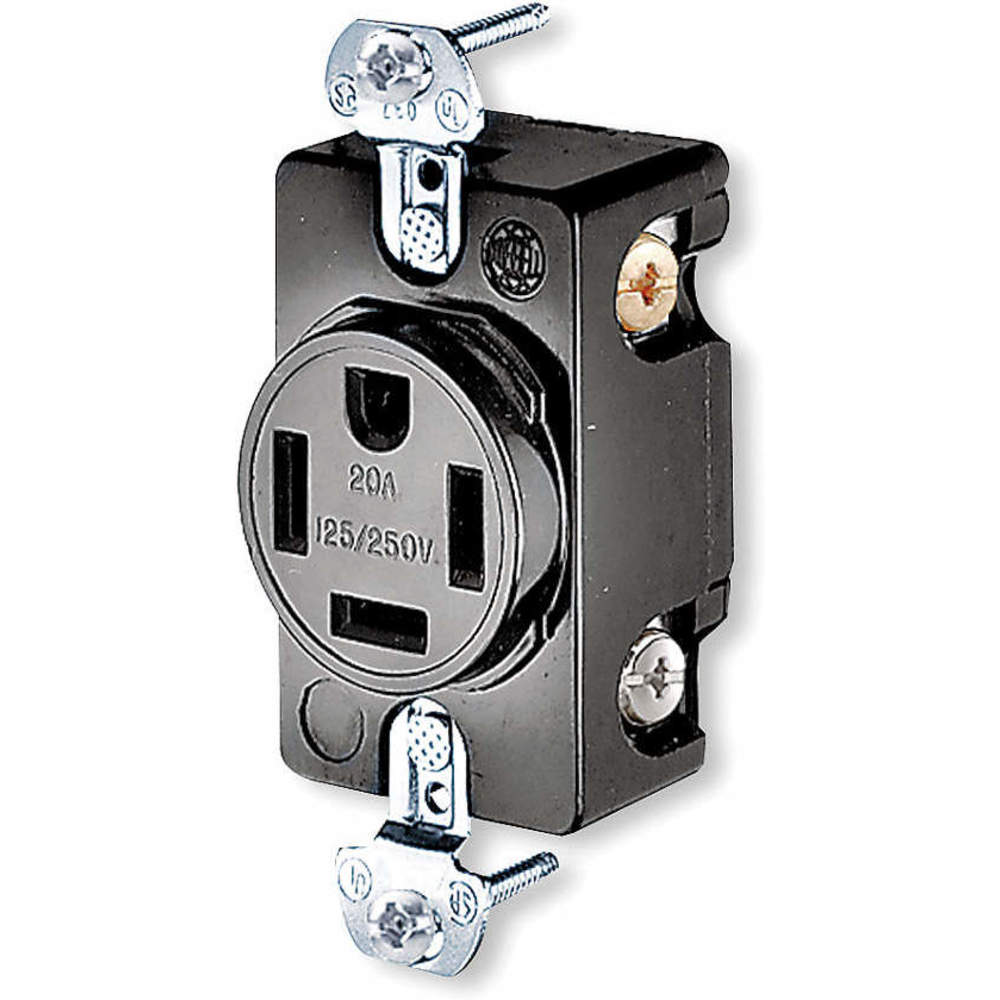

HBL8410 | 125/250V AC | 1 | Back, Side | 3 | 4 | Nylon | Nylon | 14-20R | €99.41 |
