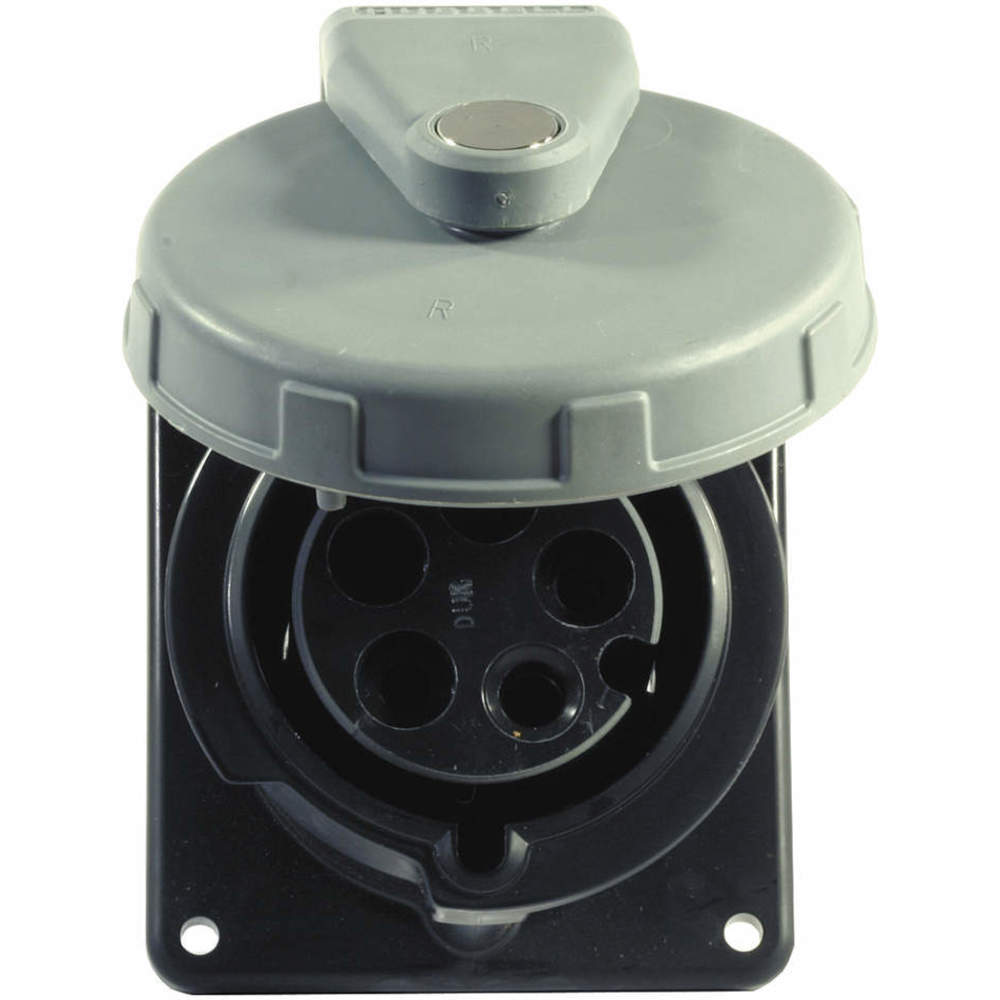

HUBBELL WIRING DEVICE-KELLEMS HBL530R5W Iec Pin And Sleeve Receptacle, Female, 30 A, 347 - 600 VAC, 4 Pole, Black
Item: AC8QNBModel: HBL530R5WCross Ref: 3D888
7 In Stock
Ships within 2 days via
5.00% off
€621.33 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Pin and Sleeve Receptacle |
| Amps | 30A |
| Cap Type | Spring Loaded Cap |
| Color | Black |
| Connection Orientation | Straight |
| Exposure Conditions | Wateright |
| Face Dia. | 3.88" |
| Features | Color Coded |
| Flange Type | Flanged |
| Grounding | Grounded |
| Grounding Style | IEC |
| Housing Color | Black |
| Housing Material | Thermoplastic |
| Housing Material Grade | Grade Zytel 101 |
| Hp | 10 hp |
| Ip Rating | IP67 |
| Market | Industrial |
| Material | Thermoplastic |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 8 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 12 AWG |
| Mounting Style | Screw |
| Nema Enclosure Rating | NEMA 4X |
| No. Of Gangs | 1 |
| No. Of Poles | 4.0 |
| No. Of Wires | 5 |
| Phase | 3 |
| Power Indicating Light | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl530r5w.pdf |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight |
| Reverse Service | No |
| Shrouded | Yes |
| Switch Rated | No |
| Ul 94 Flammability Rating | HB |
| Voltage | 347/600V , 347/600V AC |
| Wattage | 18000 |
| Watts | 18000 W |
| Wire Connection Type | Screw Terminal |
| Wire Size | 12 AWG to 8 AWG |
Shipping Info:
| Ship weight (kg) | 0.81 |
| Ship height (cm) | 15.49 |
| Ship length (cm) | 14.22 |
| Ship width (cm) | 11.68 |
| HS code | 8536904000 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | No. Of Poles | Voltage | Amps | Wire Size | Type | Max. Wire Size | Min. Wire Size | Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| HBL5100R5W | 4.0 | 600V | 100A | #3 AWG to #1/0 AWG | Receptacle | 1/0 AWG | 3 AWG | 30 hp | €1,083.55 | |
| HBL520R5W | 4.0 | 347/600V AC | 20A | 14 AWG to 10 AWG | Receptacle | 10 AWG | 14 AWG | 7 1/2 hp | €482.09 | |
| HBL560R5W | 4.0 | 347/600V AC | 60A | 8 AWG to 2 AWG | Receptacle | 2 AWG | 8 AWG | 15 hp | €1,107.34 | |
| HBL4100R5W | 3.0 | 600V AC | 100A | #3 AWG to #1/0 AWG | Female Receptacle | 1/0 AWG | 3 AWG | 50 hp | €1,140.69 | |
| HBL420R5W | 3.0 | 600V AC | 20A | 14 AWG to 10 AWG | Female Receptacle | 10 AWG | 14 AWG | 7 1/2 hp | €456.62 | |
| HBL430R5W | 3.0 | 600V AC | 30A | 12 AWG to 8 AWG | Female Receptacle | 8 AWG | 12 AWG | 20 hp | €620.27 | |
| HBL460R5W | 3.0 | 600V AC | 60A | 8 AWG to 2 AWG | Female Receptacle | 2 AWG | 8 AWG | 15 hp | €842.61 |
