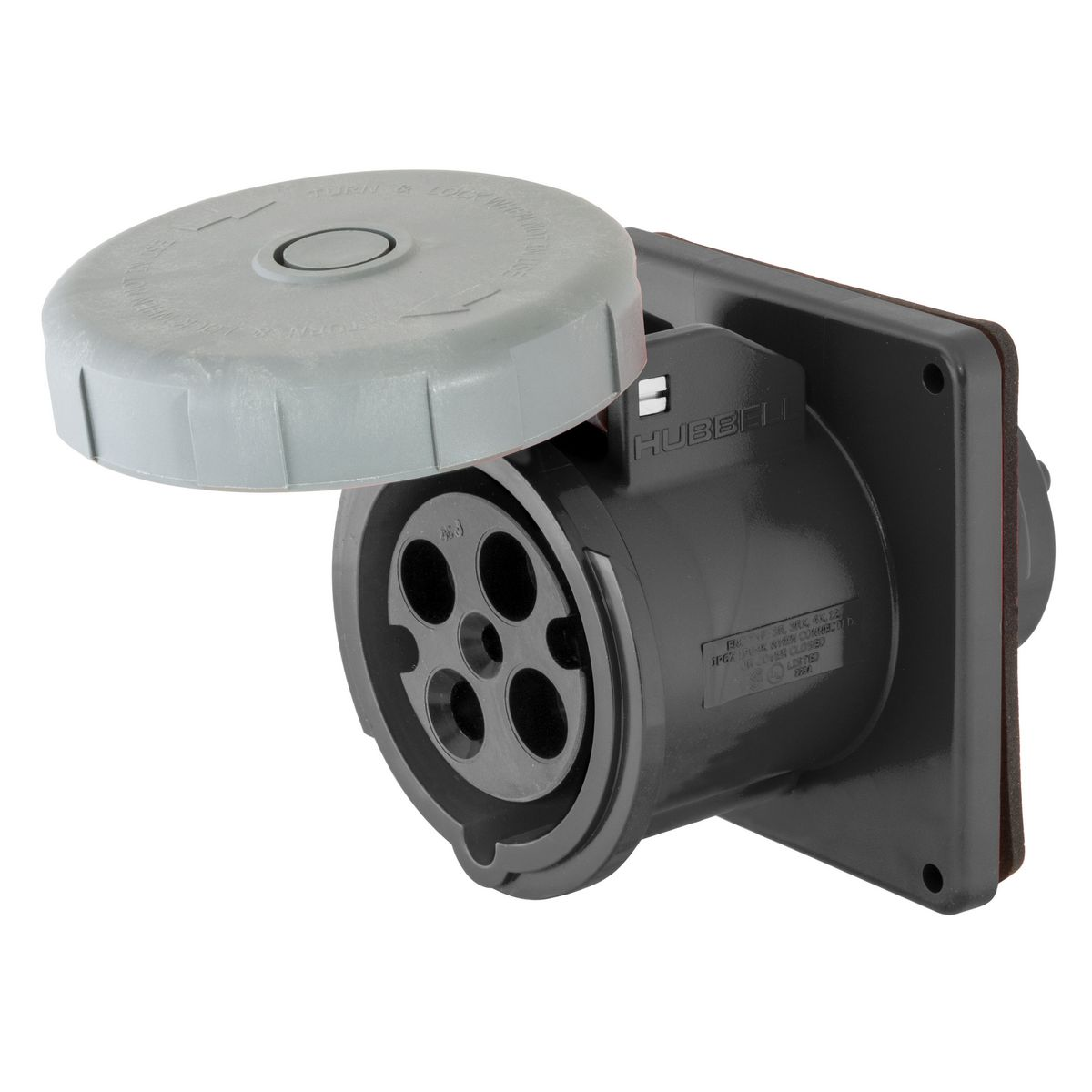

HUBBELL WIRING DEVICE-KELLEMS HBL4100R5W Iec Pin And Sleeve Receptacle, Female, 100 A, 600 VAC, 3 Pole, Black
Item: AC8PZKModel: HBL4100R5WCross Ref: 3D133
7 In Stock
Ships within 2 days via
10.00% off
€1,026.62 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Pin and Sleeve Receptacle |
| Amps | 100A |
| Cap Type | Spring Loaded Cap |
| Color | Black |
| Connection Orientation | Straight |
| Current Rating | 100A |
| Exposure Conditions | Wateright |
| Face Diameter | 4.71" |
| Features | Color Coded |
| Flange Type | Flanged |
| Grounding | Grounded |
| Grounding Style | IEC |
| Housing Color | Black |
| Housing Material | Thermoplastic |
| Housing Material Grade | Grade Zytel 101 |
| Hp Rating | 50 hp |
| Ip Rating | IP67 |
| Market | Industrial |
| Material | Thermoplastic |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 1/0 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 3 AWG |
| Mounting Style | Screw |
| Nema Enclosure Rating | NEMA 4X |
| Number Of Gangs | 1 |
| Number Of Poles | 3.0 |
| Number Of Wires | 4 |
| Phase | 3 |
| Power Indicating Light | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl4100r5w.pdf |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Reverse Service | No |
| Shrouded | Yes |
| Switch Rated | No |
| Type | Female Receptacle |
| Ul 94 Flammability Rating | HB |
| Voltage | 600V |
| Voltage Rating | 600V AC |
| Wattage | 60000 |
| Wattage | 60000 W |
| Wire Connection Type | Screw Terminals |
| Wire Size | #3 AWG to #1/0 AWG |
Shipping Info:
| Ship weight (kg) | 1.76 |
| Ship height (cm) | 14.99 |
| Ship length (cm) | 19.05 |
| Ship width (cm) | 16.26 |
| HS code | 8536904000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Current Rating | Voltage Rating | Number Of Poles | Number Of Wires | Hp Rating | Wire Size | Amps | Wattage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL5100R5W | 100A | 347/600V AC | 4.0 | 5 | 30 hp | #3 AWG to #1/0 AWG | 100A | 60000 W | €1,083.55 | |
|
HBL520R5W | 20A | 347/600V AC | 4.0 | 5 | 7 1/2 hp | 14 AWG to 10 AWG | 20A | 12000 W | €482.09 | |
|
HBL560R5W | 60A | 347/600V AC | 4.0 | 5 | 15 hp | 8 AWG to 2 AWG | 60A | 36000 W | €1,107.34 | |
 |
HBL420R5W | 20A | 600V AC | 3.0 | 4 | 7 1/2 hp | 14 AWG to 10 AWG | 20A | 12000 W | €456.62 | |
|
HBL430R5W | 30A | 600V AC | 3.0 | 4 | 20 hp | 12 AWG to 8 AWG | 30A | 18000 W | €620.27 | |
|
HBL460R5W | 60A | 600V AC | 3.0 | 4 | 15 hp | 8 AWG to 2 AWG | 60A | 36000 W | €833.43 | |
 |

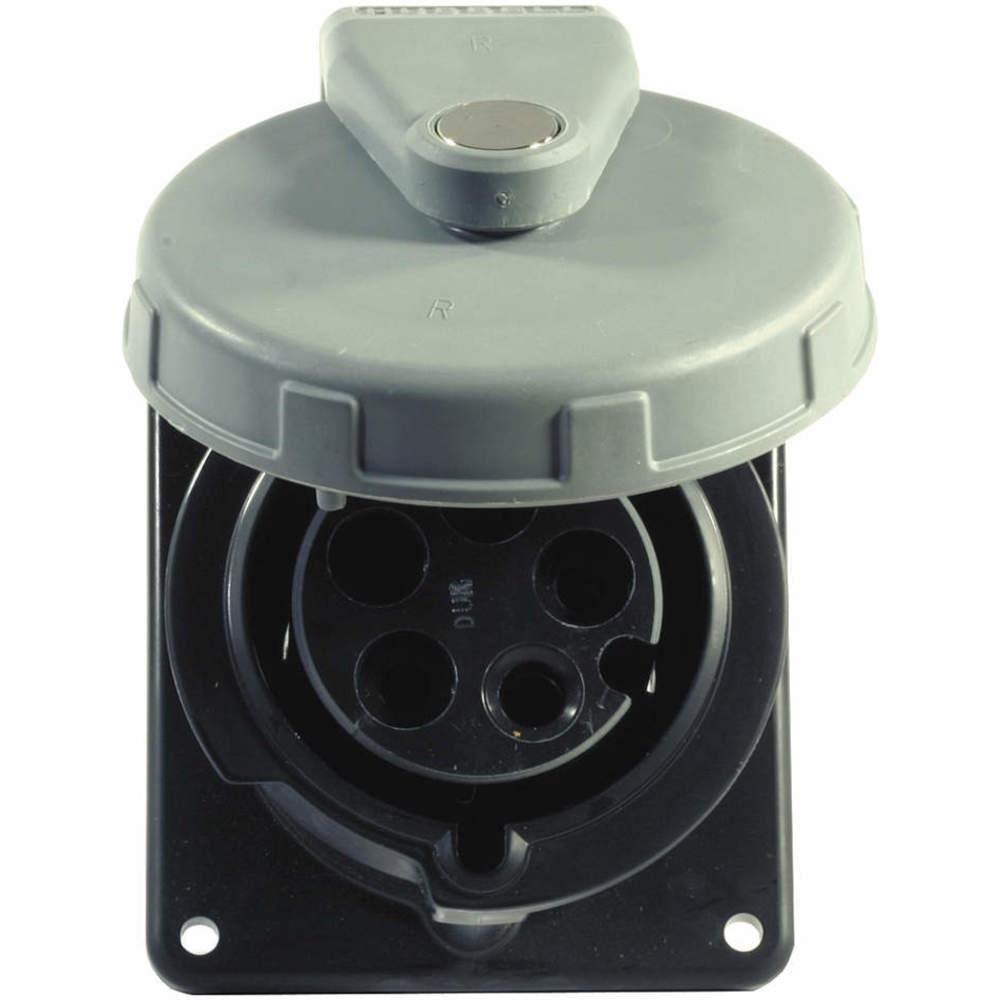

HBL530R5W | 30A | 347/600V AC | 4.0 | 5 | 10 hp | 12 AWG to 8 AWG | 30A | 18000 W | €654.03 |
