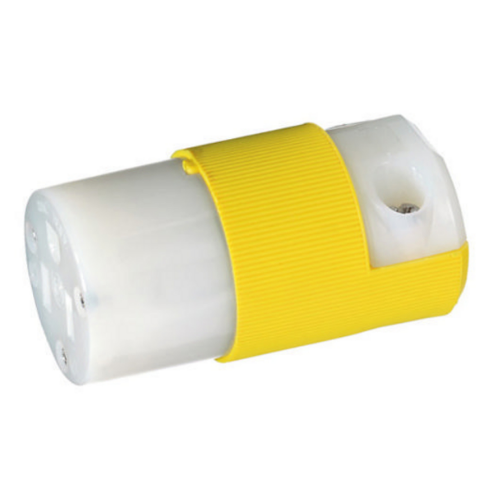

HUBBELL WIRING DEVICE-KELLEMS HBL52CM69C Connector 5-15r 15a 125v
Item: AC8QBPModel: HBL52CM69CCross Ref: 3D198
7 In Stock
Ships within 2 days via
5.00% off
€64.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Connector |
| Amps | 15A |
| Anti Microbial | No |
| Cap Type | No Cap, Cover |
| Color | Yellow |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cord Size | 0.23" to 0.72" |
| For Environment | Dry |
| For Location | Indoor |
| Grade | Federal Specification |
| Grounding | Grounded |
| Housing Color | Yellow |
| Housing Material | Thermoplastic Elastomer |
| Hp | 1/2 hp |
| Insulation Material | Nylon |
| Ip Rating | IP20 |
| Material | Nylon |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 10 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 18 AWG |
| Nema Receptacle Configuration | NEMA 5-15R |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Overall Length | 2.78" |
| Phase | 1 |
| Polarized | Yes |
| Power Indicating Light | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl52cm69c.pdf |
| Resistance Properties | Corrosion Resistant |
| Voltage | 125V AC |
| Wire Connection Type | Screw Terminal |
| Wiring Style | Standard |
| Wiring Type | Standard |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 7.06 |
| Ship length (cm) | 7.06 |
| Ship width (cm) | 3.86 |
| HS code | 8536698000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Wiring Style | Housing Color | Grade | Cord Size | Hp | Wiring Type | Nema Receptacle Configuration | Max. Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL5369VY | Hinged | Yellow | General Use | 0.22" to 0.66" | 1 hp | Hinged | NEMA 5-20R | 12 AWG | €51.02 | |
 |
HBL5969VBLK | - | - | General | 0.22" to 0.66" | 1/2 hp | Hinged | - | - | €55.55 | |
 |
HBL7515C | Standard | Black | Federal Specification | #12 AWG to #4 AWG | 3 hp | Standard | 10-50R | 4 AWG | €248.98 | |
 |

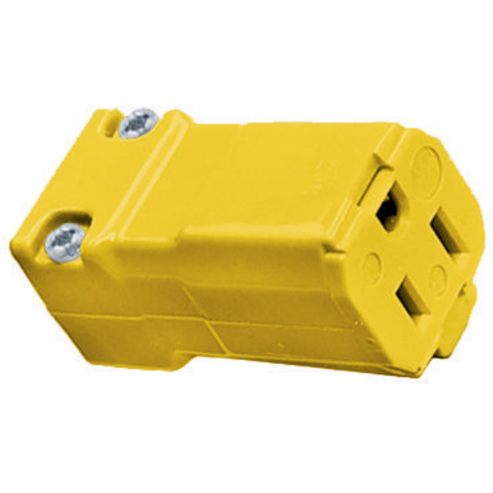

HBL52CM69V | Hinged | Yellow | Marine | 0.22" to 0.66" | 1/2 hp | Hinged | NEMA 5-15R | 12 AWG | €50.80 | |
 |
HBL5324 | Standard | Brown | General Use | 0.296" to 0.625" | 2 hp | Standard | NEMA 7-15R | 10 AWG | €92.14 | |
 |
HBL5969VY | Hinged | Yellow | General Use | 0.22" to 0.66" | 1/2 hp | Hinged | NEMA 5-15R | 12 AWG | €51.42 | |
 |
HBL5869VY | Hinged | Yellow | General Use | 0.218" to 0.385" | 1/2 hp | Hinged | NEMA 1-15R | 14 AWG | €38.27 |
