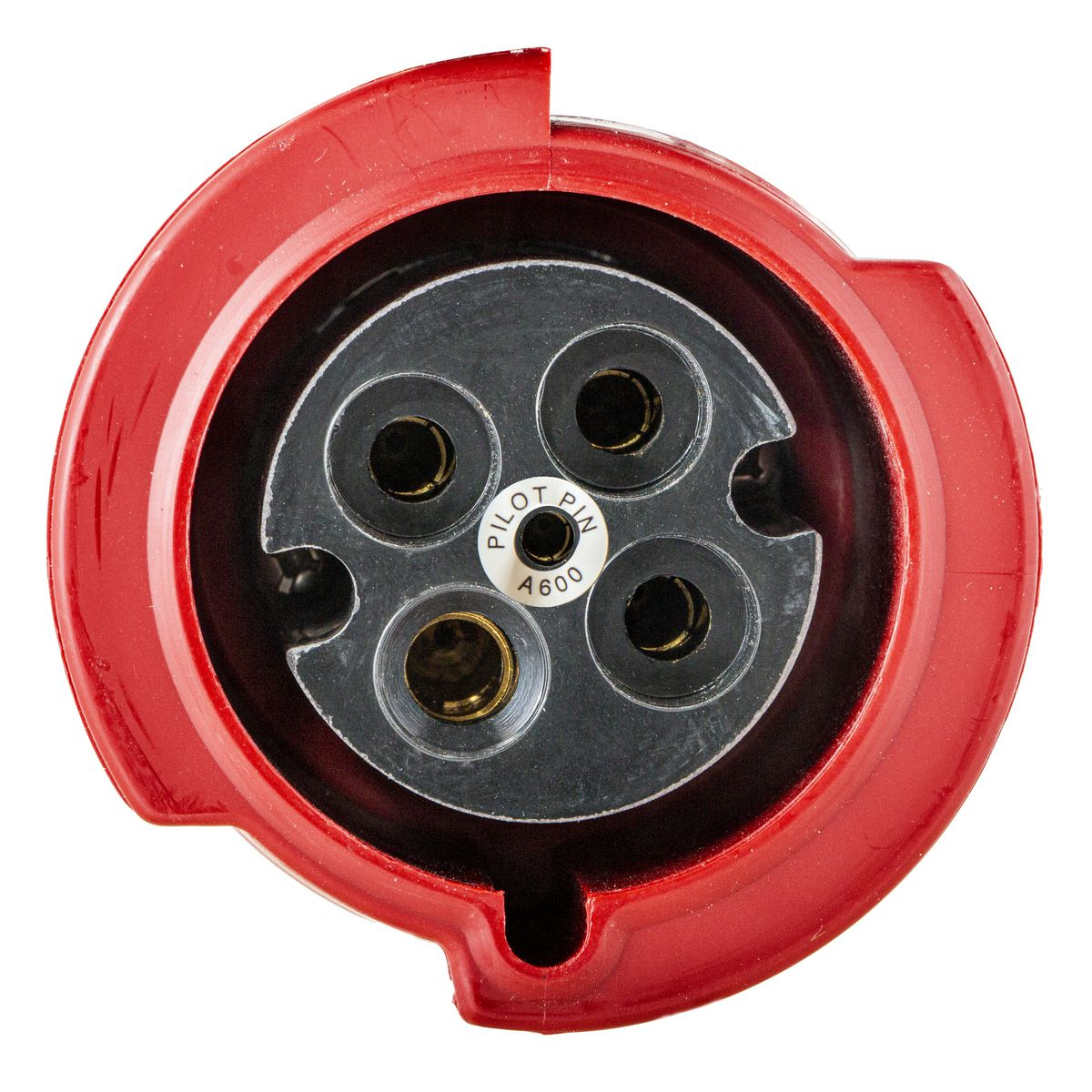

HUBBELL WIRING DEVICE-KELLEMS HBL5100C6WP Iec Pin And Sleeve Connector, Female, 100 - 125 A
Item: BD4FKQModel: HBL5100C6WPCross Ref: 3D173
7 In Stock
Ships within 2 days via
10.00% off
€1,209.58 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Pin and Sleeve Connector |
| Cap Type | Spring Loaded Cap |
| Color | Red |
| Compatible With Series | Hbl Heavy Duty |
| Connection Orientation | Straight |
| Cord Type | Portable |
| Current Rating | 100/125A |
| Dielectric Strength | Minimum 3000 V |
| Exposure Conditions | Wateright |
| Features | Color Coded Housings For Easy Identification, Corrosion Resistant Self Closing Gasketed Cover, Insulated Non Metallic Housing |
| For Maximum Cable Diameter | 1.94" |
| For Minimum Cable Diameter | 1.065" |
| Grounding | Grounded |
| Grounding Style | IEC |
| Horsepower Rating | 30 hp |
| Housing Color | Red |
| Housing Material | PBT |
| Housing Material Grade | Grade Zytel 801 |
| Ip Rating | IP68, IP69K |
| Market | Industrial |
| Material | Thermoplastic |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 1/0 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 3 AWG |
| Mounting Style | Cord |
| Nema Enclosure Rating | NEMA 4X |
| Number Of Conductors | 5 |
| Number Of Poles | 4.0 |
| Number Of Wires | 5 |
| Outside Diameter | 5.06" |
| Overall Length | 13.14" |
| Phase | 1, 3 |
| Power Indicating Light | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl5100c6wp.pdf |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight |
| Reverse Service | No |
| Shrouded | Yes |
| Switch Rated | No |
| Ul 94 Flammability Rating | V-0 |
| Voltage Rating | 200/346-240/415/220/380-240/415V |
| Wire Connection Type | Screw Terminals |
| Wire Size | #3 AWG to #1/0 AWG |
Shipping Info:
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 12.85 |
| Ship length (cm) | 33.38 |
| Ship width (cm) | 12.85 |
| Country of Origin | US |
