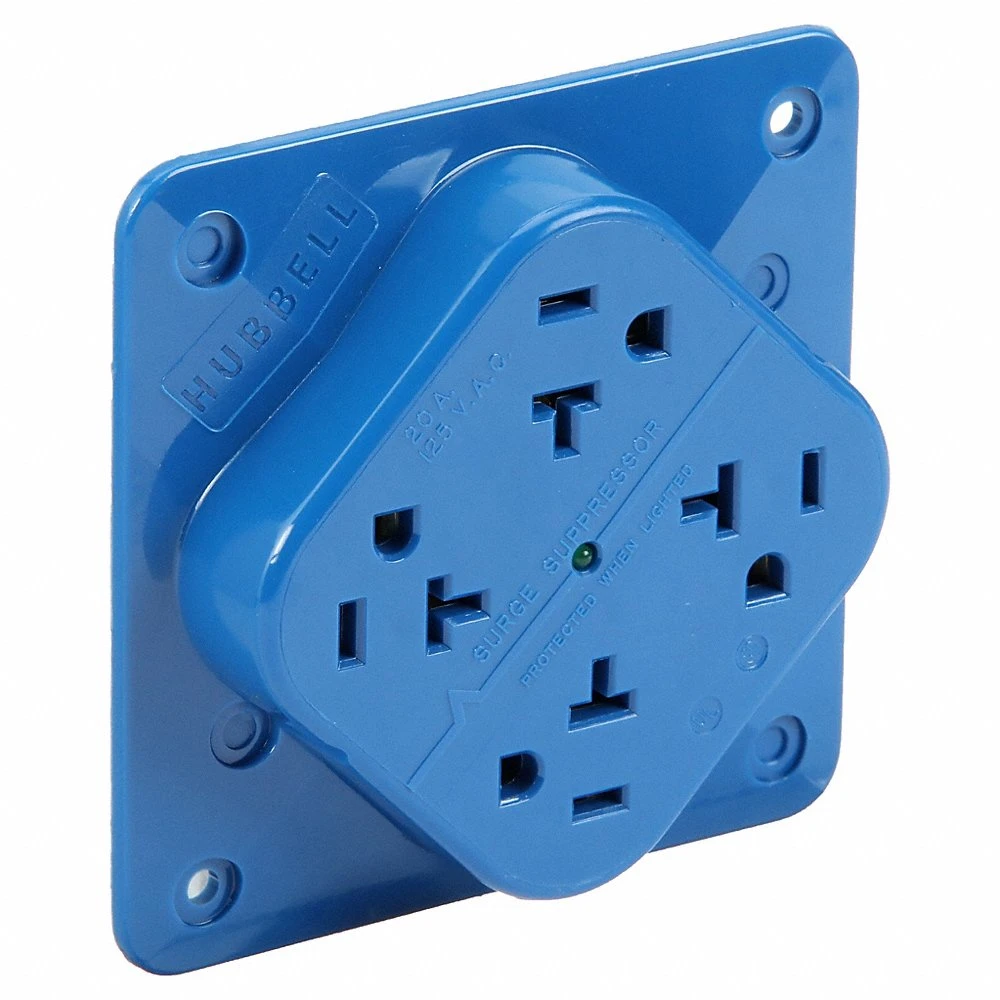

HUBBELL WIRING DEVICE-KELLEMS HBL420S Straight Blade Receptacle, 20A 125V, 2-P 3-W Grounding, 5-20R, Blue
Get it by Monday, Feb 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€235.76 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Four Outlet Receptacle |
| Afci | No |
| Amps | 20A |
| Application Environment | Commercial Environments |
| Color | Blue |
| Connection Orientation | Straight |
| Connectivity | Terminal Screws |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 20A |
| Dielectric Strength | Withstands 2,000V minimum |
| Duty | Heavy Duty |
| Face Plate Height | 4.3" |
| Face Plate Width | 4.3" |
| Frequency | 60 Hz |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded |
| Height | 4.3" |
| Horsepower Rating | 1 hp |
| Housing Color | Blue |
| Housing Material | Polycarbonate |
| Material | Polycarbonate |
| Maximum Operating Temperature | 167°F |
| Maximum Wire Size | 12 AWG |
| Minimum Operating Temperature | -40°F |
| Mount Hole Center-to-center Height | 3.4" |
| Mount Hole Center-to-center Width | 3.4" |
| Mounting Type | Surface |
| Nema Enclosure Rating | 1 |
| Nema Rating | NEMA 5-20R |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Gangs | 2 |
| Number Of Outlets | 4 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Outlet | Straight Blade |
| Outlet Type | Quad |
| Overall Depth | 4.3" |
| Phase | 1 |
| Polarized | Yes |
| Power Indicator | No |
| Prod. Description | Surge Suppression |
| Product Datasheet | hubbell-wiring-device-kellems-hbl420s.pdf |
| Receptacle Type | Quad |
| Standards | Csa Certified C22.2 No. 42 File 285, Nema Wd-6, Ul 498 File E2186 |
| Surge Protection | Yes |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Weather Resistant | No |
| Width | 23/25" |
| Wire Connection Location | Back |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Wire Size | 12 AWG |
| Wiring Method | Back |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 10.92 |
| Ship length (cm) | 10.92 |
| Ship width (cm) | 2.34 |
| HS code | 8537109070 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Surge Protection | Current Rating | Housing Color | Wire Size | Nema Rating | Connectivity | Voltage | Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL415W | No | 15A | White | #14 AWG to # 12 AWG | NEMA 5-15R | Screw Terminals | 125V AC | 15A | €80.03 | |
 |
HBL420W | No | 20A | White | 12 AWG | NEMA 5-20R | Screw Terminals | 125V AC | 20A | €75.83 | |
 |
HBL415BK | No | 15A | Black | #14 AWG to # 12 AWG | NEMA 5-15R | Screw Terminals | 125V AC | 15A | €81.61 | |
 |
HBL415GY | No | 15A | Gray | #14 AWG to # 12 AWG | NEMA 5-15R | Screw Terminals | 125V AC | 15A | €76.88 | |
 |
HBL420BK | No | 20A | Black | 12 AWG | NEMA 5-20R | Screw Terminals | 125V AC | 20A | €70.70 | |
 |
HBL415 | No | 15A | Brown | #14 AWG to # 12 AWG | NEMA 5-15R | Screw Terminals | 125V AC | 15A | €74.25 | |
 |
HBL415I | No | 15A | Ivory | #14 AWG to # 12 AWG | NEMA 5-15R | Screw Terminals | 125V AC | 15A | €77.91 |
