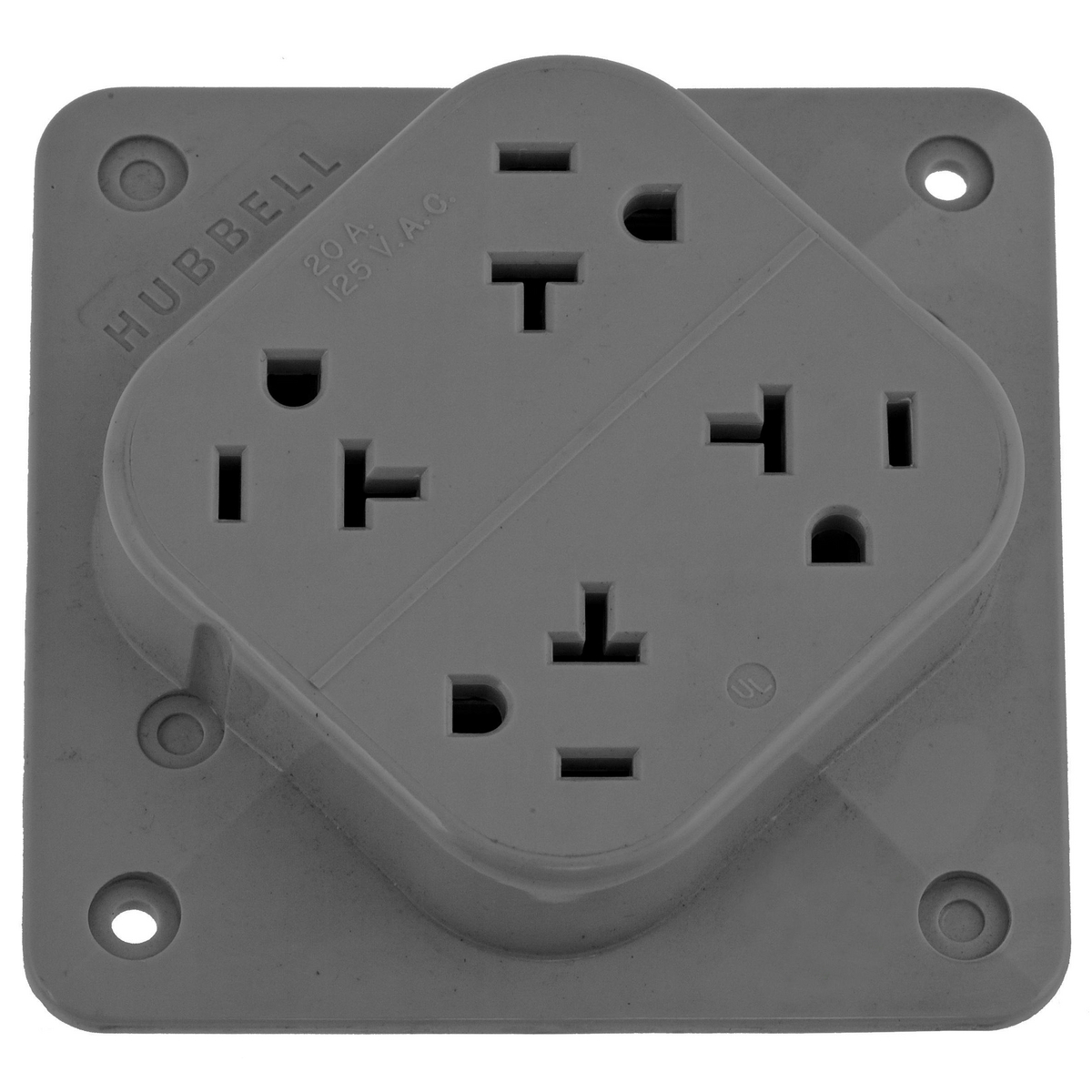

HUBBELL WIRING DEVICE-KELLEMS HBL420GY Straight Blade Receptacle, 2-P 3-W Grounding, 20A 125V, 5- 20R, Gray
Item: BC8TFWModel: HBL420GY
7 In Stock
Ships within 2 days via
€68.31 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Four Outlet Receptacle |
| Amps | 20A |
| Color | Gray |
| Connectivity | Screw Terminals |
| Dielectric Strength | Withstands 2,000V minimum |
| Height | 4.3" |
| Length | 4.3" |
| Material | Polycarbonate |
| Max. Hp | 1 hp |
| Nema Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | 1 |
| Product Datasheet | hubbell-wiring-device-kellems-hbl420gy.pdf |
| Voltage | 125V |
| Wattage | 2500 W |
| Width | 23/25" |
| Wire Size | 12 AWG |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 10.92 |
| Ship length (cm) | 10.92 |
| Ship width (cm) | 2.34 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Surge Protection | Current Rating | Housing Color | Wire Size | Nema Rating | Connectivity | Voltage | Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL415W | No | 15A | White | #14 AWG to # 12 AWG | NEMA 5-15R | Screw Terminals | 125V AC | 15A | €80.03 | |
 |
HBL420W | No | 20A | White | 12 AWG | NEMA 5-20R | Screw Terminals | 125V AC | 20A | €75.83 | |
 |
HBL415BK | No | 15A | Black | #14 AWG to # 12 AWG | NEMA 5-15R | Screw Terminals | 125V AC | 15A | €81.61 | |
 |
HBL415GY | No | 15A | Gray | #14 AWG to # 12 AWG | NEMA 5-15R | Screw Terminals | 125V AC | 15A | €76.88 | |
 |
HBL420BK | No | 20A | Black | 12 AWG | NEMA 5-20R | Screw Terminals | 125V AC | 20A | €70.70 | |
 |
HBL415 | No | 15A | Brown | #14 AWG to # 12 AWG | NEMA 5-15R | Screw Terminals | 125V AC | 15A | €74.25 | |
 |
HBL415I | No | 15A | Ivory | #14 AWG to # 12 AWG | NEMA 5-15R | Screw Terminals | 125V AC | 15A | €77.91 |
