HUBBELL WIRING DEVICE-KELLEMS HBL4100B7W Iec Pin And Sleeve Inlet, Male, 100 A, 480 VAC, 3 Pole, Red
Item: AB3TPKModel: HBL4100B7WCross Ref: 1VCN1
7 In Stock
Ships within 2 days via
10.00% off
€1,210.81 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Pin and Sleeve Inlet |
| Amps | 100A |
| Color | Red |
| Compatible With Series | Hbl Heavy Duty |
| Current Rating | 100A |
| Dielectric Strength | Minimum 3000 V |
| Exposure Conditions | Wateright |
| Face Diameter | 3.44" |
| Features | Gasketed Sealing Ring Provides Watertight Seal, Raised Collar Surrounds Each Phase Pin |
| Flange Diameter | 3.94" |
| Flange Type | Flanged |
| Grounding | Grounded |
| Grounding Style | IEC |
| Horsepower Rating | 40 hp |
| Housing Color | Red |
| Housing Material | Polybutylene Terephthalate |
| Hp Rating | 50 hp |
| Insulation Material | Thermoplastic |
| Ip Rating | IP67 |
| Market | Industrial |
| Material | Thermoplastic |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 1/0 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 3 AWG |
| Mounting Style | Screw |
| Number Of Poles | 3.0 |
| Number Of Wires | 4 |
| Phase | 3 |
| Product Datasheet | hubbell-wiring-device-kellems-hbl4100b7w.pdf |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Shrouded | Yes |
| Switch Rated | Yes |
| Temperature Range | -40°C to +75°C |
| Type | Inlet |
| Ul 94 Flammability Rating | V-0 |
| Voltage Rating | 480V AC |
| Wattage | 48000 W |
| Wattage | 48000 |
| Wire Connection Type | Screw Terminals |
| Wire Size | #3 AWG to #1/0 AWG |
Shipping Info:
| Ship weight (kg) | 1.42 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 19.05 |
| Ship width (cm) | 16.26 |
| HS code | 8536904000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Phase | Number Of Poles | Number Of Wires | Current Rating | Hp Rating | Amps | Wattage | Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

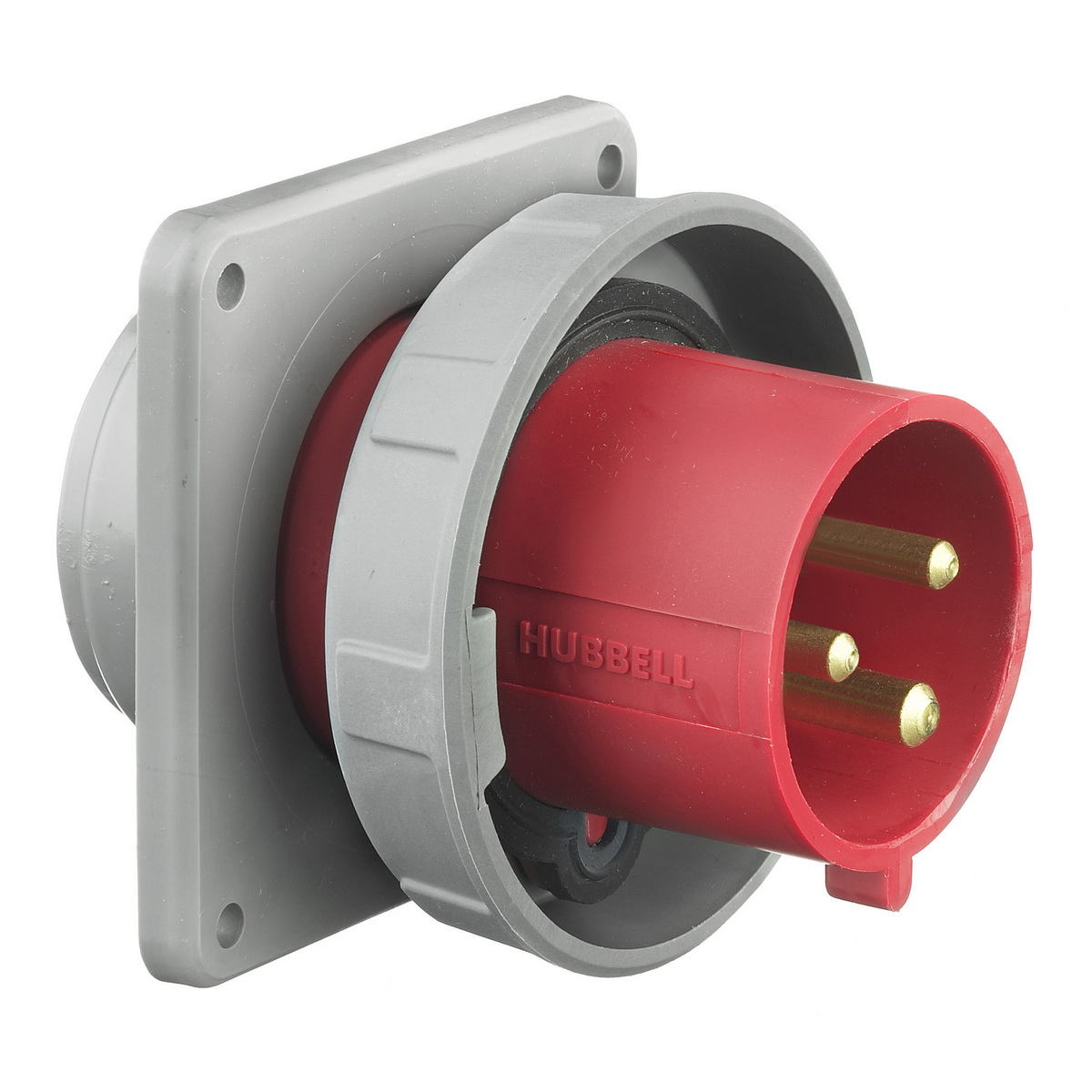

HBL330B7W | 1 | 2.0 | 3 | 30A | 7 1/2 hp | 30A | 14400 W | 12 AWG to 10 AWG | €627.17 | |
|
HBL360B7W | 1 | 2.0 | 3 | 60A | 7 1/2 hp | 60A | 28800 W | 8 AWG to 2 AWG | €778.90 | |
 |
HBL460B7W | 3 | 3.0 | 4 | - | 10 hp | 60A | 28800 W | 8 AWG to 2 AWG | €843.85 | |
 |

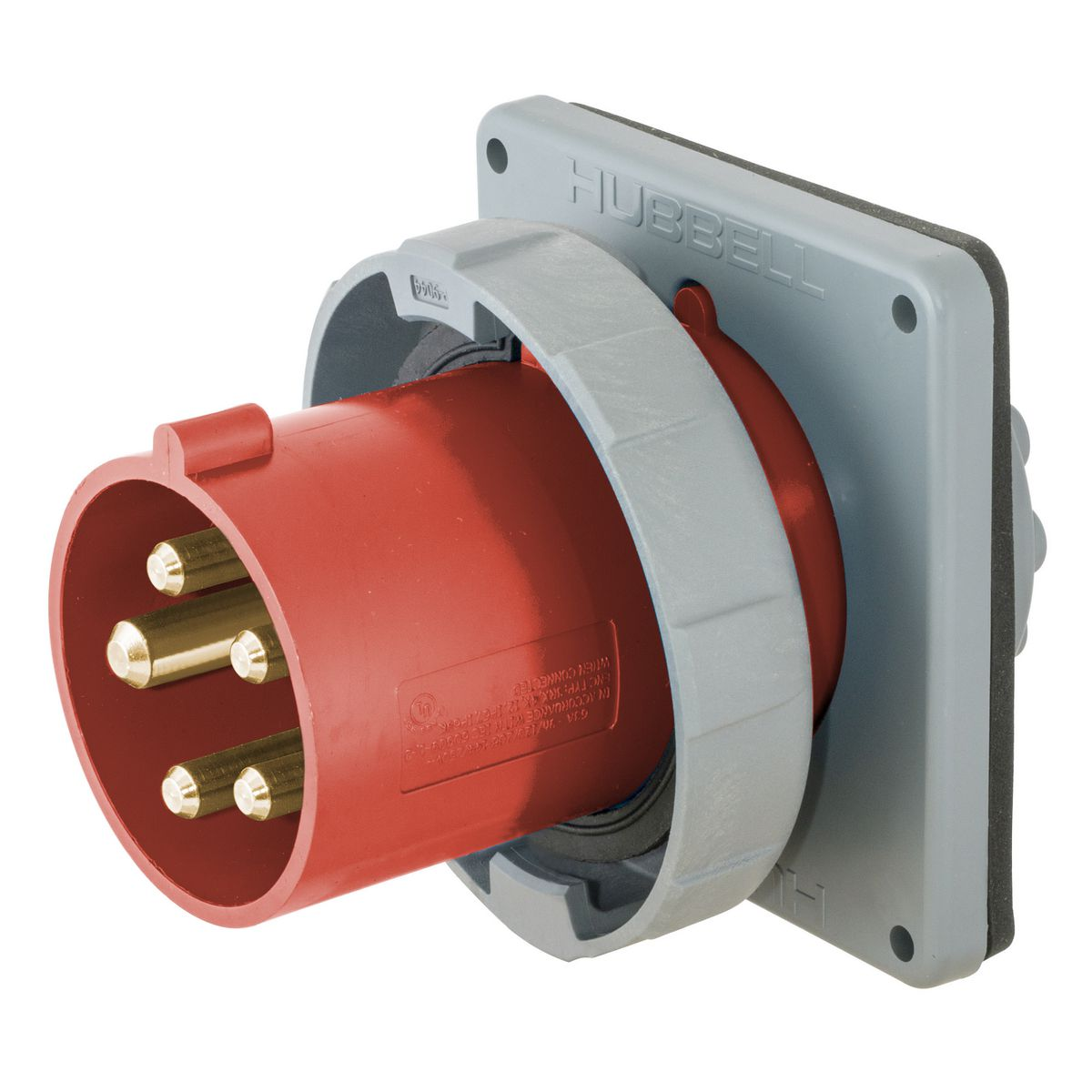

HBL5100B7W | 3 | 4.0 | 5 | 100A | 30 hp | 100A | 48000 W | #3 AWG to #1/0 AWG | €1,534.93 | |
 |

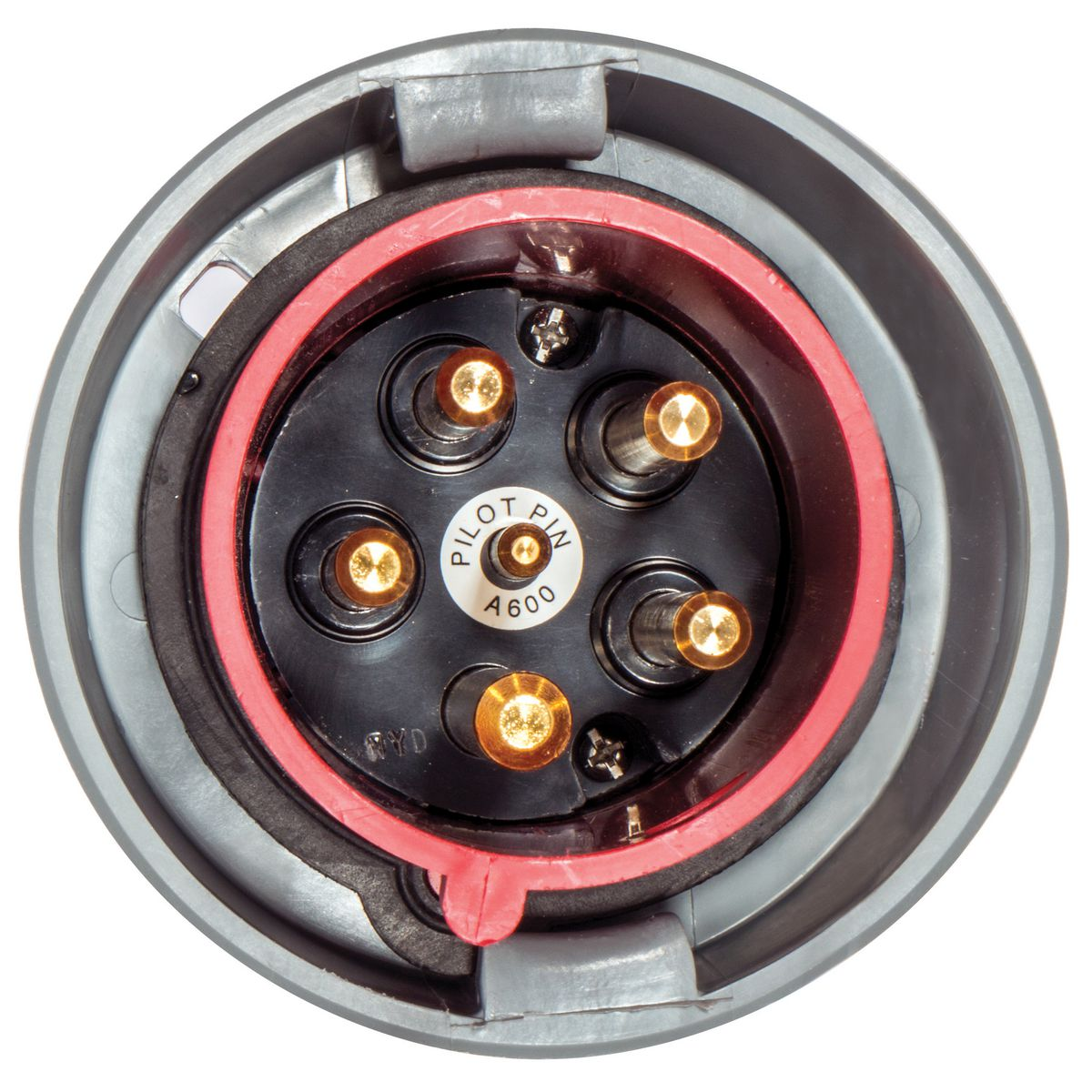

HBL5100B6WP | 1, 3 | 4.0 | 5 | 100/125A | - | 125A | 51875 W | #3 AWG to #1/0 AWG | €1,412.52 | |
|
HBL520B7W | 3 | 4.0 | 5 | 20A | 5 hp | 20A | 9600 W | 14 AWG to 10 AWG | €431.27 | |
|
HBL530B7W | 3 | 4.0 | 5 | 30A | 15 hp | 30A | 14400 W | 12 AWG to 10 AWG | €719.96 |
