AIR HANDLER 2JTY9 Activated Carbon Air Filter 16 x 20 x 2
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€154.40 /unit
This product can only be shipped in multiples of 4Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Activated Carbon Air Filter |
| Actual Depth | 1 3/4" |
| Actual Filter Size | 15 3/8" x 19 3/8" x 1 3/4" |
| Actual Height | 15 3/8" |
| Actual Width | 19 3/8" |
| Air Flow @ 300 Fpm | 667 CFM |
| Air Flow @ 500 Fpm | 1111 CFM |
| Air Flow Rate | 250 FPM |
| Carbon Concentration | 0.23 g/mL |
| Ccl4 Activity | 60% |
| Common Applications | Heavy-Duty Odor Removal |
| Filter Efficiency - Air Filters | 25% |
| Filters Out | Odor Removal |
| Final Resistance | 1 in. wc |
| Frame | Yes |
| Frame Or Header Material | Beverage Board |
| Initial Resistance | 0.48 in. wc |
| Initial Resistance @ 300 Fpm | 0.48 in. wc |
| Initial Resistance @ 500 Fpm | 0.8 in. wc |
| Max. Flow Rate | 500 FPM |
| Max. Temp. | 180°F |
| Max. Velocity | 500 FPM |
| Media Area | 2.2 sq. ft. |
| Media Color | Black |
| Media Material | Active Carbon Honeycomb |
| Nominal Depth | 2" |
| Nominal Filter Size | 16" x 20" x 2" |
| Nominal Height | 16" |
| Nominal Width | 20" |
| Performance Rating | Odor Removal |
| Recommended Final Resistance | 1 in. wc |
| Style - Air Filters | Panel |
Shipping Info:
| Ship weight (kg) | 8.73 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| HS code | 8421398090 |
| Country of Origin | US |
Product Details:
- CCL4 Activity (0.6)
Product Variants
| Product | Model | Nominal Depth | Max. Temp. | Initial Resistance | Final Resistance | Nominal Width | Nominal Height | Air Flow Rate | Max. Flow Rate | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

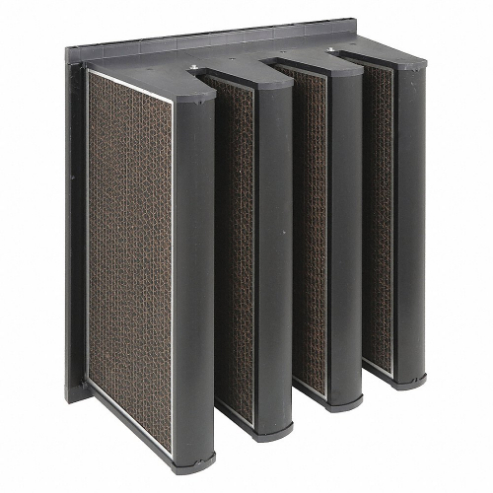

2GGX8 | 12" | 180°F | 0.6 in. wc | 1.5 in. wc | 24" | 24" | 500 FPM | 500 FPM | 1 | €1,237.49 | |
 |

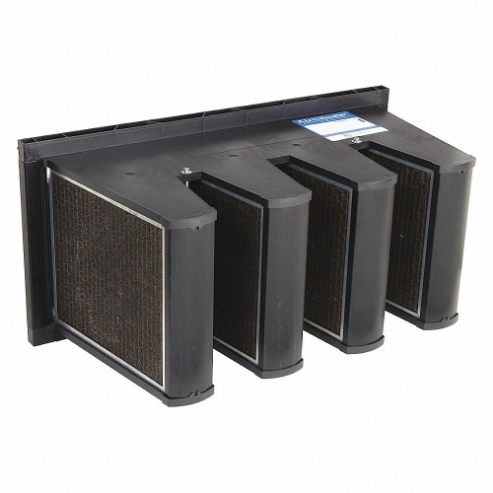

2GGY3 | 12" | 180°F | 0.6 in. wc | 1.5 in. wc | 24" | - | 500 FPM | 500 FPM | 1 | €774.92 | |
|
2GGY7 | 12" | 180°F | 0.6 in. wc | 1.5 in. wc | 24" | 12" | 500 FPM | 500 FPM | 1 | €686.23 | |
 |

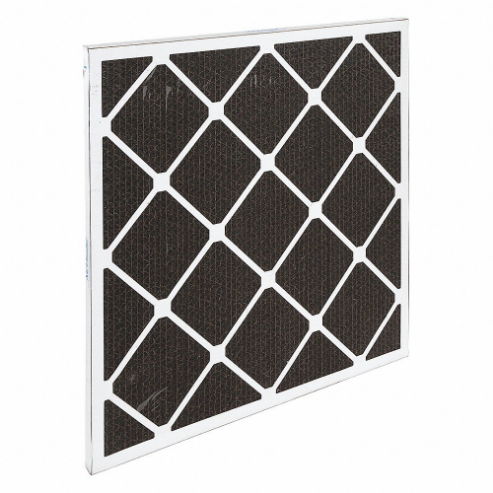

2GJD5 | 1" | 180°F | 0.48 in. wc | 1 in. wc | 24" | 24" | 250 FPM | 500 FPM | 1 | €296.71 | |
 |
2GJE4 | 2" | 180°F | 0.48 in. wc | 1 in. wc | 24" | - | 250 FPM | 500 FPM | 1 | €224.44 | |
|
2JTT4 | 1" | 180°F | 0.48 in. wc | 1 in. wc | 25" | 16" | 250 FPM | 500 FPM | 1 | €215.33 | |
|
2JTU1 | 1" | 180°F | 0.48 in. wc | 1 in. wc | 24" | - | 250 FPM | 500 FPM | 1 | €225.93 |
