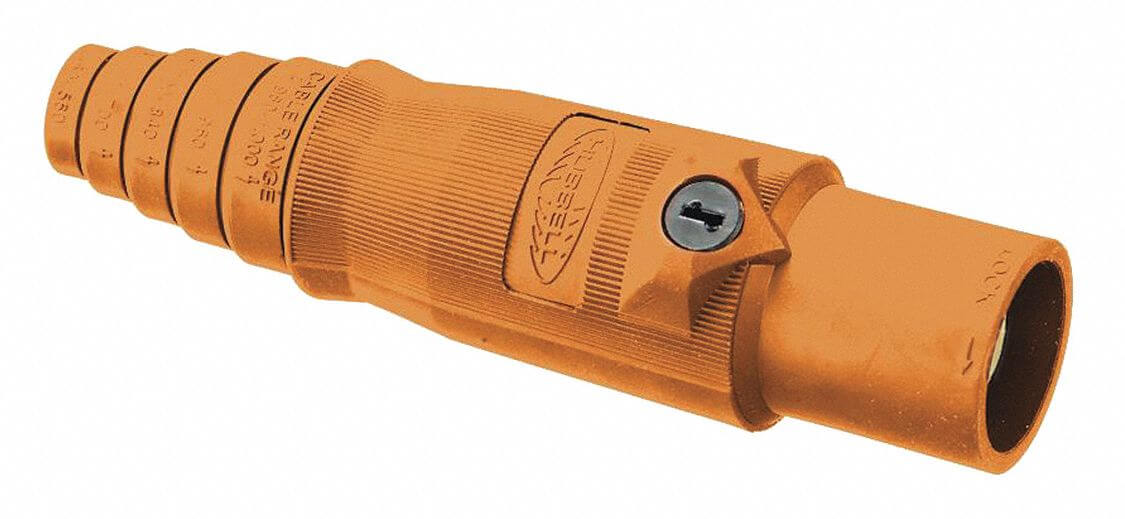

HUBBELL WIRING DEVICE-KELLEMS HBL400MO Single Pole Connector Male Orange
Item: AF7BDDModel: HBL400MOCross Ref: 20TR53
7 In Stock
Ships within 2 days via
10.00% off
€91.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Single Pole Connector |
| Amps | 400A |
| Cable Range | 4/0 AWG to 2/0 AWG |
| Cable Size Range (in.) | 2/0 to 4/0 |
| Color | Orange |
| Compatible With Series | 15, 16, Insulgrip |
| Conductor Material | Brass |
| Contact Material | Brass |
| Contact Type | Single Cam |
| Current Rating | 400A |
| End Type | Taper Nose |
| Housing Color | Orange |
| Housing Material | Thermoplastic Elastomer |
| Male/female | Male |
| Material | TPE |
| Nema Enclosure Rating | Nema 3R, Nema 4X, Nema 12 |
| Nema Rating | NEMA 3R, NEMA 4X, NEMA 12 |
| Overall Length | 7.01" |
| Overall Width | 1.95" |
| Power Terminals Wire Size | 2/0 to 4/0 |
| Product Datasheet | hubbell-wiring-device-kellems-hbl400mo.pdf |
| Single Pole Device Style | Taper Nose |
| Standards | Ansi/Nfpa 70, Cul Listed, National Electric Code (Nec), Ul Enclosure Types 3R, 4X, 12, Ul Listed |
| Terminal Connection Type | Double Set Screw |
| Type | Male |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 250V DC/600V AC |
Shipping Info:
| Ship weight (kg) | 0.38 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 17.81 |
| Ship width (cm) | 4.95 |
| HS code | 8536698000 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Current Rating | Housing Color | Type | Color | Amps | Terminal Connection Type | Operating Temp. | Male/female | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL15MBK | 150A | Black | Male | Black | 150A | Double Set Screw | - | Male | €41.81 | |
 |
HBL15MW | 150A | White | Male | White | 150A | Double Set Screw | - | Male | €43.89 | |
 |
HBL15MR | 150A | Red | Male | Red | 150A | Double Set Screw | - | Male | €57.18 | |
 |
HBL15MBL | 150A | Blue | Male | Blue | 150A | Double Set Screw | - | Male | €44.62 | |
 |
HBL15MGN | 150A | Green | Male | Green | 150A | Double Set Screw | - | Male | €43.89 | |
 |
HBL15FBK | 150A | Black | Female | Black | 150A | Double Set Screw | - | Female | €41.81 | |
 |
HBL15FW | 150A | White | Female | White | 150A | Double Set Screw | - | Female | €43.89 |
