HUBBELL WIRING DEVICE-KELLEMS HBL3771 Receptacle, 50A, 250VDC/600VAC, 2-Pole, 3-Wire Grounding
Item: AC8PZEModel: HBL3771Cross Ref: 3D128
7 In Stock
Ships within 2 days via
5.00% off
€326.31 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 50A |
| Connection Orientation | Straight |
| Connectivity | Screw Terminals |
| Contact Material | Brass |
| Cover Type | No Cover |
| Dielectric Strength | Withstands 2,000V minimum |
| Flange Type | Non Flanged |
| For Environment | Dry |
| For Location | Indoor |
| Grade | Grade Industrial |
| Grounding | Grounded |
| Housing Color | Black |
| Housing Material | Phenolic |
| Ip Rating | IP20 |
| Length | 3 7/25" |
| Market | Industrial |
| Material | Phenolic |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 4 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 8 AWG |
| Mounting | Screw Mounting |
| Mounting Type | Flush |
| Nema Configuration | Non NEMA |
| Nema Enclosure Rating | 1 |
| Nema Rating | NEMA 12, NEMA 4X |
| Nema Receptacle Configuration | Non NEMA |
| No. Of Gangs | 1 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Phase | 1, 3 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-hbl3771.pdf |
| Resistance Properties | Heat Resistant |
| Shrouded | No |
| Type | Non Shrouded |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 250V DC/600V AC |
| Wattage | 30000 W |
| Watts | 30000 W |
| Width | 2 3/25" |
| Wire Connection Type | Screw Terminal |
| Wire Size | 8 AWG to 4 AWG |
| Wire Type | Standard |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 5.99 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 5.38 |
| HS code | 8536698000 |
| Country of Origin | US |
Product Details:
- Special Features: With Cover
Documentation:
Product Variants
| Product | Model | No. Of Poles | Phase | Wire Size | Amps | Material | Watts | Voltage | Height | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL20403 | 3 | 3 | #10 AWG to #6 AWG | 20/30A | Bronze, Thermoplastic | 18000 W | 250V DC/600V AC | 1 3/4" | 1 | €409.21 | |
 |
HBL23000HG | 2 | 1 | #14 AWG to # 12 AWG | 20A | Thermoplastic | - | 125V AC | - | 1 | €275.72 | |
 |
HBL3769 | 3 | 1, 3 | 8 AWG to 4 AWG | 50A | Phenolic | 30000 W | 250V DC/600V AC | 2 9/25" | 1 | €375.45 | |
 |
HBL7210B | 2 | 1 | 16 AWG to 8 AWG | 20A | Thermoplastic | 5000 W | 250V AC | 1.3" | 1 | €49.84 | |
 |
HBL7379 | 3 | 1, 3 | 8 AWG to 4 AWG | 50A | Phenolic | 30000 W | 250V DC/600V AC | - | 1 | €337.33 | |
 |
HBL7535 | 2 | 1 | 18 AWG to 10 AWG | 15A | Thermoplastic | 1875 W | 125V AC | - | 1 | €42.90 | |
 |

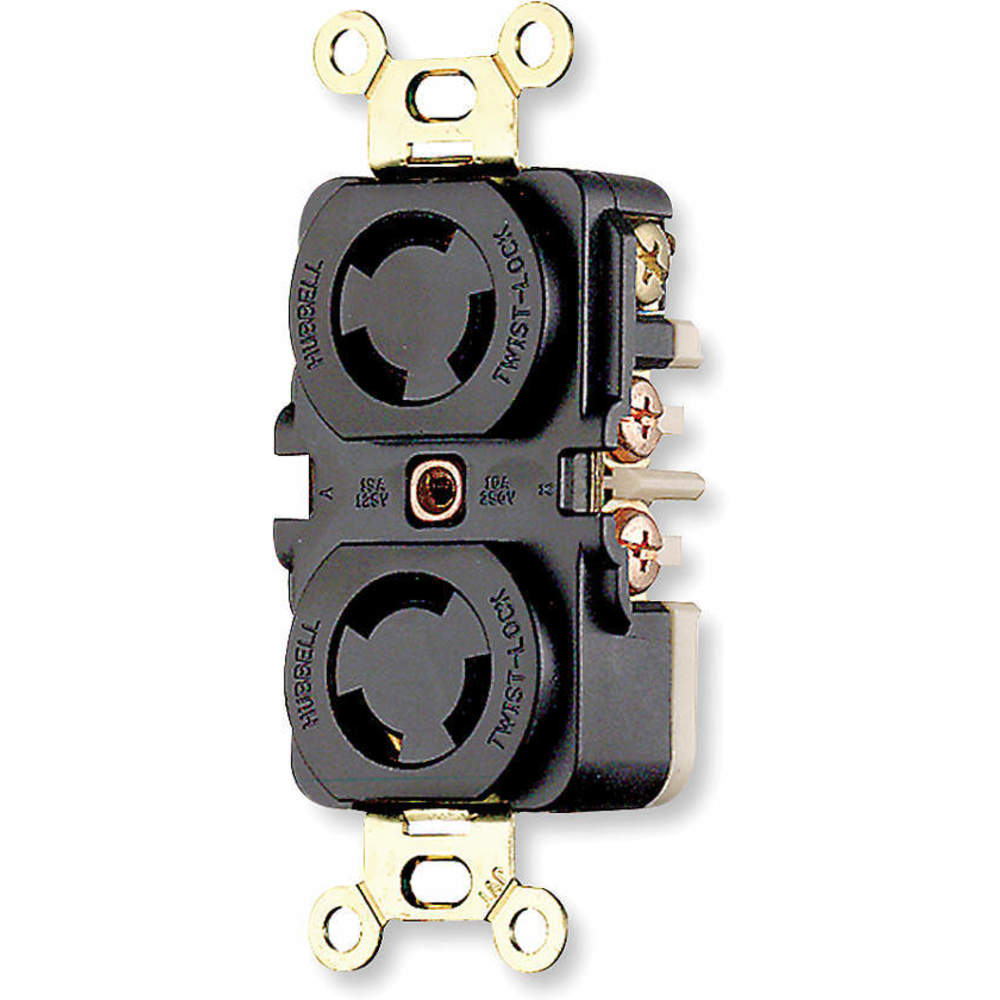

HBL7580 | 3 | 1 | 18 AWG to 10 AWG | 10 @ 125V/15 @ 250V | Thermoplastic | 3750 W | 125/250V AC | 1.17" | 1 | €114.83 |
