HUBBELL WIRING DEVICE-KELLEMS HBL360P4W Iec Pin And Sleeve Plug, Male, 60 A, 125 VAC, 2 Pole, Yellow
Item: AB3TPBModel: HBL360P4WCross Ref: 1VCL2
7 In Stock
Ships within 2 days via
5.00% off
€742.92 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Pin and Sleeve Plug |
| Amps | 60A |
| Cap Type | No Cap, Cover |
| Color | Yellow |
| Connection Orientation | Straight |
| Cord Type | Portable |
| Exposure Conditions | Wateright |
| Face Dia. | 2.72" |
| Features | Gasketed Sealing Ring Provides Watertight Seal |
| For Max. Cable Dia. | 1.45" |
| For Min. Cable Dia. | 1/2" |
| Grounding | Grounded |
| Grounding Style | IEC |
| Housing Color | Yellow |
| Housing Material | Polybutylene Terephthalate |
| Hp | 2 hp |
| Ip Rating | IP67 |
| Material | Composite |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 2 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 8 AWG |
| Mounting Style | Cord |
| No. Of Poles | 2.0 |
| No. Of Wires | 3 |
| Overall Length | 10.14" |
| Phase | 1 |
| Power Indicating Light | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl360p4w.pdf |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Reverse Service | No |
| Shrouded | Yes |
| Switch Rated | No |
| Type | Plug |
| Ul 94 Flammability Rating | HB |
| Voltage | 125V , 125V AC |
| Wire Connection Type | Screw Terminal |
| Wire Size | 8 AWG to 2 AWG |
Shipping Info:
| Ship weight (kg) | 1.01 |
| Ship height (cm) | 12.45 |
| Ship length (cm) | 25.76 |
| Ship width (cm) | 14.22 |
| HS code | 8536904000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | No. Of Poles | Amps | Color | Phase | Wire Size | Voltage | Housing Color | No. Of Wires | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
HBL3100P4W | 2.0 | 100A | Yellow | 1 | #3 AWG to #1/0 AWG | 125V AC | Yellow | 3 | €1,047.38 | |
 |

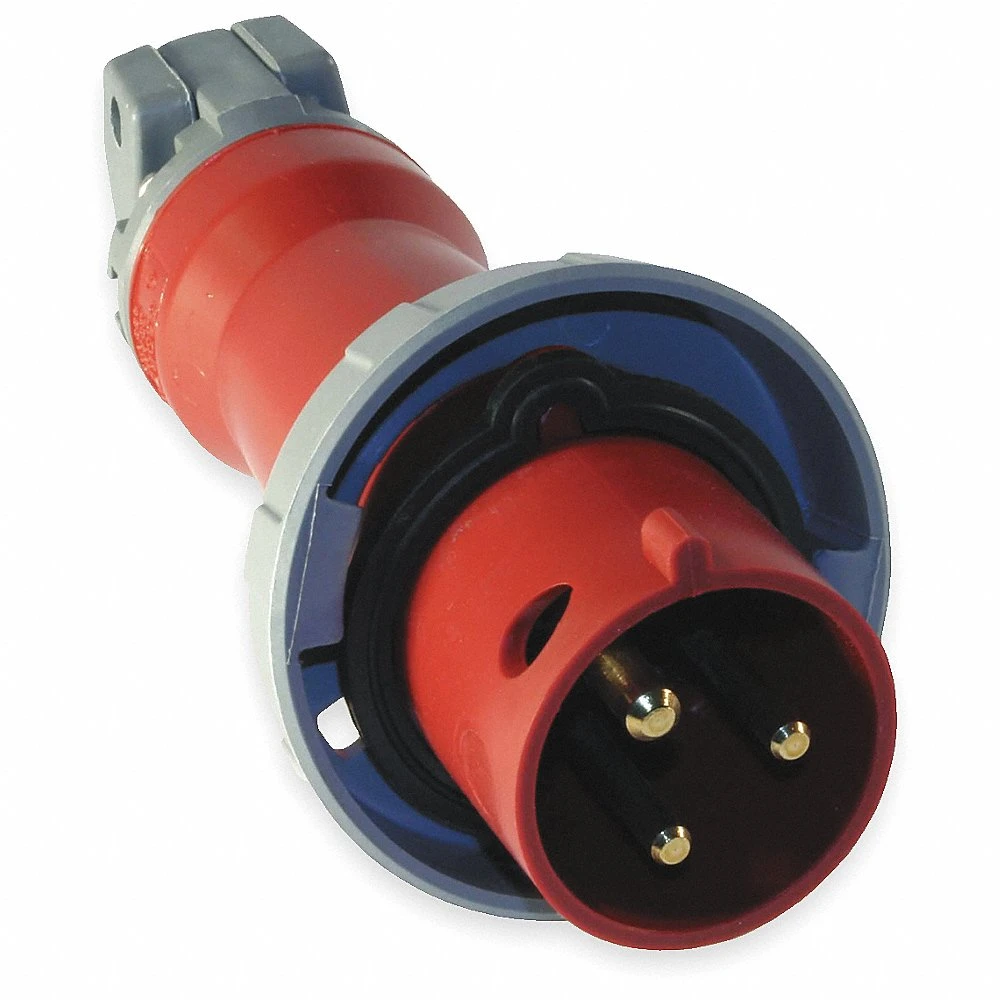

HBL320P7W | 2.0 | 20A | Red | 1 | 14 AWG to 10 AWG | 480V AC | Red | 3 | €384.92 | |
|
HBL330P4W | 2.0 | 30A | Yellow | 1 | 12 AWG to 8 AWG | 125V AC | Yellow | 3 | €624.99 | |
 |

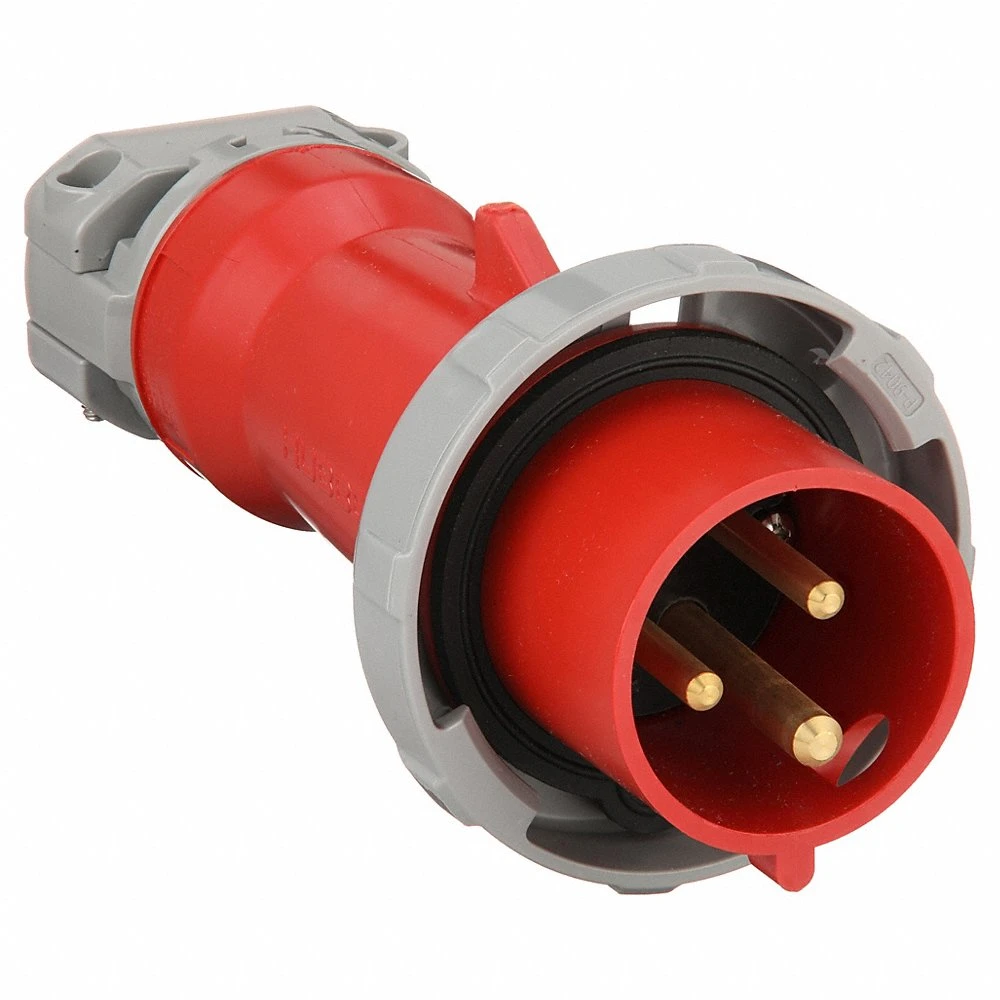

HBL330P7W | 2.0 | 30A | Red | 1 | 12 AWG to 8 AWG | 480V AC | Red | 3 | €541.63 | |
 |

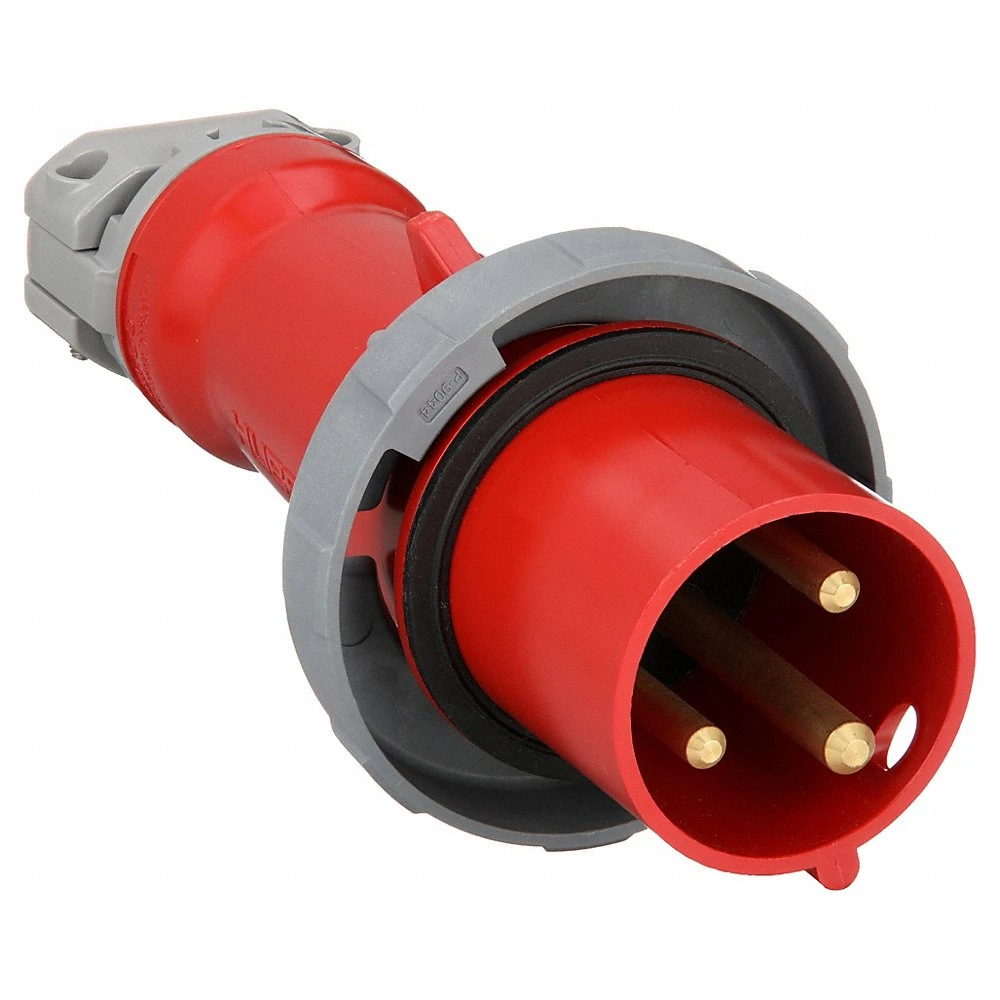

HBL360P7W | 2.0 | 60A | Red | 1 | 8 AWG to 2 AWG | - | - | 3 | €745.67 | |
 |

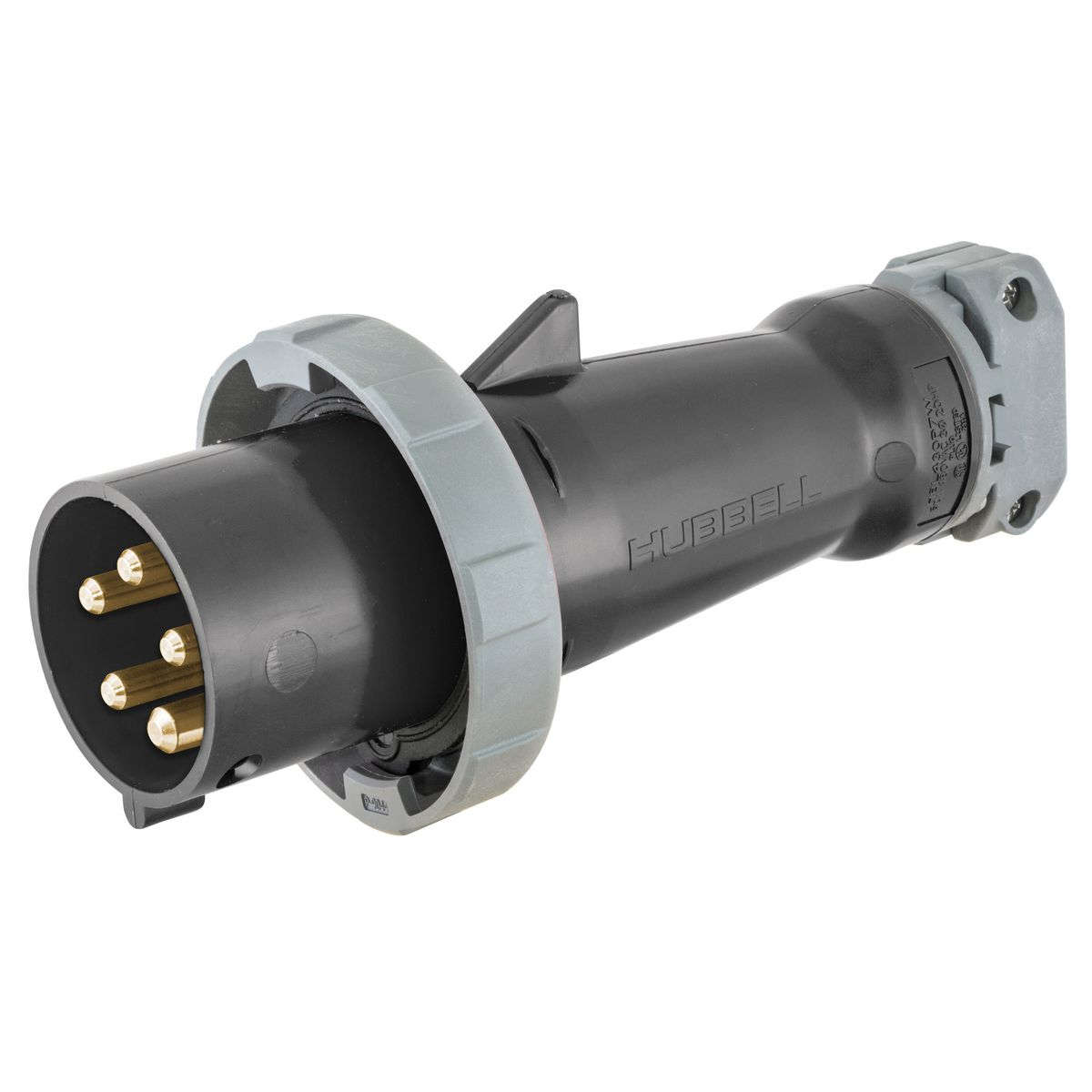

HBL5100P5W | 4.0 | 100A | Black | 3 | #3 AWG to #1/0 AWG | 600V | Black | 5 | €1,286.80 | |
 |
HBL5100P7W | 4.0 | 100A | Red | 3 | #3 AWG to #1/0 AWG | 277/480V | Red | 5 | €1,258.77 |
