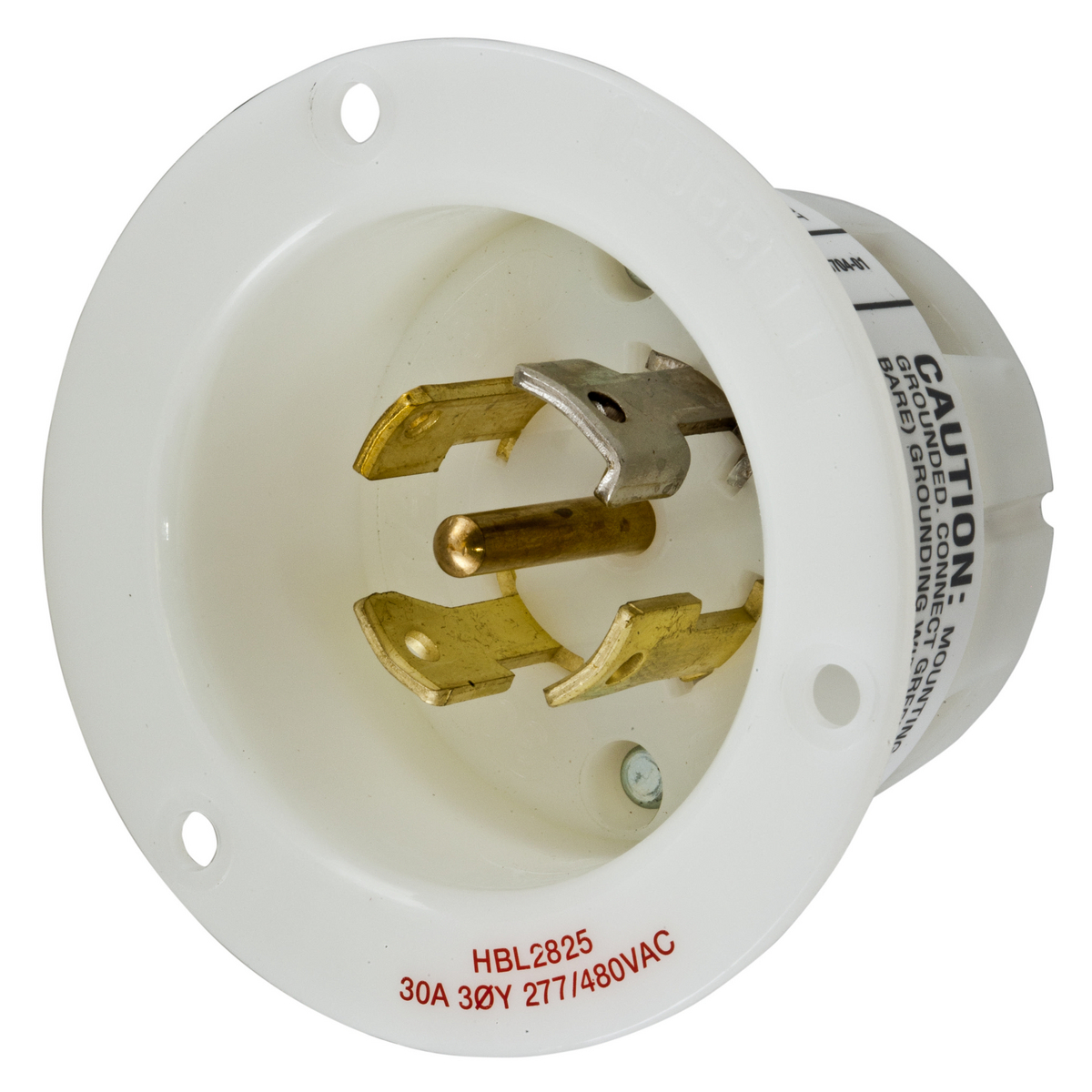

HUBBELL WIRING DEVICE-KELLEMS HBL2825 Flanged Inlet, 30A, 3-Phase, 277/480VAC, 4-Pole, 5-Wire Grounding, White
Item: AC8QKXModel: HBL2825Cross Ref: 3D660
7 In Stock
Ships within 2 days via
5.00% off
€134.34 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flanged Inlet |
| Amps | 30A |
| Blade Material | Brass |
| Color | White |
| Connection Orientation | Straight |
| Connectivity | Back Wired Screw Terminals |
| Dielectric Strength | Withstands 2,000V minimum |
| Face Dia. | 2.23" |
| Face Plate Width | 0.09" |
| Features | Accepts Slotted, Phillips, And Robertson Head Drivers |
| Flange Dia. | 3.06" |
| Flange Material | Nylon |
| Flange Type | Flanged |
| For Environment | Dry |
| For Location | Indoor |
| Grade | General Use |
| Grounding | Grounded |
| Height | 2.27" |
| Housing Color | White |
| Housing Material | Nylon |
| Hp | 10 hp |
| Included | Mounting Screws |
| Included Mounting Hardware | Yes |
| Insulation | Insulated Body |
| Ip Rating | IP20 |
| Length | 3.06" |
| Market | Industrial |
| Material | Nylon |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 8 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 16 AWG |
| Mounting | Screw Mounting |
| Mounting Type | Flush |
| Nema Enclosure Rating | NEMA 4X, NEMA 12 |
| Nema Plug Configuration | L22-30P |
| Nema Rating | NEMA L22-30P |
| No. Of Blades | 5 |
| No. Of Poles | 4 |
| No. Of Wires | 5 |
| Overall Depth | 2.27" |
| Phase | 3 |
| Product Datasheet | hubbell-wiring-device-kellems-hbl2825.pdf |
| Resistance Properties | Impact Resistant, Moisture Resistant |
| Shrouded | No |
| Type | Non Shrouded |
| Ul 94 Flammability Rating | HB |
| Voltage | 277/480V AC |
| Wattage | 14400 W |
| Watts | 14400 W |
| Wire Connection Type | Screw Terminal |
| Wire Size | 16 AWG to 8 AWG |
| Wire Type | Standard |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.15 |
| Ship height (cm) | 5.77 |
| Ship length (cm) | 7.77 |
| Ship width (cm) | 7.77 |
| HS code | 8536698000 |
| Country of Origin | US |
Product Details:
- Special Features: With Cover
Documentation:
Product Variants
| Product | Model | No. Of Poles | Wire Size | Material | Phase | Color | Amps | Watts | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL2315 | 2 | 16 AWG to 8 AWG | Nylon | 1 | White | 20A | 2500 W | 2.09" | €63.76 | |
 |
HBL2325 | 2 | 16 AWG to 8 AWG | Nylon | 1 | White | 20A | 5000 W | 2.09" | €60.59 | |
 |
HBL2415 | 3 | 16 AWG to 8 AWG | Nylon | 1 | White | 20A | 5000 W | 2.27" | €85.35 | |
 |
HBL2615 | 2 | 16 AWG to 8 AWG | Nylon | 1 | White | 30A | 3750 W | 2.09" | €106.19 | |
 |
HBL2625 | 2 | 16 AWG to 8 AWG | Nylon | 1 | White | 30A | 7500 W | 2.09" | €105.17 | |
 |
HBL2715 | 3 | 16 AWG to 8 AWG | Nylon | 1 | White | 30A | 7500 W | 2.27" | €126.39 | |
 |
HBL2725 | 3 | 16 AWG to 8 AWG | Nylon | 3 | White | 30A | 7500 W | 2.27" | €141.41 |
