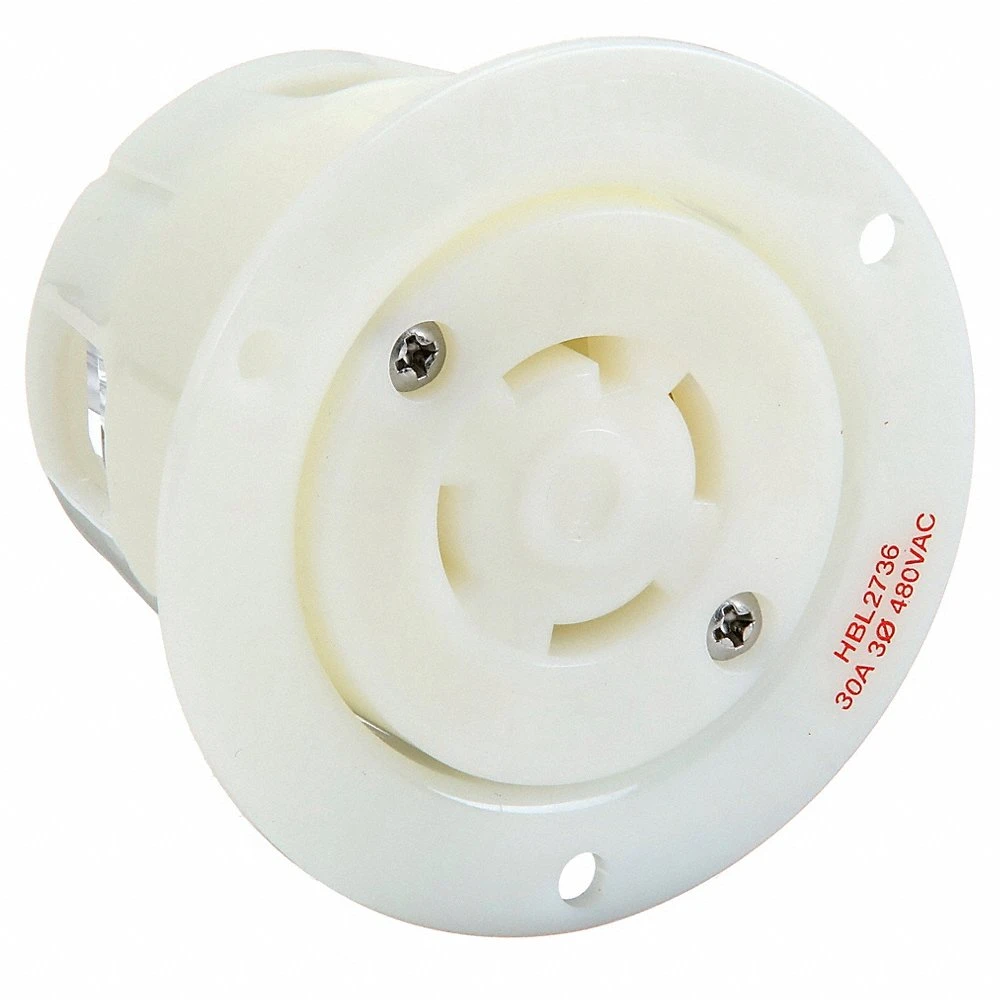

HUBBELL WIRING DEVICE-KELLEMS HBL2736 Flanged Receptacle, 30A, 3-Phase, 480VAC, 3-Pole, 4-Wire Grounding
Item: AC8PXUModel: HBL2736Cross Ref: 3D094
7 In Stock
NEMA L16-30R
14400 W
Ships within 2 days via
5.00% off
€143.39 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flanged Receptacle |
| Afci | No |
| Amps | 30A |
| Color | White |
| Connection Orientation | Straight |
| Connectivity | Back Wired Screw Terminals |
| Contact Material | Brass |
| Cover Type | No Cover |
| Dielectric Strength | Withstands 2,000V minimum |
| Features | Accepts Slotted, Phillips, And Robertson Head Drivers |
| Flange Shape | Round |
| Flange Type | Flanged |
| For Environment | Dry |
| For Location | Indoor |
| Grade | Grade Industrial |
| Grounding | Grounded |
| Height | 2.27" |
| Housing Color | White |
| Housing Material | Nylon |
| Hp | 10 hp |
| Included | Mounting Screws |
| Included Mounting Hardware | Yes |
| Ip Rating | IP20 |
| Length | 3.06" |
| Market | Industrial |
| Material | Nylon |
| Max. Hp | 10 hp |
| Max. Operating Temp. | 167°F |
| Max. Wire Size | 8 AWG |
| Min. Operating Temp. | -40°F |
| Min. Wire Size | 16 AWG |
| Mounting | Screw Mounting |
| Mounting Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Receptacle Configuration | L16-30R |
| No. Of Gangs | 1 |
| No. Of Poles | 3 |
| No. Of Wires | 4 |
| Phase | 3 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-hbl2736.pdf |
| Resistance Properties | Impact Resistant |
| Shrouded | No |
| Type | Non Shrouded |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 480V AC |
| Wattage | 14400 W |
| Watts | 14400 W |
| Width | 3.06" |
| Wire Connection Type | Screw Terminal |
| Wire Size | 16 AWG to 8 AWG |
| Wire Type | Standard |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 5.77 |
| Ship length (cm) | 7.77 |
| Ship width (cm) | 7.77 |
| HS code | 8536698000 |
| Country of Origin | US |
Product Details:
- Special Features: With Cover
Documentation:
Product Variants
| Product | Model | Phase | Flange Shape | Housing Color | Resistance Properties | Wire Size | Material | Amps | Connectivity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL2316 | 1 | Round | White | Impact Resistant | 16 AWG to 8 AWG | Nylon | 20A | Back Wired Screw Terminals | €96.82 | |
 |
HBL2326 | 1 | Round | White | Moisture Resistant | 16 AWG to 8 AWG | Nylon | 20A | Back Wired Screw Terminals | €94.01 | |
 |
HBL2336 | 1 | Round | White | Moisture Resistant | 16 AWG to 8 AWG | Nylon | 20A | Back Wired Screw Terminals | €90.79 | |
 |
HBL2416 | 1 | Round | White | Moisture Resistant | 16 AWG to 8 AWG | Nylon | 20A | Back Wired Screw Terminals | €115.25 | |
 |
HBL2426 | 3 | Round | White | Moisture Resistant | 16 AWG to 8 AWG | Nylon | 20A | Back Wired Screw Terminals | €113.30 | |
 |
HBL2436 | 3 | Round | White | Moisture Resistant | 16 AWG to 8 AWG | Nylon | 20A | Back Wired Screw Terminals | €119.65 | |
 |
HBL2616 | 1 | Round | White | Moisture Resistant | 16 AWG to 8 AWG | Nylon | 30A | Back Wired Screw Terminals | €117.84 |
