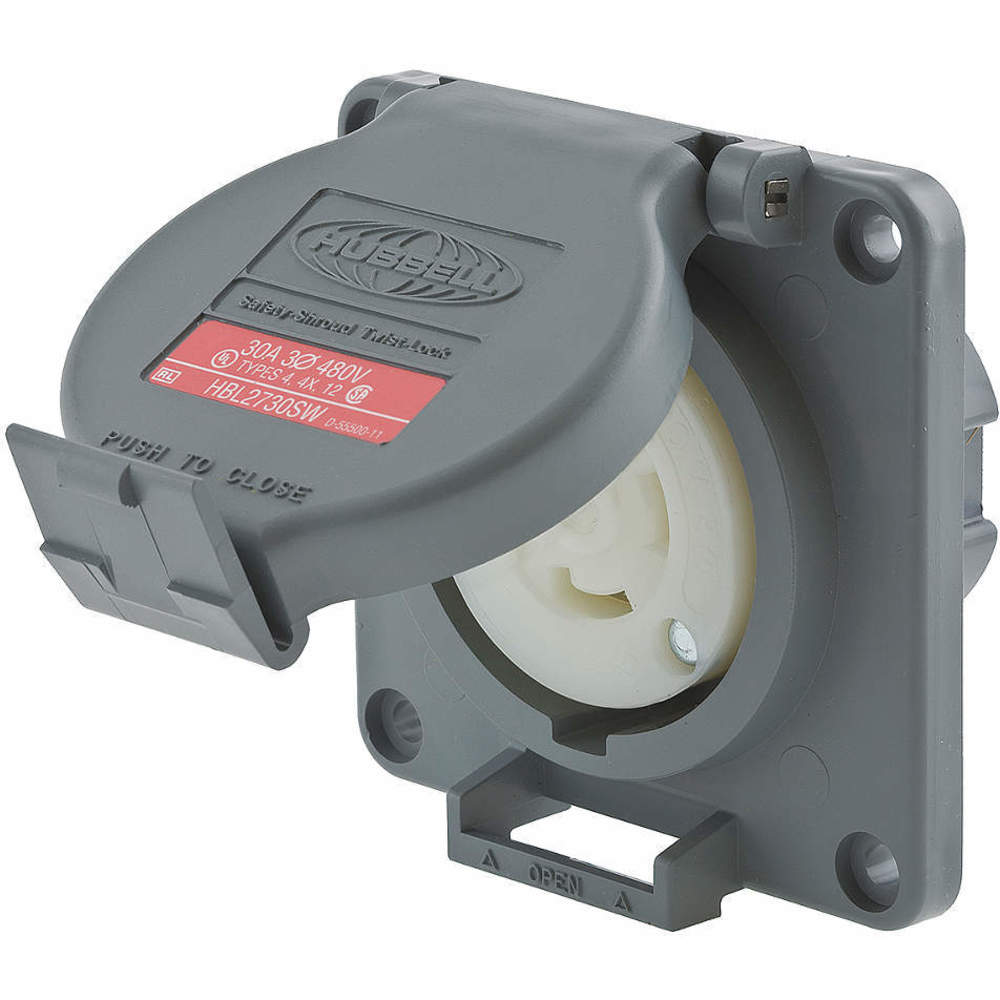

HUBBELL WIRING DEVICE-KELLEMS HBL2730SW Watertight Receptacle, 30A, 3-Phase, Delta, 480VAC, 3-Pole, 4-Wire Grounding
Item: AD6ZTWModel: HBL2730SWCross Ref: 4CV51
7 In Stock
NEMA L16-30R
Ships within 2 days via
10.00% off
€249.76 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Watertight Shrouded Receptacle |
| Afci | No |
| Amps | 30A |
| Color | Gray |
| Connection Orientation | Straight |
| Connectivity | Back Wired Screw Terminals |
| Contact Material | Brass |
| Cover Type | Locking Flip Up Cover |
| Current Rating | 30A |
| Dielectric Strength | Withstands 2,000V minimum |
| Flange Type | Non Flanged |
| Grade | Grade Industrial |
| Grounding | Grounded |
| Height | 2.9" |
| Horsepower Rating | 10 hp |
| Housing Color | Gray |
| Housing Material | Valox |
| Ip Rating | IP69K |
| Length | 3 3/4" |
| Market | Industrial |
| Max. Hp | 10 hp |
| Maximum Operating Temperature | 85°C |
| Maximum Wire Size | 8 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 16 AWG |
| Mounting | Screw Mounting |
| Mounting Type | Flush |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 12 |
| Nema Rating | NEMA L16-30R |
| Nema Receptacle Configuration | L16-30R |
| Number Of Gangs | 1 |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Operating Temp. | -40°C to +85°C |
| Phase | 3 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-hbl2730sw.pdf |
| Resistance Properties | Moisture Resistant, Watertight |
| Shrouded | Yes |
| Type | Shrouded |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 480V |
| Voltage Rating | 480V AC |
| Wattage | 14400 W |
| Width | 3 3/4" |
| Wire Connection Type | Screw Terminals |
| Wire Size | 16 AWG to 8 AWG |
| Wire Type | Standard |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 7.37 |
| Ship length (cm) | 9.53 |
| Ship width (cm) | 9.53 |
| HS code | 8536698000 |
| Country of Origin | US |
Product Details:
- Special Features: With Locking Cover
Documentation:
Product Variants
| Product | Model | Phase | Number Of Poles | Current Rating | Voltage Rating | Number Of Wires | Ip Rating | Height | Wattage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL2610SW | 1 | 2 | 30A | 125V AC | 3 | IP20 | 2.69" | 3750 W | €260.95 | |
 |

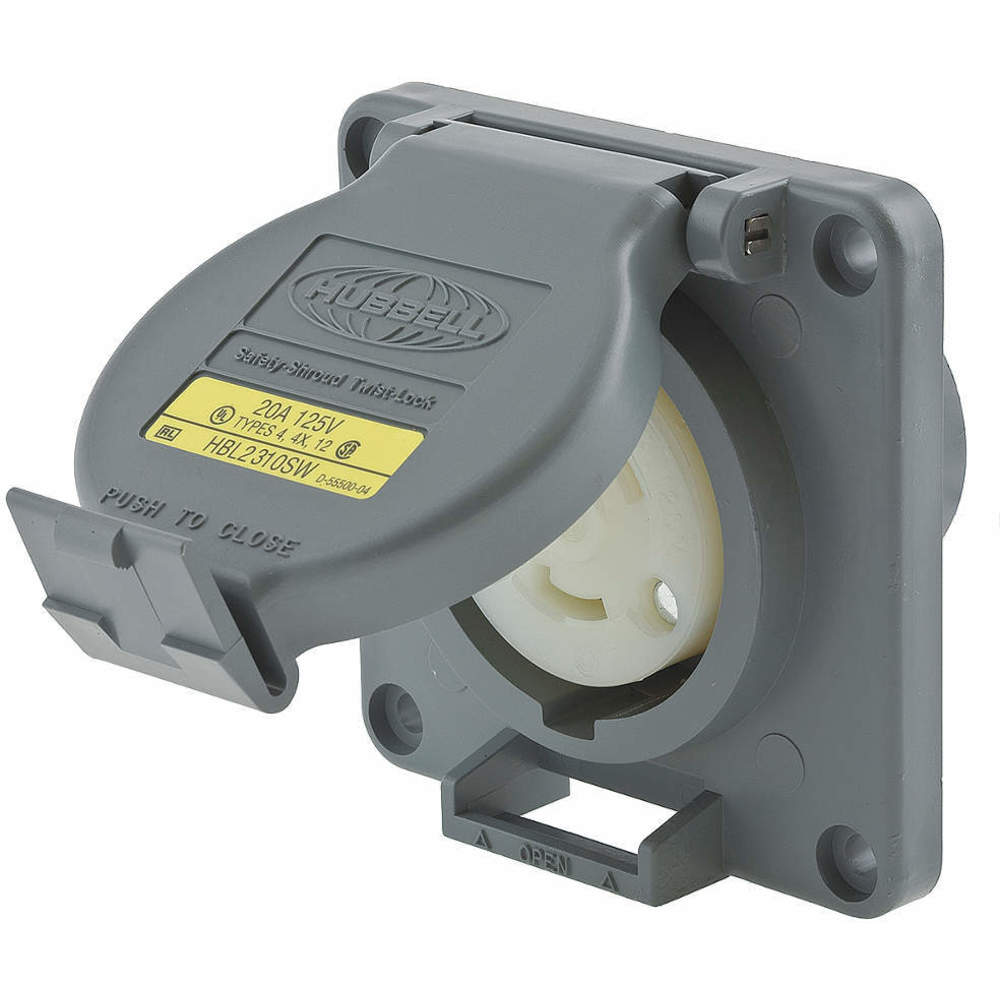

HBL2310SW | 1 | 2 | 20A | 125V AC | 3 | IP69K | 2.69" | 2500 W | €260.96 | |
 |

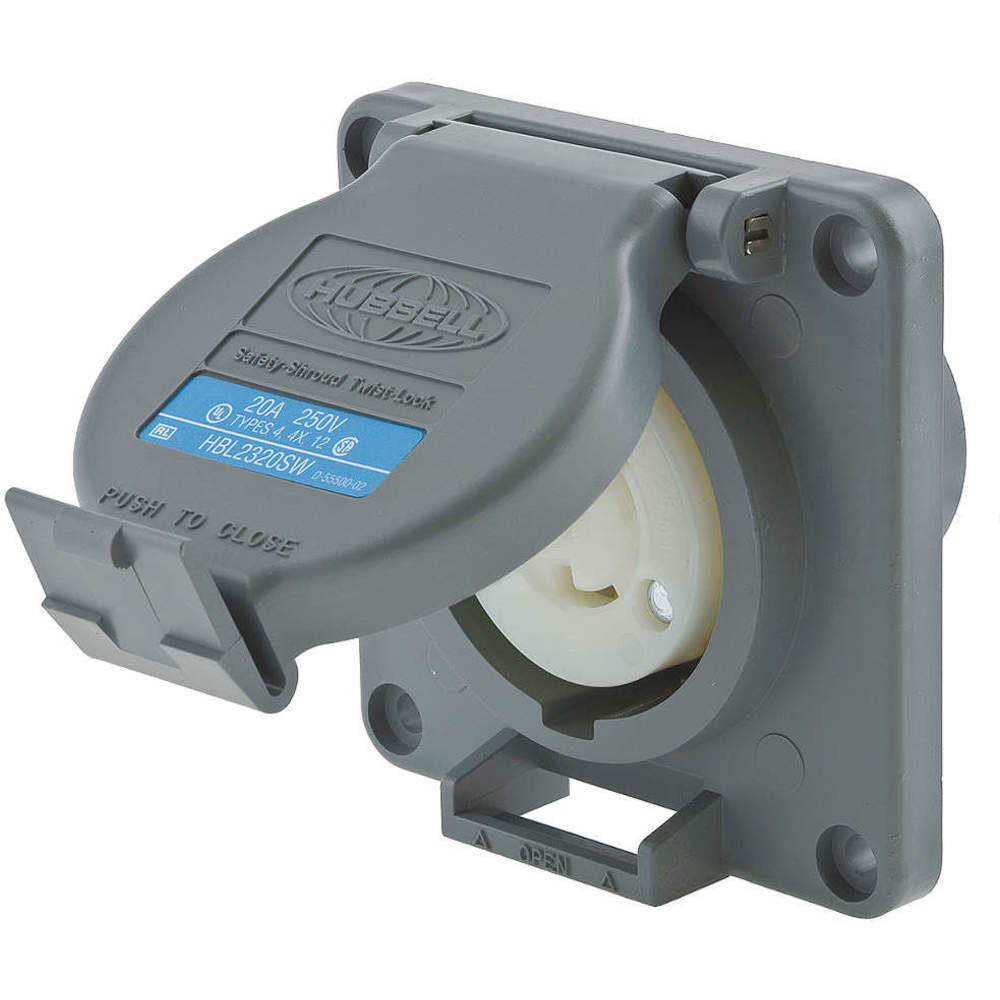

HBL2320SW | 1 | 2 | 20A | 250V AC | 3 | IP69K | 2.69" | 5000 W | €223.75 | |
 |

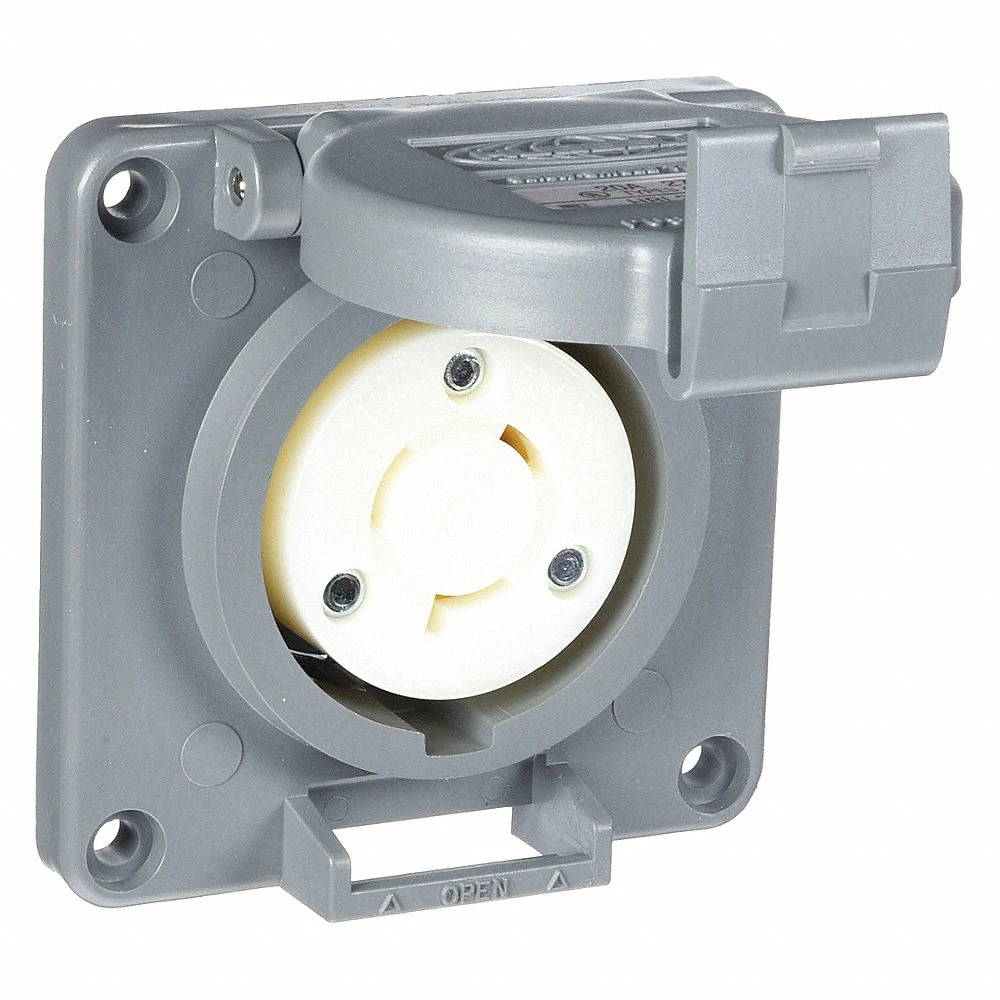

HBL2330SW | 1 | 2 | 20A | 277V AC | 3 | IP69K | 2.69" | 5540 W | €232.07 | |
 |

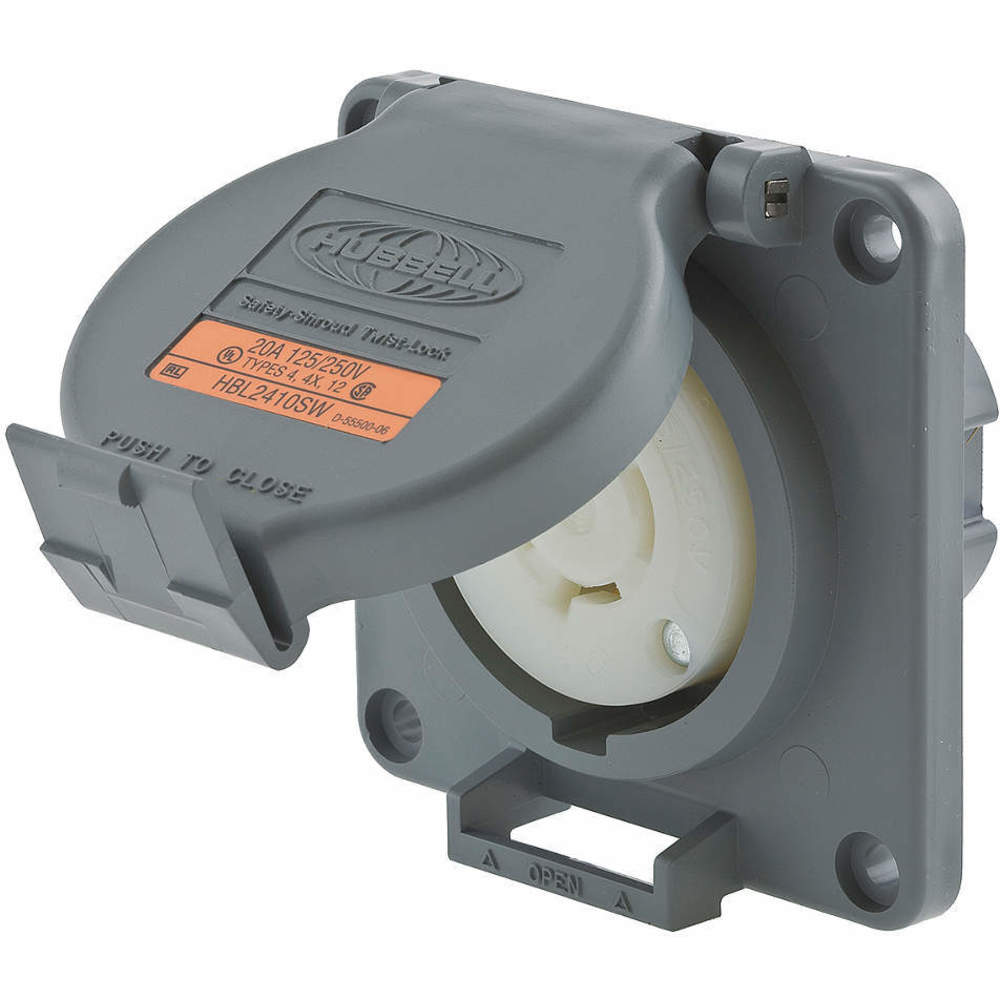

HBL2410SW | 1 | 3 | 20A | 125/250V AC | 4 | IP69K | 2.9" | 5000 W | €245.98 | |
 |

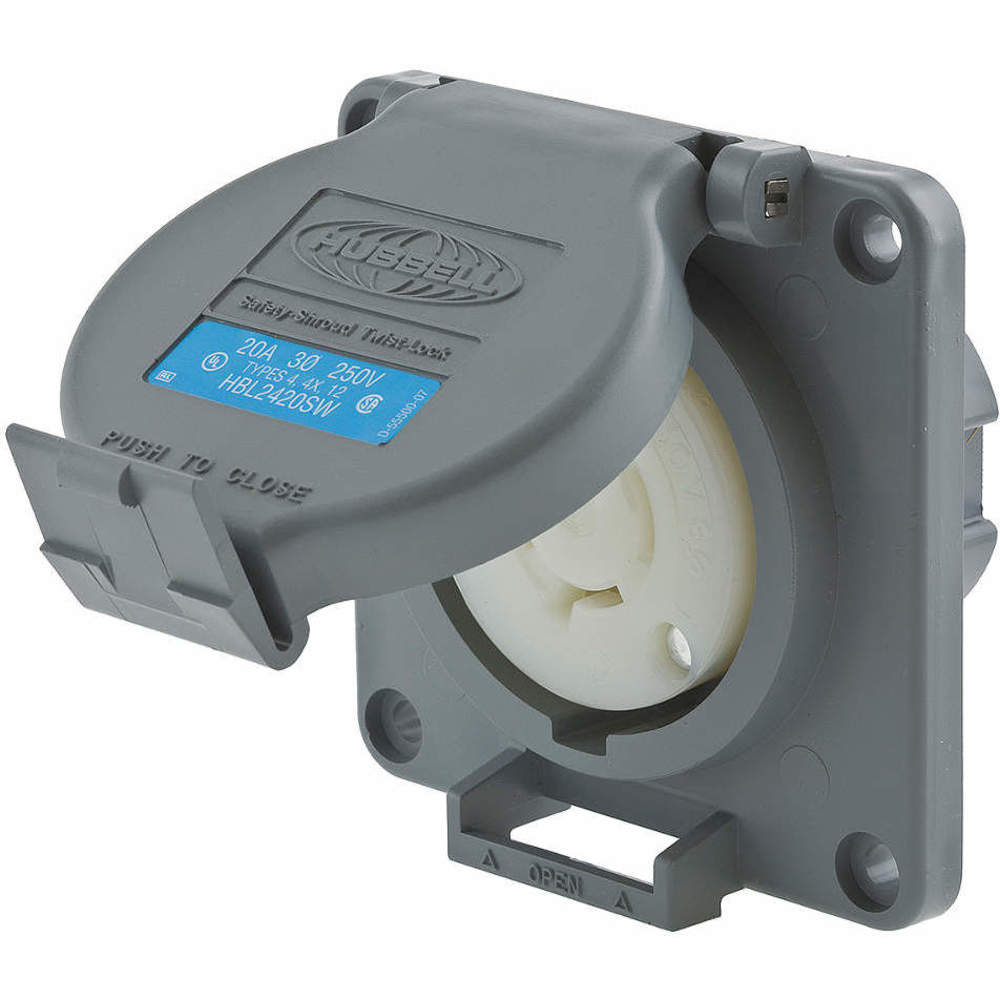

HBL2420SW | 3 | 3 | 20A | 250V AC | 4 | IP69K | 2.9" | 5000 W | €217.61 | |
 |

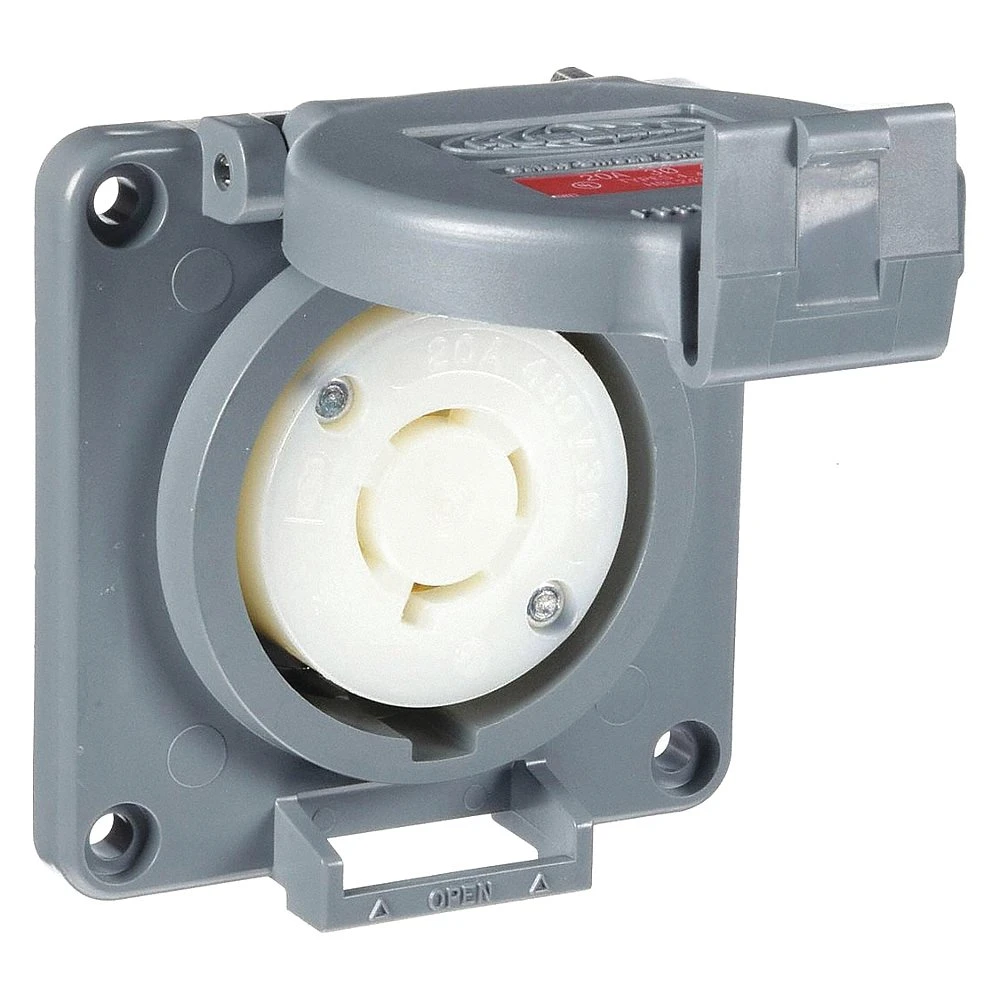

HBL2430SW | 3 | 3 | 20A | 480V AC | 4 | IP69K | 2.9" | 9600 W | €268.97 |
