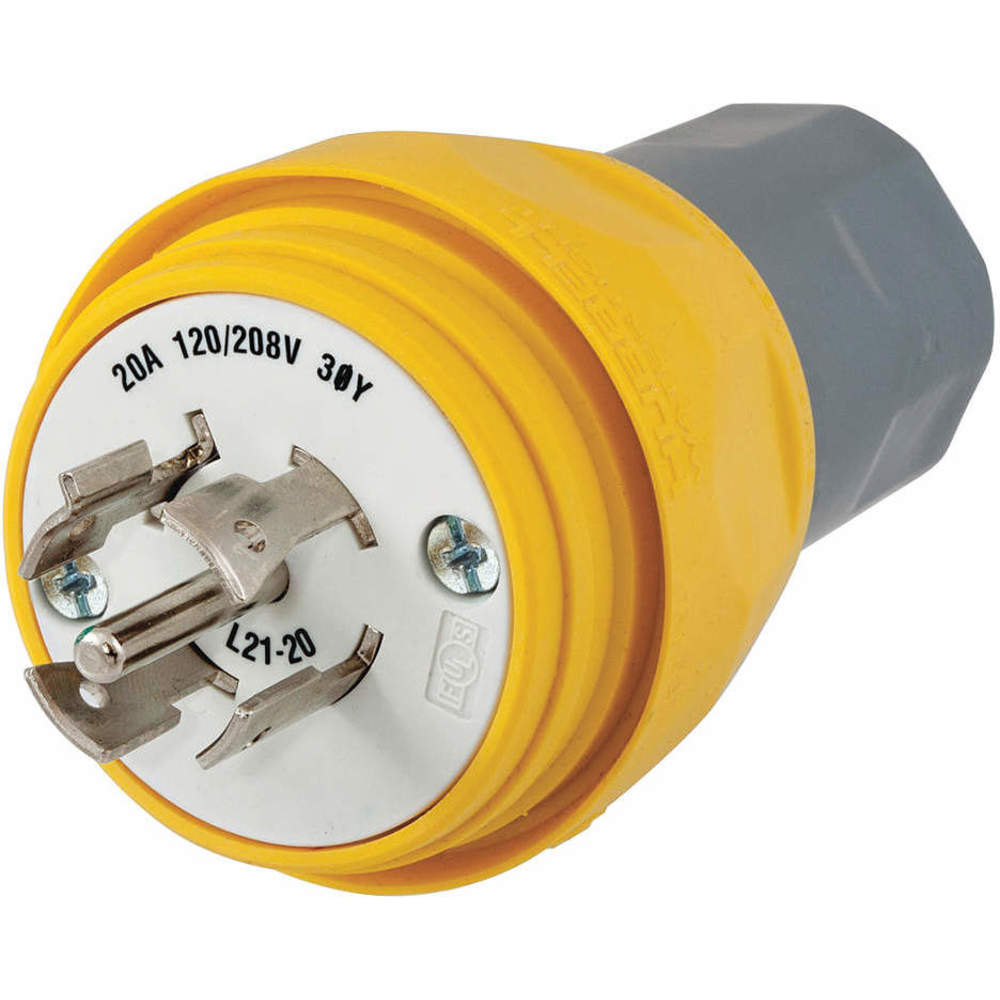

HUBBELL WIRING DEVICE-KELLEMS HBL26W81 Plug, 20A, 3 Phase, Wye, 120/208V, 4 Pole, 5 Wire, Yellow
Item: AH8XQBModel: HBL26W81Cross Ref: 39AW97
7 In Stock
Ships within 2 days via
5.00% off
€187.51 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Watertight Locking Plug |
| Amps | 20A |
| Anti Microbial | No |
| Blade Material | Nickel Plated Brass |
| Body Length | 2.51" |
| Color | Yellow |
| Connection Orientation | Straight |
| Cord Size | 0.325" to 0.875" |
| For Max. Cable Dia. | 0.875" |
| For Min. Cable Dia. | 0.375" |
| Grade | Grade Industrial |
| Height | 3 24/25" |
| Housing Color | Yellow |
| Housing Material | Thermoplastic Elastomer |
| Hp | 2 hp |
| Ip Rating | IP69K |
| Length | 2.51" |
| Market | Industrial |
| Material | TPE, Valox |
| Max. Operating Temp. | 60°C |
| Min. Operating Temp. | -40°C |
| Nema Plug Configuration | L21-20P |
| Nema Rating | NEMA L21-20P |
| No. Of Blades | 5 |
| No. Of Poles | 4 |
| No. Of Wires | 5 |
| Outside Dia. | 2.51" |
| Overall Length | 2.51" |
| Phase | 3 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-hbl26w81.pdf |
| Resistance Properties | Chemical Resistant, Impact Resistant, Watertight |
| Shrouded | No |
| Type | Non Shrouded |
| Voltage | 120/208V AC |
| Width | 2.51" |
| Wire Connection Type | Screw Terminal |
| Wiring Style | Standard |
| Wiring Type | Standard |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 6.38 |
| Ship length (cm) | 6.38 |
| Ship width (cm) | 6.38 |
| Country of Origin | US |
Product Details:
- Corrosion Resistant : No
- Special Features: Moisture, Dust and Weather Resistant
Documentation:
Product Variants
| Product | Model | No. Of Poles | Color | Amps | Voltage | Phase | For Max. Cable Dia. | Housing Color | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL24W47A | 2 | Yellow | 15A | 125V AC | 1 | 0.625" | Yellow | 3.21" | €62.87 | |
 |
HBL24W49 | 2 | Yellow | 15A | 250V AC | 1 | 0.625" | Yellow | 3.21" | €64.02 | |
 |
HBL24W34 | 2 | Yellow | 15A | 277V AC | 1 | 0.625" | Yellow | 3.21" | €77.85 | |
 |
HBL26W47 | 2 | Yellow | 20A | 125V AC | 1 | 0.875" | Yellow | 3 24/25" | €114.31 | |
 |
HBL26W48 | 2 | Yellow | 20A | 250V AC | 1 | 0.875" | Yellow | 3 24/25" | €115.30 | |
 |
HBL26W49 | 2 | Yellow | 20A | 277V AC | 1 | 0.875" | Yellow | 3 24/25" | €118.63 | |
 |
HBL26W74 | 3 | Yellow | 20A | 125/250V AC | 1 | 0.875" | Yellow | 3 24/25" | €131.23 |
