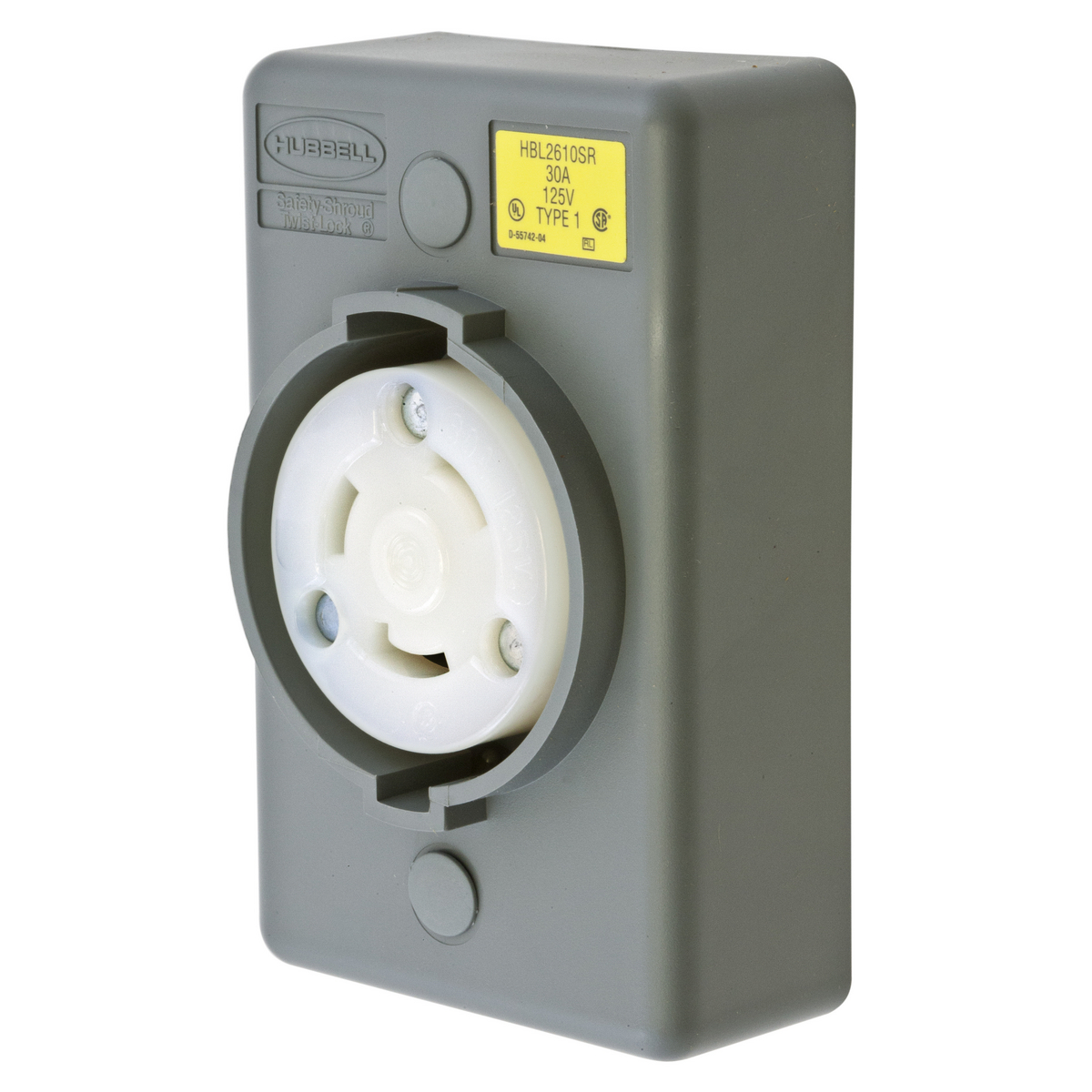

HUBBELL WIRING DEVICE-KELLEMS HBL2610SR Surface Mount Receptacle, One Gang, 30A, 125VAC, 2-Pole
Item: AD6ZRMModel: HBL2610SRCross Ref: 4CV18
7 In Stock
Ships within 2 days via
10.00% off
€89.90 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Surface Mount Shrouded Receptacle |
| Afci | No |
| Amps | 30A |
| Color | Gray |
| Connection Orientation | Straight |
| Connectivity | Back Wired Screw Terminals |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 30A |
| Dielectric Strength | Withstands 2,000V minimum |
| Flange Type | Non Flanged |
| For Environment | Dry |
| For Location | Indoor |
| Grade | Grade Industrial |
| Grounding | Grounded |
| Height | 1.58" |
| Horsepower Rating | 2 hp |
| Housing Color | Gray |
| Housing Material | Valox |
| Ip Rating | IP20 |
| Market | Industrial |
| Material | Impact Modified Pbt |
| Max. Hp | 2 hp |
| Maximum Operating Temperature | 167°F |
| Maximum Wire Size | 8 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 16 AWG |
| Mounting | Screw Mounting |
| Mounting Type | Surface |
| Nema Enclosure Rating | 1 |
| Nema Rating | NEMA L5-30R |
| Nema Receptacle Configuration | L5-30R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-hbl2610sr.pdf |
| Resistance Properties | Corrosion Resistant, Impact Resistant |
| Shrouded | Yes |
| Type | Shrouded |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V |
| Voltage Rating | 125V AC |
| Wattage | 3750 W |
| Width | 2 21/25" |
| Wire Connection Type | Screw Terminals |
| Wire Size | 16 AWG to 8 AWG |
| Wire Type | Standard |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 4.01 |
| Ship length (cm) | 11.58 |
| Ship width (cm) | 7.21 |
| HS code | 8536698000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Phase | Number Of Poles | Current Rating | Voltage Rating | Number Of Wires | Housing Color | Material | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL2310SR | 1 | 2 | 20A | 125V AC | 3 | Gray | Impact Modified Pbt | 1.58" | €71.54 | |
 |
HBL2320SR | 1 | 2 | 20A | 250V AC | 3 | Gray | Thermoplastic | 1.58" | €76.89 | |
 |
HBL2410SR | 1 | 3 | 20A | 125/250V AC | 4 | Gray | Nylon | 1.71" | €103.96 | |
 |
HBL2420SR | 3 | 3 | 20A | 250V AC | 4 | Gray | Thermoplastic | 1.71" | €91.24 | |
 |
HBL2430SR | 3 | 3 | 20A | 480V AC | 4 | Gray | Thermoplastic | 1.71" | €104.94 | |
 |
HBL2510SR | 3 | 4 | 20A | 120/208V AC | 5 | Gray | Impact Modified Pbt | 1.71" | €117.44 | |
 |

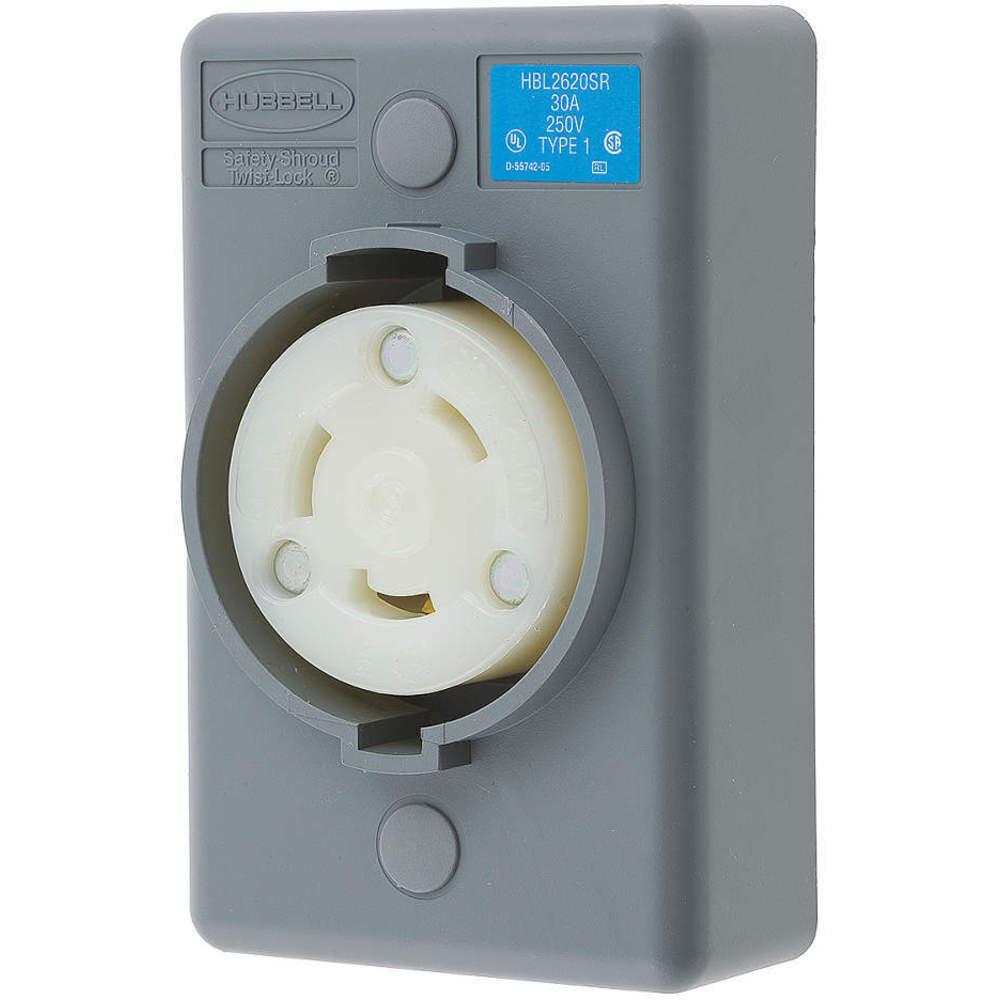

HBL2620SR | 1 | 2 | 30A | 250V AC | 3 | Gray, White | Impact Modified Pbt | 1.58" | €108.10 |
