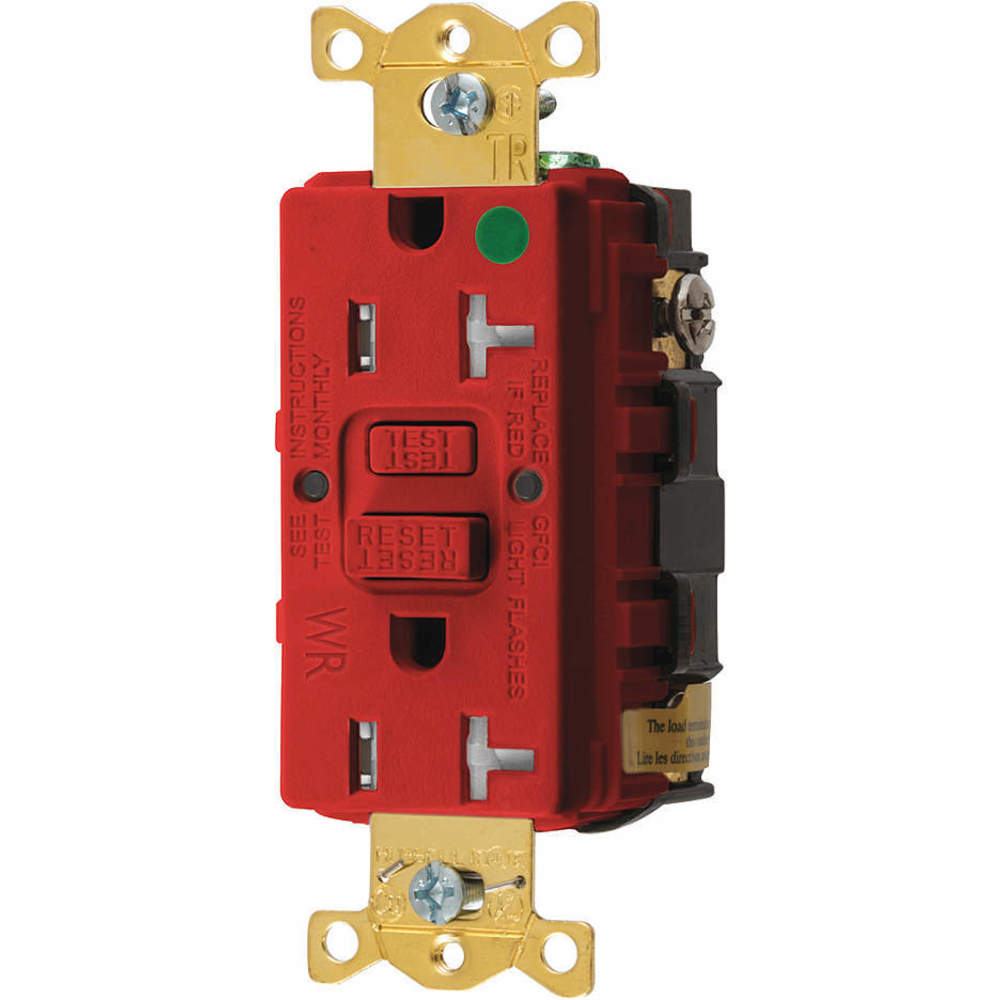

HUBBELL WIRING DEVICE-KELLEMS GFRTW83R Gfci Receptacle, 20A 125V, 2-P 3-W Grounding, 5-20R, Red
Item: AH9AAWModel: GFRTW83RCross Ref: 39EA59
7 In Stock
Ships within 2 days via
5.00% off
€127.90 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | GFCI Receptacle |
| Afci | No |
| Amps | 20A |
| Application Environment | Heavy Use Hospital Grade |
| Color | Red |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Face Plate Height | 2.8" |
| Gfci | Yes |
| Grade | Hospital Grade |
| Grounding | Grounded |
| Housing Color | Red |
| Hp | 1 hp |
| Included | Mounting Hardware |
| Included Mounting Hardware | Yes |
| Mount Hole Center To Center Height | 3.3" |
| Mounting Type | Flush |
| Nema Configuration | 5-20R |
| Nema Rating | NEMA 5-20R |
| Nema Receptacle Configuration | NEMA 5-20R |
| No. Of Gangs | 1 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Outlet Type | Decorator Duplex |
| Phase | 1 |
| Polarized | Yes |
| Power Indicator | No |
| Product Datasheet | hubbell-wiring-device-kellems-gfrtw83r.pdf |
| Receptacle Type | Duplex |
| Reset Type | Automatic |
| Resistance Property | General Purpose |
| Self Testing | Yes |
| Special Resistance Properties | Tamper Resistant, Weather Resistant |
| Standards | Nec |
| Surge Protection | No |
| Surge Suppression | No |
| Type | GFCI |
| Voltage | 125V AC |
| Weather Resistance | Yes |
| Weather Resistant | Yes |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminal |
| Wiring Method | Back And Side |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 10.46 |
| Ship length (cm) | 12.95 |
| Ship width (cm) | 4.45 |
| Country of Origin | CN |
Product Details:
- Tamper Resistant : Yes
- Self-Testing : Yes
Documentation:
Product Variants
| Product | Model | Amps | Nema Rating | Voltage | Color | Hp | Nema Configuration | Housing Color | Power Indicator | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GFR82BLK | 15A | NEMA 5-15R | 125V AC | Black | 1/2 hp | 5-15R | - | Yes | €116.98 | |
 |
GFR82GRY | 15A | NEMA 5-15R | 125V AC | Gray | 1/2 hp | 5-15R | Gray | Yes | €134.87 | |
 |
GFR82I | 15A | NEMA 5-15R | 125V AC | Ivory | 1/2 hp | 5-15R | Ivory | Yes | €125.54 | |
 |
GFR82 | 15A | NEMA 5-15R | 125V AC | Brown | 1/2 hp | 5-15R | Brown | - | €135.30 | |
 |
GFR82R | 15A | NEMA 5-15R | 125V AC | Red | 1/2 hp | 5-15R | Red | Yes | €127.16 | |
 |
GFR82W | 15A | NEMA 5-15R | 125V AC | White | 1/2 hp | 5-15R | White | Yes | €118.76 | |
 |
GFR83BLK | 20A | NEMA 5-20R | 125V AC | Black | 1 hp | 5-20R | Black | Yes | €135.72 |
