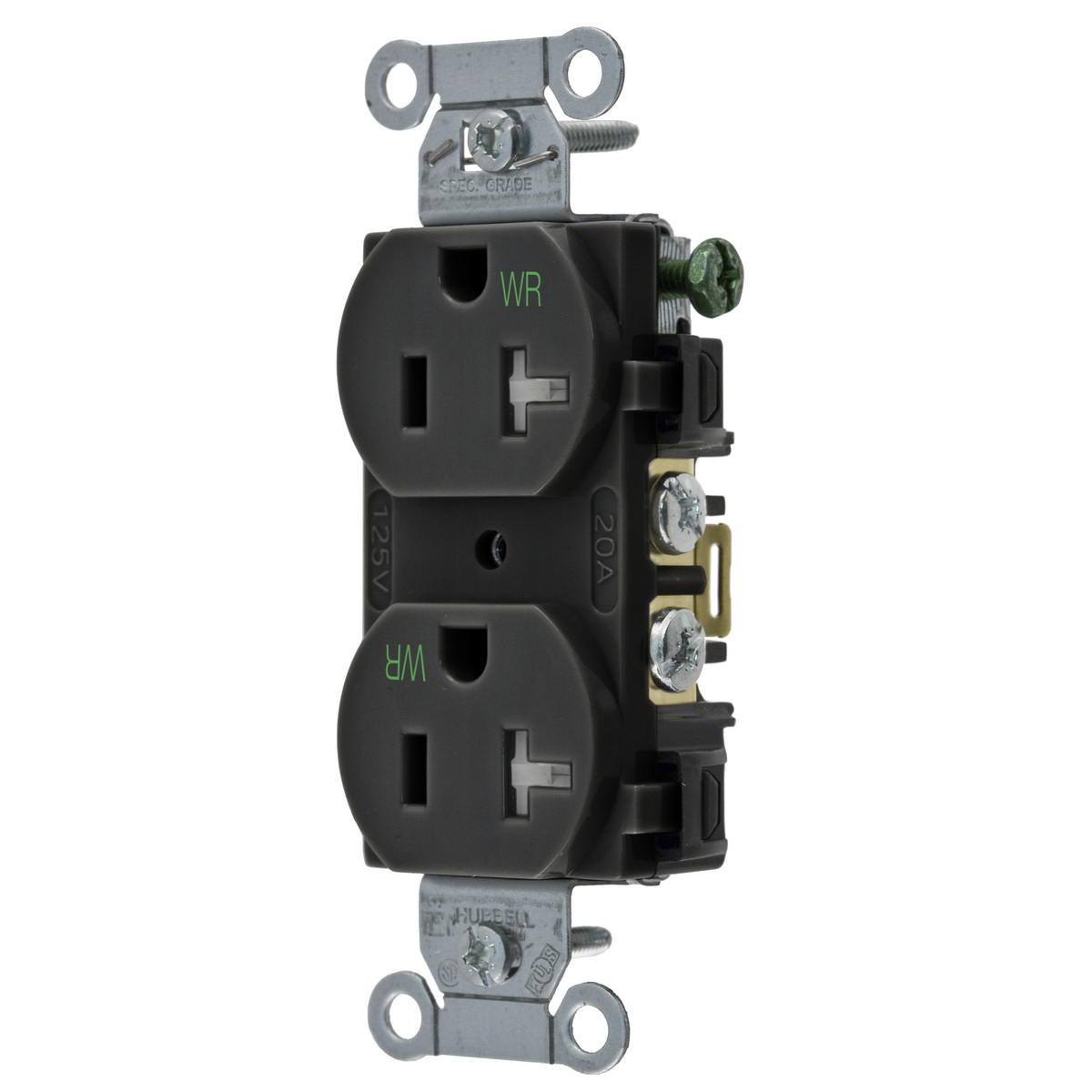

HUBBELL WIRING DEVICE-KELLEMS BR20BLKWRTR Straight Receptacle, Duplex, 20A 125V, Black
Item: AC2AKWModel: BR20BLKWRTRCross Ref: 2HEC9
7 In Stock
Ships within 2 days via
10.00% off
€22.51 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Application Environment | General Purpose |
| Color | Black |
| Connection Orientation | Straight |
| Connectivity | Back And Side Wired |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 20A |
| Dielectric Strength | Withstands 2,000V minimum |
| Face Plate Height | 2.7" |
| Face Plate Width | 1.3" |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded |
| Horsepower Rating | 1 hp |
| Housing Color | Black |
| Housing Material | Nylon |
| Includes | Grounding Staple, Mounting Hardware, Wall Plate Or Weatherproof Cover |
| Includes Mounting Hardware | Yes |
| Material | Nylon |
| Max. Hp | 1 hp |
| Maximum Operating Temperature | 167°F |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 12 AWG |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Rating | NEMA 5-20R |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Outlet Type | Duplex |
| Phase | 1 |
| Polarized | Yes |
| Power Indicator | No |
| Product Datasheet | hubbell-wiring-device-kellems-br20blkwrtr.pdf |
| Receptacle Type | Duplex |
| Special Resistance | Tamper Resistant, Weather Resistant |
| Standards | Csa Certified C22.2, Nema Wd-6, Ul 498 File E2186 |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V |
| Voltage Rating | 125V AC |
| Wattage | 2500 W |
| Weather Resistant | Yes |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Wire Size | 12 AWG to 10 AWG |
| Wiring Method | Back And Side |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 5.84 |
| Ship length (cm) | 20.83 |
| Ship width (cm) | 10.92 |
| HS code | 8536698000 |
| Country of Origin | CN |
Product Details:
- 2-Pole 3-Wire Grounding
Documentation:
Product Variants
| Product | Model | Grade | Receptacle Type | Wire Connection Location | Housing Color | Wire Size | Color | Connectivity | Wiring Method | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CR20 | Federal Specification | Duplex | Side | Brown | 12 AWG to 10 AWG | Brown | Side Wired | Side | €5.94 | |
 |
CR20GRYTR | Federal Specification | Duplex | Side | Gray | 14 AWG to 10 AWG | Gray | Side Wired | Side | €16.42 | |
 |
CR20ITR | Federal Specification | Duplex | Side | Ivory | 14 AWG to 10 AWG | Ivory | Side Wired | Side | €19.15 | |
 |
CR20WHITR | Federal Specification | Duplex | Side | White | 12 AWG to 10 AWG | White | Side Wired | Side | €20.30 | |
 |
BR20TR | Federal Specification | Duplex | Back, Side | Brown | 12 AWG to 10 AWG | Brown | Back And Side Wired | Back And Side | €17.71 | |
 |
BR20GRYTR | Federal Specification | Duplex | Back, Side | Gray | 12 AWG to 10 AWG | Gray | Back And Side Wired | Back And Side | €19.41 | |
 |
BR20ITR | Federal Specification | Duplex | Back, Side | Ivory | 12 AWG to 10 AWG | Ivory | Back And Side Wired | Back And Side | €26.69 |
