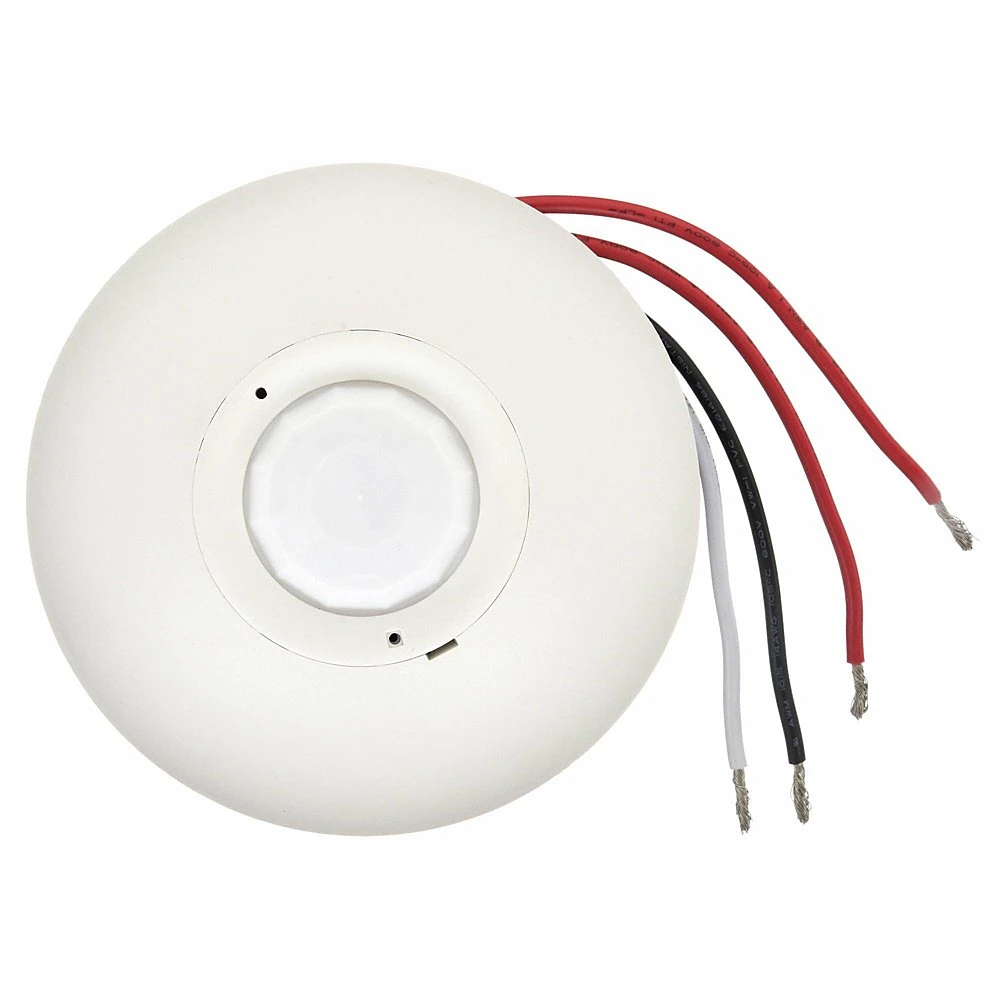

HUBBELL WIRING DEVICE-KELLEMS ATP1500CL Occupancy Sensor, Adaptive Pir, Ceiling Mount, 1500 Square Feet, 120VAC
Item: AF9AMMModel: ATP1500CLCross Ref: 29RW66
7 In Stock
Ships within 2 days via
10.00% off
€281.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Dual Tech. Occupancy Sensor |
| Amps Rating | 20A |
| Color | White |
| Communication Method | Hard Wired |
| Compatible With Brand | Hubbell Wiring |
| Compatible With Manufacturer Model Number | Hubbell 167 |
| Coverage | 1500 sq. ft. |
| Coverage Angle | 360° |
| Diameter | 4 1/2" |
| Frequency | 50/60 Hz |
| Green Certification Or Other Recognition | RoHS.png |
| Height | 3 2/5" |
| Humidity Range | 0% to 95% |
| Includes | Mounting Hardware |
| Indicator | Pir Red LED |
| Installation Location | Ceiling |
| Installation Type | Ceiling |
| Lighting Technology | LED |
| Load Rating @ 120v Ac | 1800 W (Incandescent) |
| Load Rating @ 277v Ac | 2700 W (Incandescent) |
| Manufacturer Warranty | Limited lifetime |
| Material | ABS |
| Maximum Coverage Area | 1500 sq. ft. |
| Maximum Mounting Height | 12 ft. |
| Maximum Operating Temperature | 104°F |
| Maximum Time Delay | 40 min. |
| Minimum Mounting Height | 8 ft. |
| Minimum Operating Temperature | 32°F |
| Minimum Time Delay | 8 min. |
| Minute | 4 min. to 30 min. |
| Mounting Height | 8-12' |
| Mounting Type | Ceiling |
| Operating Temp. | +32°F to +104°F |
| Operating Temp. Range | +32°F to +113°F |
| Operating Voltage | 120-277V AC |
| Overall Diameter | 4.5" |
| Overall Height | 3 2/5" |
| Product Datasheet | hubbell-wiring-device-kellems-atp1500cl.pdf |
| Sensing Technology | Passive InFrared (Pir) |
| Sensitivity | Adaptive 0 to 100% |
| Sensor Operation | Occupancy |
| Sensor Type | Passive Infrared, Ultrasonic |
| Series | H-MOSS Series |
| Standards | Ashrae 90.1, Culus Listed, Ul244A |
| Storage Temp. Range | -20 Deg. F to 150 Deg. F |
| Time Delay | Adaptive |
| Time Delay Adjustment Method | Adaptive |
| Timer | 4 min. to 30 min. |
| Timer Range | 4 min. to 30 min. |
| Viewing Angle | 360° |
| Voltage | 120-277V AC |
| Voltage Type | Line Voltage |
| Watts @ 120v | 1800 W |
| Watts @ 120v | 1800 |
| Watts @ 277v | 2700 W |
| Watts @ 277v | 2700 |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 8.64 |
| Ship length (cm) | 11.68 |
| Ship width (cm) | 12.95 |
| HS code | 8536509065 |
| Country of Origin | CN |
Product Details:
- Special Features: Line Voltage, Mounts Directly to 2-1/8" Deep Octagon Box
Documentation:
Product Variants
| Product | Model | Coverage | Time Delay | Lighting Technology | Operating Voltage | Sensing Technology | Sensor Type | Color | Installation Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ATP1500C | 1500 sq. ft. | Adaptive/Manual | LED | 24V DC | Passive InFrared (Pir) | Passive Infrared | White | Ceiling | €356.63 | |
|
ATP1500CRP | 1500 sq. ft. | Adaptive/Manual | LED | 24V DC | Passive InFrared (Pir) | Passive Infrared | White | Ceiling | €399.17 | |
 |

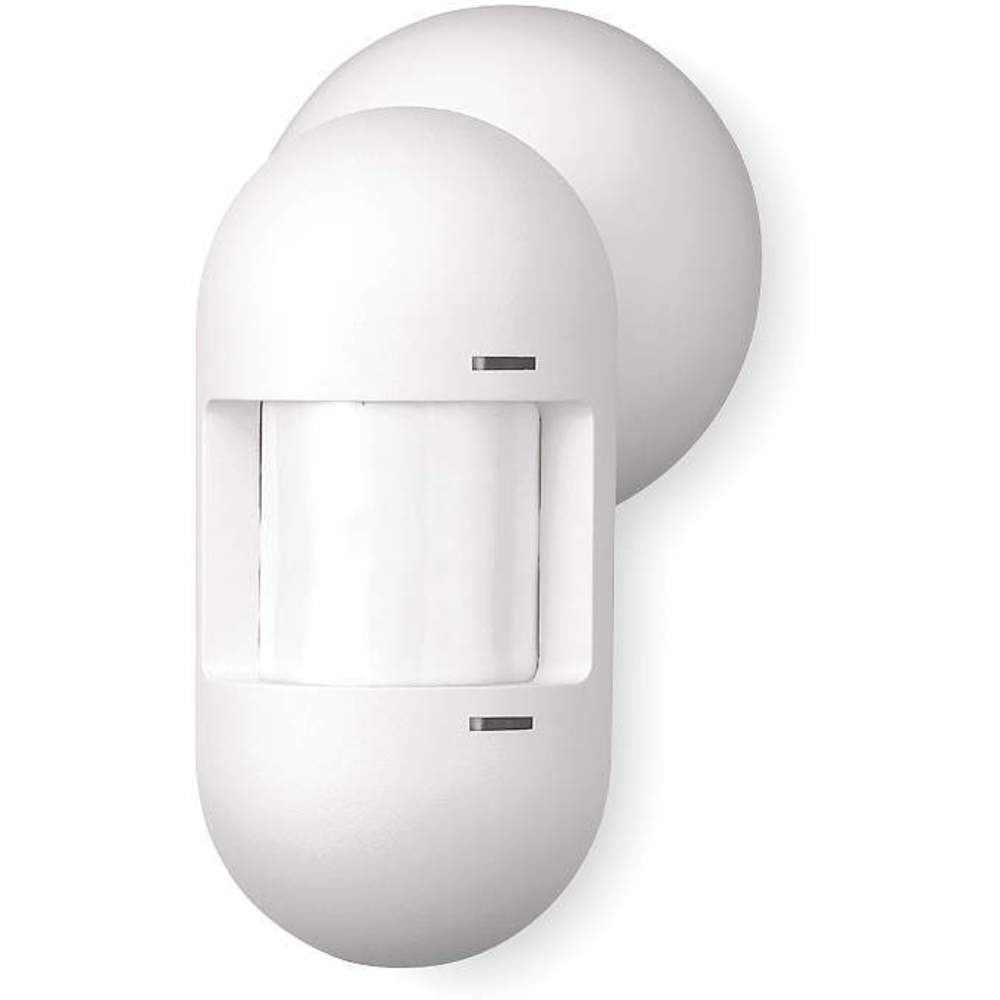

ATP1600WRP | 1600 sq. ft. | Adaptive/Manual | LED | 24V DC | Passive InFrared (Pir) | Passive Infrared | White | Wall | €357.33 | |
 |

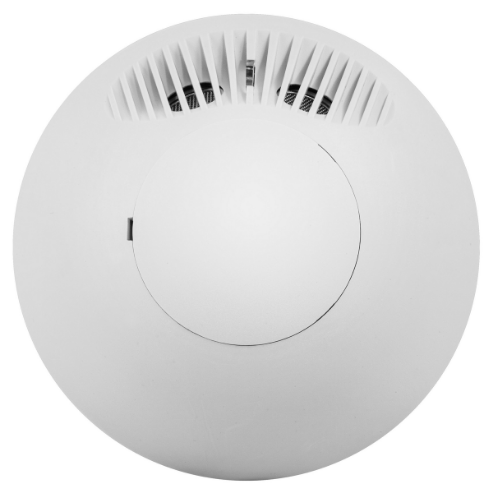

ATU1000CRP | 1000 sq. ft. | Adaptive/Manual | LED | 24V DC | Ultrasonic | Ultrasonic | White | Ceiling | €525.58 | |
 |
ATU2000C | 2000 sq. ft. | Adaptive/Manual | LED | 24V DC | Ultrasonic | Ultrasonic | White | Ceiling | €514.73 | |
 |

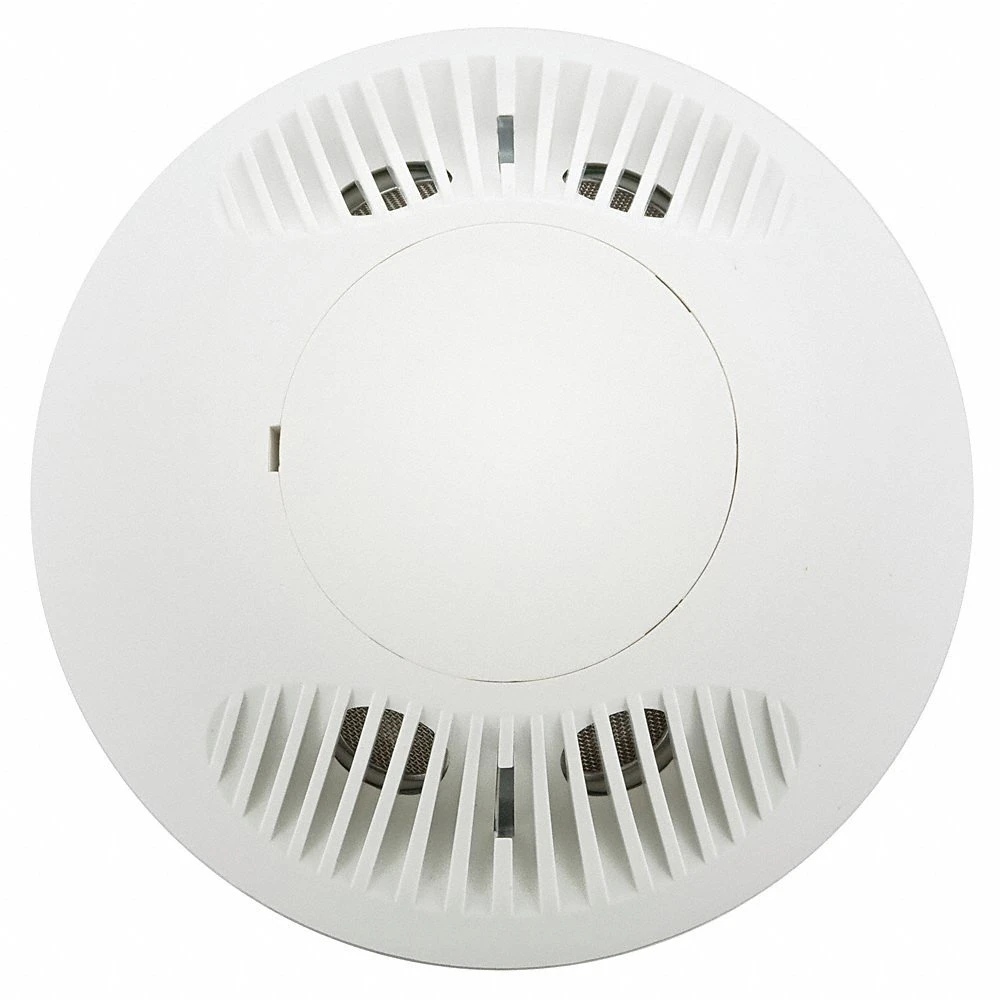

ATU2000CRP | 2000 sq. ft. | Adaptive/Manual | LED | 24V DC | Ultrasonic | Ultrasonic | White | Ceiling | €615.91 | |
 |

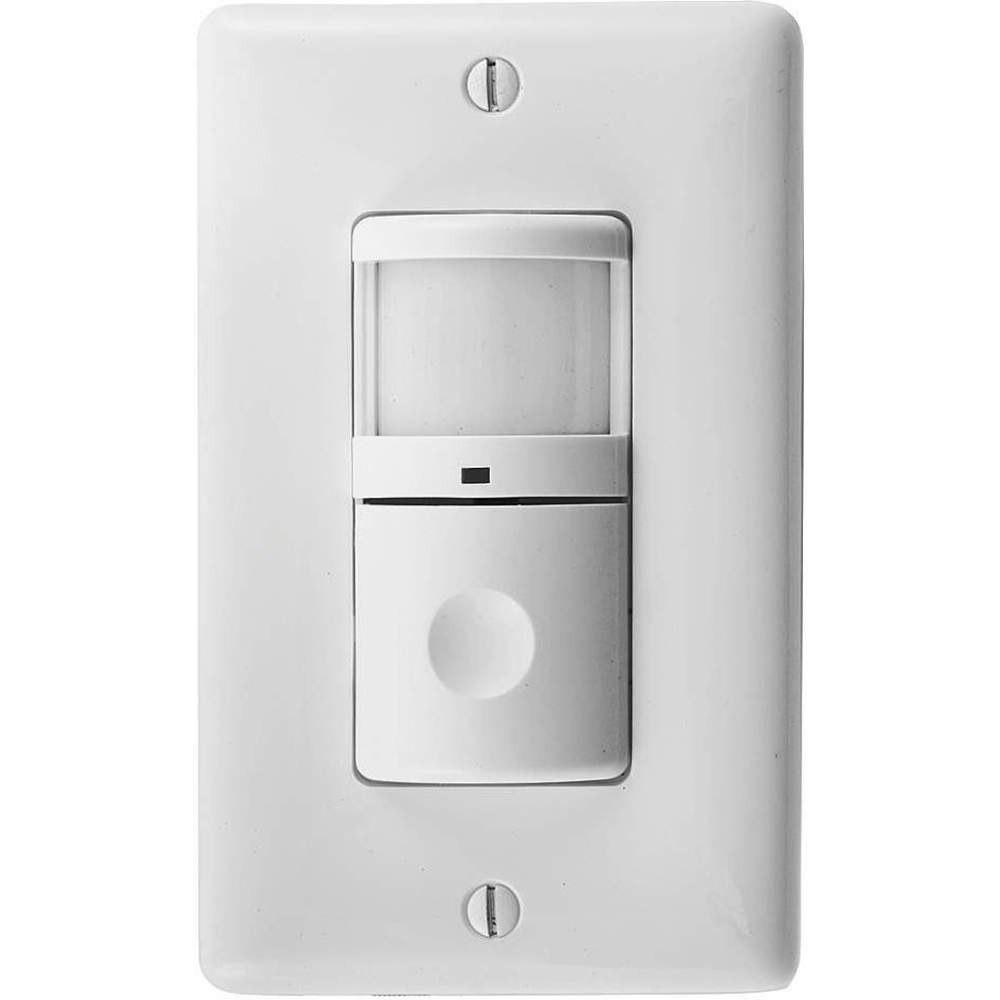

WS2000W | 1200 sq. ft. | Manual | Fluorescent, LED | 120-277V AC | Passive InFrared (Pir) | Passive Infrared | White | Wall | €125.99 |
