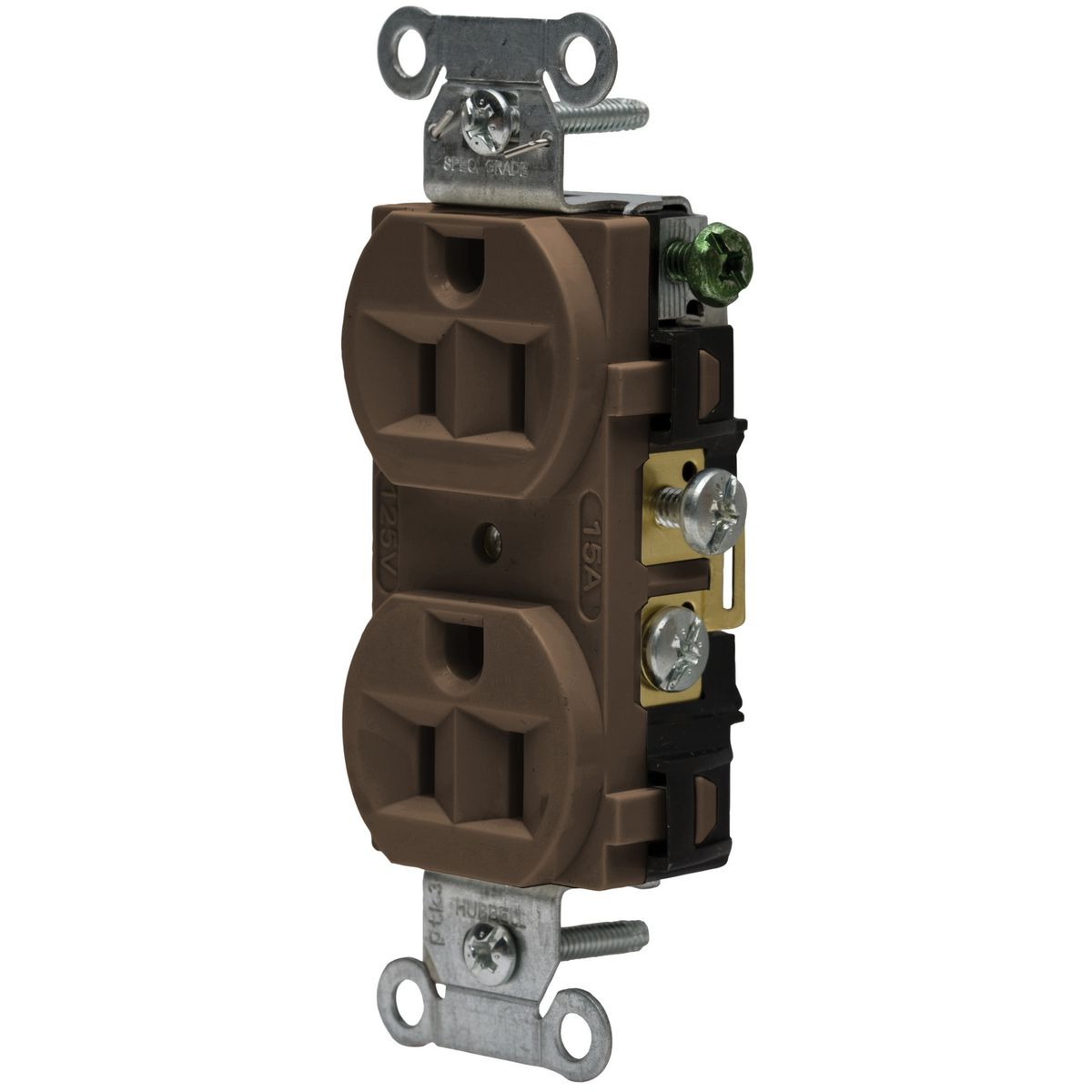

HUBBELL WIRING DEVICE-KELLEMS 5262AB Straight Receptacle, Duplex, 15A 125V, Brown
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Receptacle |
| Amps | 15A |
| Color | Brown |
| Connectivity | Back And Side Wired |
| Material | Composite, Thermoplastic |
| Nema Rating | NEMA 5-15R |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | 1 |
| Product Datasheet | hubbell-wiring-device-kellems-5262ab.pdf |
| Temp. Rating | Maximum continuous 75 Degree C; minimum -40 Degree C |
| Voltage | 125V |
| Wattage | 1875 W |
| Wire Size | 14 AWG to 10 AWG |
Shipping Info:
| Country of Origin | US |
Product Details:
- 2-Pole 3-Wire Grounding
Documentation:
Product Variants
| Product | Model | Grade | Housing Color | Wire Size | Color | Nema Rating | Wattage | Amps | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
IG5352 | Federal Specification | Orange | 12 AWG to 10 AWG | Orange | NEMA 5-20R | 2500 W | 20A | Nylon | €32.51 | |
 |
IG5352GY | Federal Specification | Gray | 12 AWG to 10 AWG | Gray | NEMA 5-20R | 2500 W | 20A | Nylon | €31.78 | |
 |
IG5352I | Federal Specification | Ivory | 12 AWG to 10 AWG | Ivory | NEMA 5-20R | 2500 W | 20A | Nylon | €31.78 | |
 |
IG5352LA | Grade Industrial | - | 12 AWG to 10 AWG | Almond | NEMA 5-20R | 2500 W | 20A | Nylon | €28.27 | |
 |
IG5352W | Federal Specification | White | 12 AWG to 10 AWG | White | NEMA 5-20R | 2500 W | 20A | Nylon | €29.86 | |
 |
CR5252IGW | - | - | 14 AWG to 10 AWG | White | NEMA 5-15R | 1875 W | 15A | Nylon | €26.96 | |
 |
5252ABLK | - | - | 14 AWG to 10 AWG | Black | NEMA 5-15R | 1875 W | 15A | Composite, Thermoplastic | €11.34 |
