HUBBELL WIRING DEVICE-KELLEMS IG5352 Straight Receptacle, Duplex, 20A 125V, Orange, Back And Side Wired
Item: AD7PJYModel: IG5352Cross Ref: 4FTY3
7 In Stock
Ships within 2 days via
10.00% off
€29.26 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 20A |
| Application Environment | Industrial Environments |
| Color | Orange |
| Connection Orientation | Straight |
| Connectivity | Back And Side Wired Screw Terminals |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 20A |
| Dielectric Strength | Withstands 2,000V minimum |
| Duty | Heavy Duty |
| Face Plate Height | 2.7" |
| Face Plate Width | 1.3" |
| Face Type | Smooth |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Isolated Ground |
| Height | 1.07" |
| Horsepower Rating | 1 hp |
| Housing Color | Orange |
| Housing Material | Nylon |
| Includes | Grounding Clip, Mounting Hardware |
| Includes Mounting Hardware | Yes |
| Length | 3 7/25" |
| Material | Nylon |
| Maximum Operating Temperature | 167°F |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 12 AWG |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Rating | NEMA 5-20R |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Outlet Type | Duplex |
| Overall Depth | 1.1" |
| Phase | 1 |
| Polarized | Yes |
| Prod. Description | Smooth Face |
| Product Datasheet | hubbell-wiring-device-kellems-ig5352.pdf |
| Receptacle Type | Duplex |
| Standards | Csa Certified C22.2 No. 42 File 285, Federal Specification W-C-596, Nema Wd-6, Ul 498 File E2186 |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V |
| Voltage Rating | 125V AC |
| Wattage | 2500 W |
| Weather Resistant | No |
| Width | 1.57" |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Wire Size | 12 AWG to 10 AWG |
| Wiring Method | Back And Side |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.72 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 3.99 |
| HS code | 8536698000 |
| Country of Origin | CN |
Product Details:
- 2-Pole 3-Wire Grounding
Documentation:
Product Variants
| Product | Model | Grade | Housing Color | Wire Size | Color | Nema Rating | Wattage | Amps | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
IG5352GY | Federal Specification | Gray | 12 AWG to 10 AWG | Gray | NEMA 5-20R | 2500 W | 20A | Nylon | €31.78 | |
 |
IG5352I | Federal Specification | Ivory | 12 AWG to 10 AWG | Ivory | NEMA 5-20R | 2500 W | 20A | Nylon | €31.78 | |
 |
IG5352LA | Grade Industrial | - | 12 AWG to 10 AWG | Almond | NEMA 5-20R | 2500 W | 20A | Nylon | €28.27 | |
 |
IG5352W | Federal Specification | White | 12 AWG to 10 AWG | White | NEMA 5-20R | 2500 W | 20A | Nylon | €29.86 | |
 |
CR5252IGW | - | - | 14 AWG to 10 AWG | White | NEMA 5-15R | 1875 W | 15A | Nylon | €26.96 | |
 |
5252ABLK | - | - | 14 AWG to 10 AWG | Black | NEMA 5-15R | 1875 W | 15A | Composite, Thermoplastic | €11.34 | |
 |

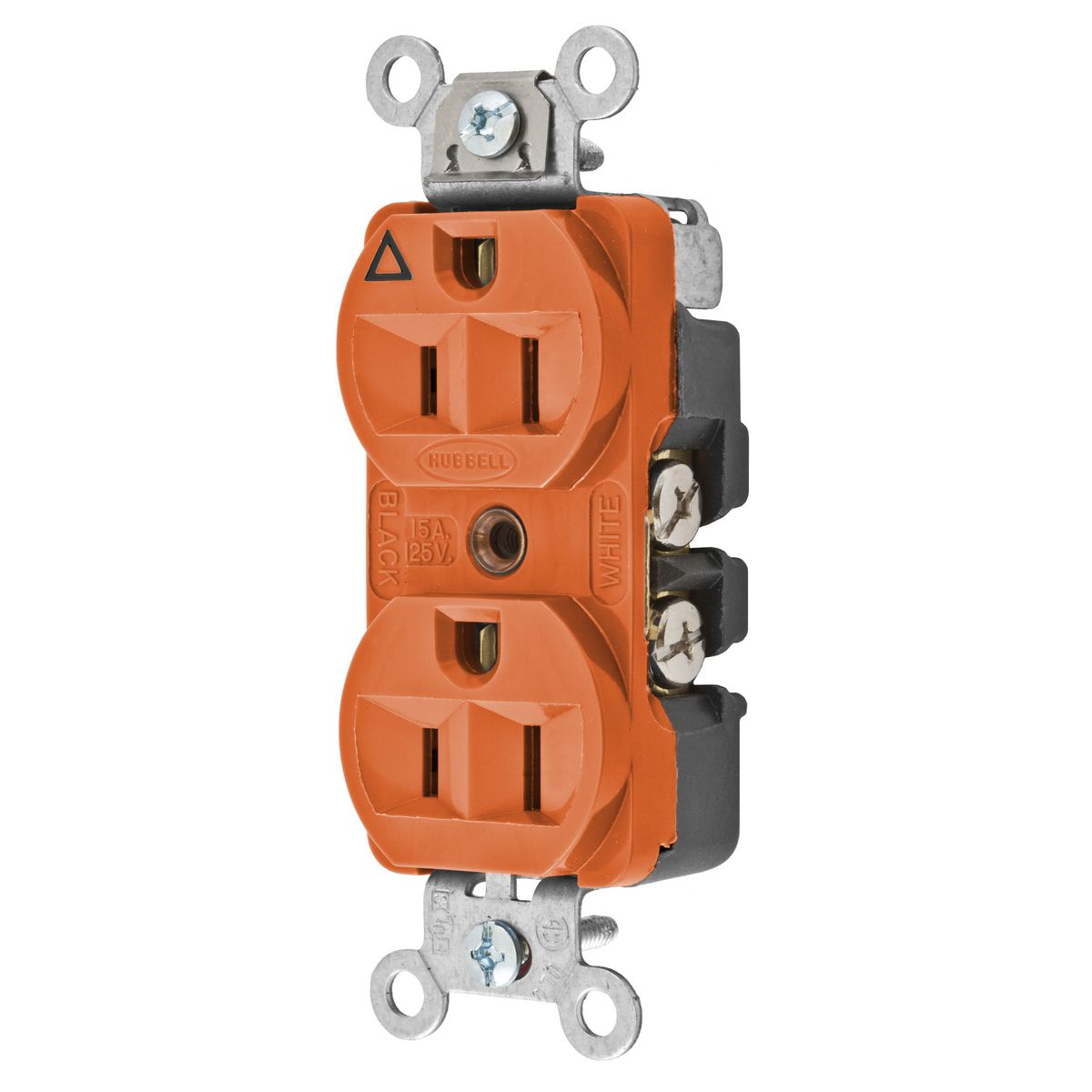

CR5252IG | - | - | 14 AWG to 10 AWG | Orange | NEMA 5-15R | 1875 W | 15A | Nylon | €26.96 |
