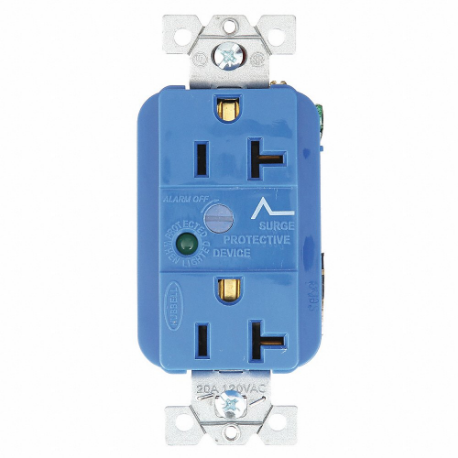

HUBBELL - BRYANT SP53A Receptacle, Duplex, 5-20R, 20 A, 125V AC, Blue, 2 Poles, Screw Terminals, Std Resist
Item: CP8XVYModel: SP53ACross Ref: 49YZ34
7 In Stock
Ships within 2 days via
13.00% off
€48.79 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 20A |
| Body Material | Composite |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Depth | 4 1/25" |
| Face Plate Height | 2 4/5" |
| Face Plate Width | 1 18/25" |
| Gfci | No |
| Grounding | Grounded |
| Housing Color | Blue |
| Hp | 1 hp |
| Included | Mounting Hardware |
| Max. Operating Temp. | 140°F |
| Min. Operating Temp. | 32°F |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Receptacle Configuration | NEMA 5-20R |
| No. Of Gangs | 1 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Polarized | Yes |
| Product Datasheet | hubbell-bryant-sp53a.pdf |
| Receptacle Type | Duplex |
| Surge Protection | Yes |
| Voltage | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminal |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 2.54 |
